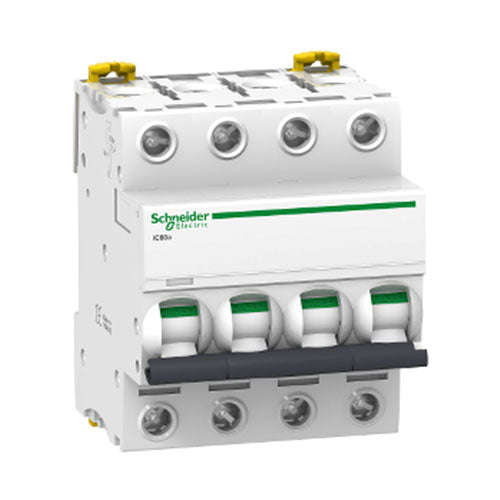

Schneider Electric Acti 9 iC60a DIN Mini Circuit Breaker C-Curve 4P
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
2680818
Bob Shop ID:
603927388
Product Features
- Over-voltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstand voltage and insulation voltage)
- High performance limitation
- Fast closing independent of the speed of actuation of the toggle
- Remote indication, open/close/tripped, by optional auxiliary contacts
- Top or bottom electrical feeding
- Class 2 front face
- Promises absolute protection against electric shocks
- iC60a circuit breakers are multi-standard circuit breakers which combine the following functions;
- Circuit protection against short-circuit currents
- Circuit protection against overload currents
- Suitable for industrial isolation according to IEC/EN 60947-2, standard
- Available from 2A to 63A
Technical Specifications
| Colour: | White |
| Material: | Plastic |
| Handle Colour: | Black |
| Mounting Type: | DIN Rail |
| Poles: | 4 |
| Curve: | C-Curve |
| Trip Unit Technology: | Thermal Magnetic |
| Current: | Available from 2A to 63A |
| kA Rating: | 6kA |
| Voltage: | 220/415V |
| Width: | 72mm |
Technical Documents
| Technical Document: | Download |
