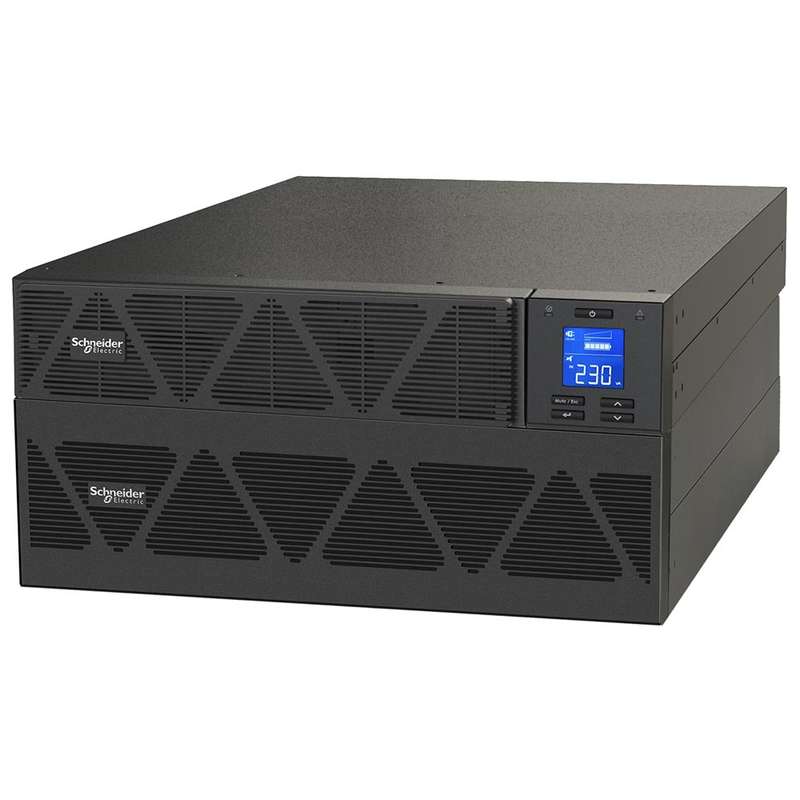

Schneider Electric Easy UPS 1Ph SRVS 10000 VA with Rail Kit and Battery Pack
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
SRVS10KRILRK
Bob Shop ID
603927421
Product Features
- Double conversion online UPS Type
- Front mounting location
- Rack mountable
- Preferable to mount lower in a rack
- Horizontal mounting position
- Is USB Compatible
- Surge energy rate of 600J
- Multifunction LCD status and control console
- Houses an alarm notifying when on battery and a distinctive low battery alarm, or a continuous tone for an overload alarm
- Internal bypass (automatic and manual)
- 94 % Efficiency at full load
- 2 Years Repair or Replace
Suggested / Optional Accessories
- Easy UPS 1Ph on-line SNMP card - APVS9601
- Easy UPS 1Ph on-line dry contact card - VGLS9901I
- Easy UPS 1Ph on-line SRVS RM 240 V battery pack for 44357 kVA RM ext runtime model - SRVS240RLBP-9A

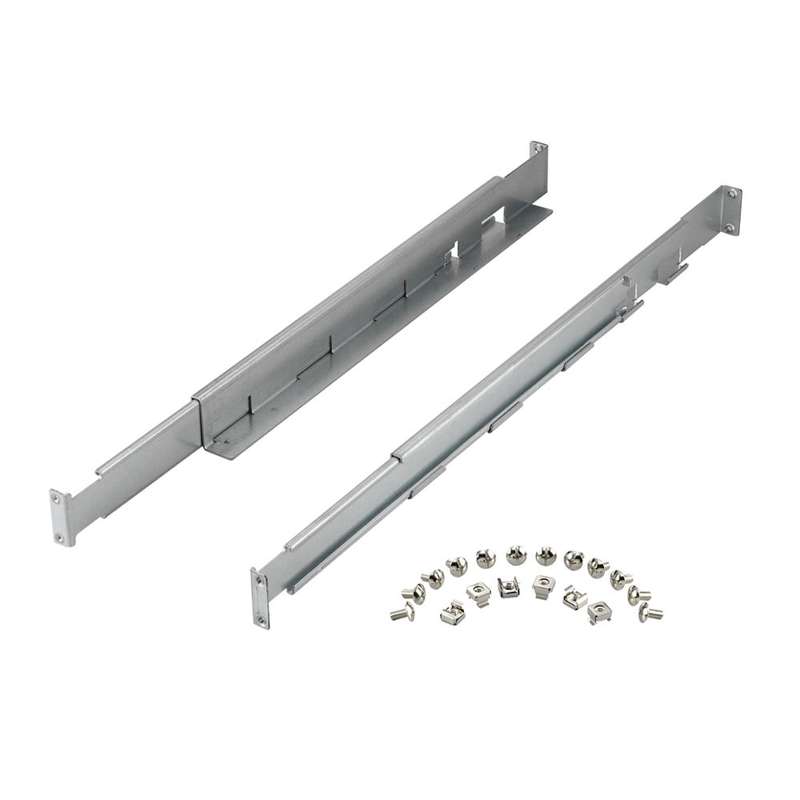

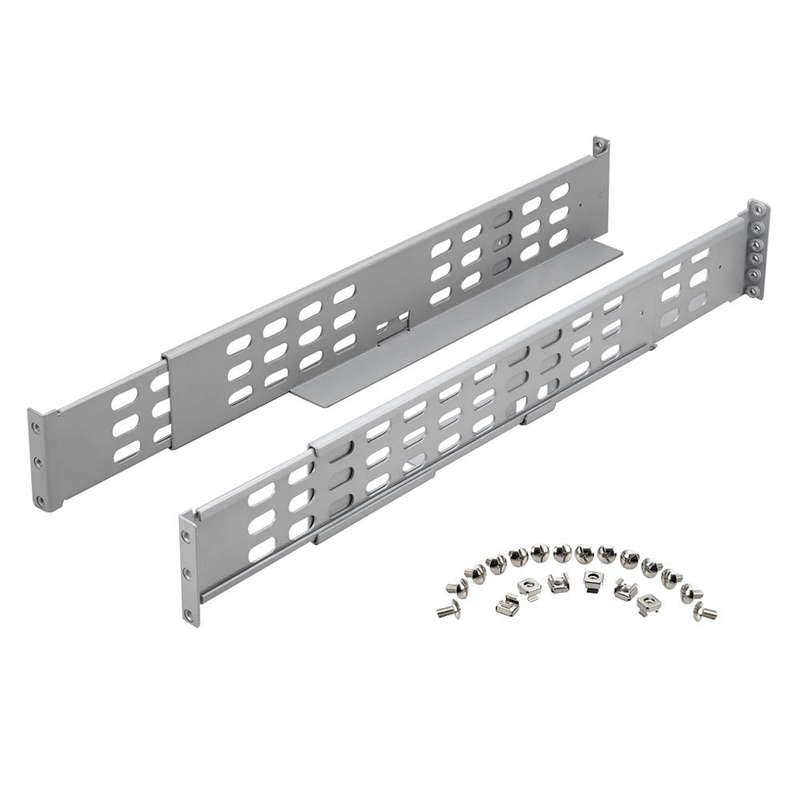

- Compatible with Easy UPS 1Ph on-line rail kit 700 mm - SRVSRK1
What's in the Box
- Basic UPS signalling RS-232 cable
- CD with software
- 1 x DC cable
- Rack mounting brackets
- User manual
- USB cable
Safety Features
- CE Product Certification
- Conformance Standards: EN/IEC 62040-1 and EN/IEC 62040-2
- Is Mercury Free
Technical Specifications
| Colour: | Black |
| Finish: | Semi-Matt |
| Battery Type: | Lead-Acid |
| Battery Voltage: | 240V |
| Battery Charge Time: | 3 hours |
| Battery Life: | 3 - 5 years |
| Battery Charge Power: | 502W rated |
| Display and Signals: | Multifunction LCD status and control console |
| Waveform: | Sine Wave |
| Noise Level: | 58 dBA |
| Connection Type: | Input and Output: Hard wire 3-wire (H N + E) 1 |
| Rated Power: | 10 000V / 10 000VA |
| Input Voltage: | 230V |
| Output Voltage: | 230V |
| Input Voltage Range: | 220 - 230V |
| Output Frequency: | 50/60 Hz +/- 3 Hz sync to mains |
| Height: | 220mm |
| Width: | 438mm |
| Length: | 615mm |
| Operating Temperature: | 0 - 40 C |
| IP Rating: | IP20 |
| Weight: | 78kg |
Technical Documents
| Technical Document: | Download |
