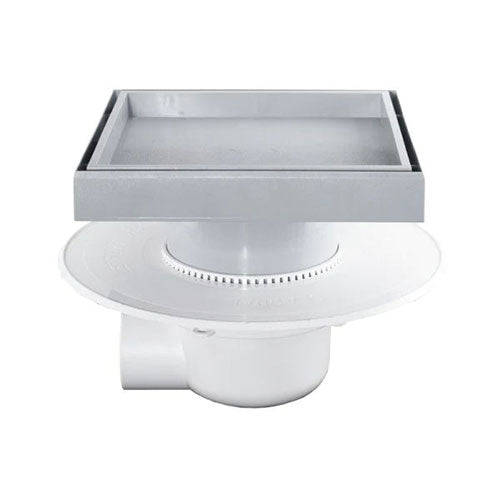

Seaqual Tile Grate Lolo Drain

With cement technology improving, slabs are becoming thinner and stronger. To keep up with these trends, Seaqual has designed the LoLo Drain - a lower profile version of our tried and tested WetFloor Drain. Each component has been reduced in height to make it easier to install in thin slabs. The LoLo Drain consists of a shortened F-Box with 50mm side outlet and a reduced water/odor seal. Instead of 75mm, the Well Trap is now 50mm. It is provided with our durable large white flange which accepts cement, bitumen and paint on waterproofing. M-serts housing the grates can also be reduced to desired height, while still maintaining their square adjustable feature.

Product Features

• Agrément SA certified for use on one-pipe and two-pipe plumbing systems.
• Can be installed with ease in thin slabs.
• Maintains a high plumbing standard.
• Durable and strong.
• 100% Recyclable.
• Damaged components are easy and cost-effective to replace.
• Provided with protective dust covers for use during installation.
• Square shape achieves an improved and easier to lay tiled finish.
• High flow rate up to 48L/min.
• Provide LoLo Drain 50mm Side Outlet in finish of choice
• Fit 50mm S/O F-Box to position shown on drawings
• Use Protective Dust Cover provided on F-Box
• Fit Flange and provide waterproofing
• Use 2nd Protective Dust Cover provided on Flange
• Fit Spigot and Grate and set Grate to height of finished floor (FFL)
• Fit 50mm deep Water/Odour Trap
• Provide tiling or other floor finish flush with Grate
• NOTE: If the Tile Grate selected, cut tiles to size and cement into Tile Pan provided
• Certified 'fit-for-use' on single- and dual-pipe plumbing systems
• Min 50mm Well Trap provided
• 5-Year Warranty against manufacturer's defects.

Technical Specifications
