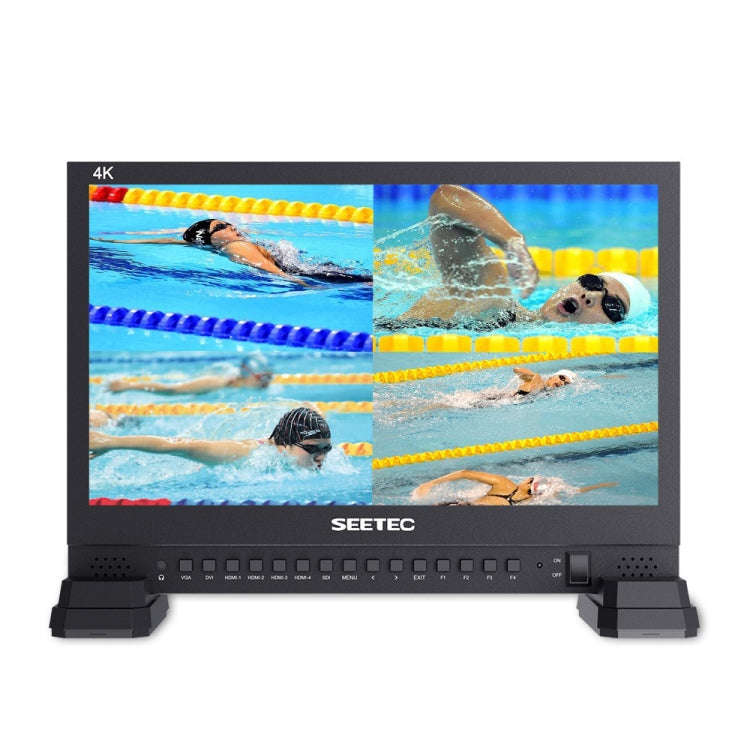

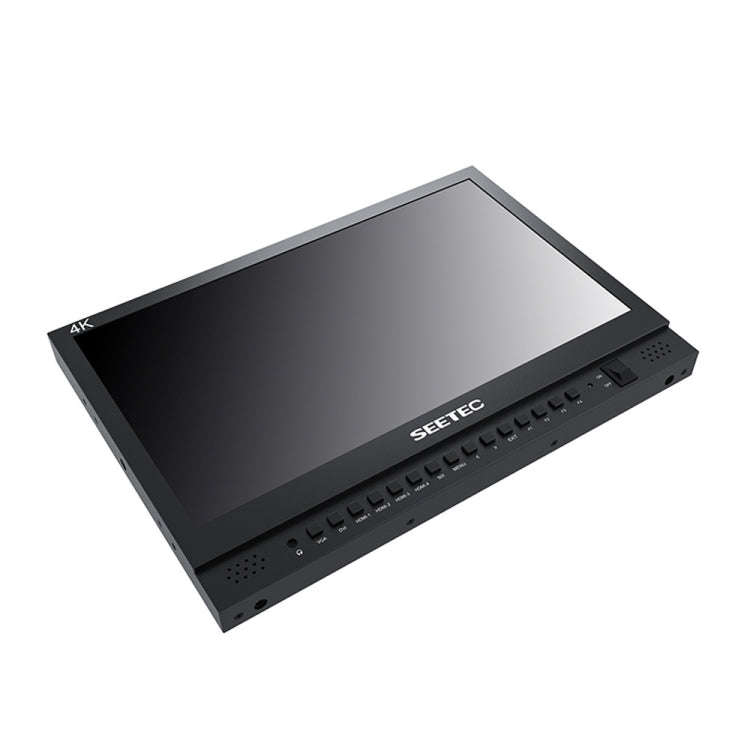

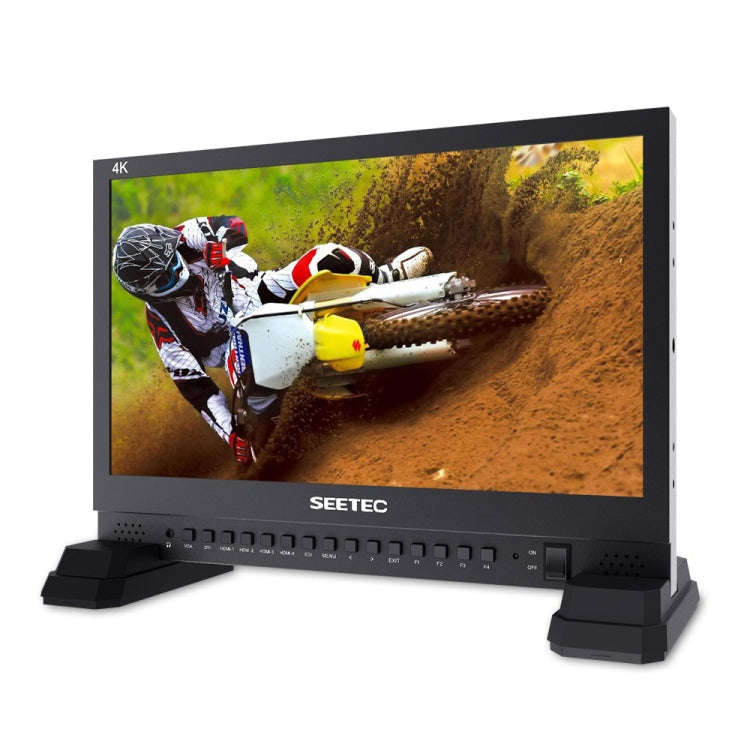

SEETEC 4K156-9HSD 3840x2160 300 nits 15.6 inch IPS Screen HDMI 4K 3G-SDI Four Screen Split Displa...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
EDA0018245
Bob Shop ID
614237799
Panel characteristics
1. Screen size: 15.6 inch IPS
2. Color: 16.7M colors (8-bits)
3. Resolution: 38402160 pixels
4. Dot pitch: 0.0897 x 0.0897 mm
5. Screen ratio: 16:9
6. Brightness: 300cd/m2
7. Contrast ratio: 800:1
8. Viewing angle: 85 degrees/85 degrees (L/R) 85 degrees/85 degrees (U/D)

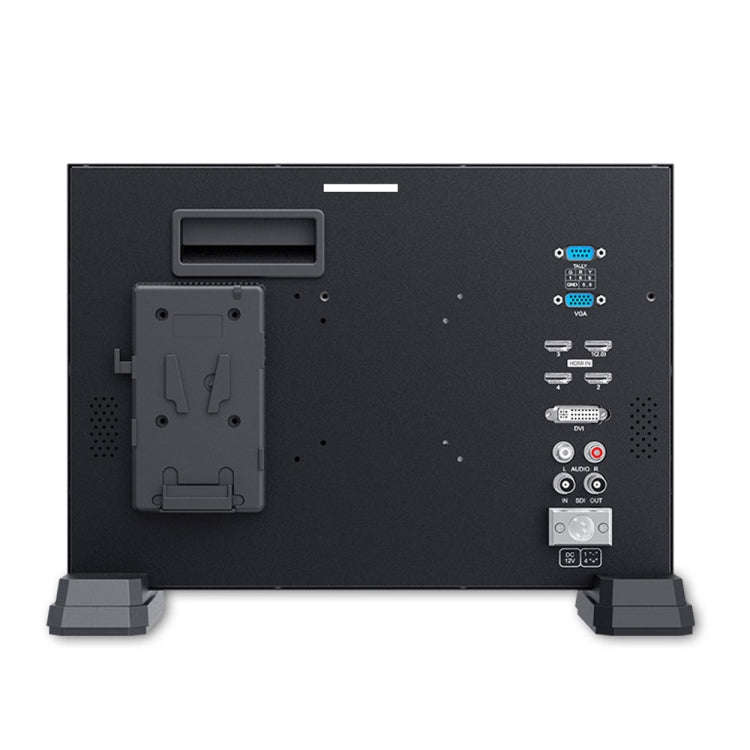

Input:
1. 4x HDMI: HDMI (HDMI2.0x1 supports 4K 60HZ; HDMI1.4x3 supports 4K 30HZ)
2. 1x BNC: SDI
3. 1x DVI: DVI
4. 1x VGA: VGA
5. 2x RCA: Audio(L/R)
6. 1x DB-9: Tally
Output:
1. 1x BNC: SDI
Audio:
1. Audio output: headphone jack, built-in speaker
SDI support format:
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI support format:
HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)
HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
Other specifications:
1. Input voltage: DC12-24V (XLR)
2. Power consumption: greater than or equal to 18W
3. Working temperature: -10-50 degrees Celsius
4. Storage temperature: -20-60 degrees Celsius
5. Stand-alone size: 372Lx262Hx28.5D (without bracket)
6. Stand-alone weight: 2.03kg (without bracket)
Feature:
1. Wide viewing angle, 4K resolution (3840 x 2160), rich color gradation
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) input and 3G-SDI loop out
3. Product features:
-Screen split setting (1P, 2P LR, 2P TB, 2P PIP, 4P)
-Professional assisted focus
-Pseudo-color
-Display rotation (0 degrees, 90 degrees, 180 degrees, 270 degrees)
-Monochrome display (red, green, blue, gray)
-The picture is still
-Image enlargement
-peer to peer
-Center mark
-Box mark (percent 80, percent 85, percent 90, percent 93, percent 96, 2.35:1)
-Line color (red, green, blue, white)
4. Front 3.5mm headphone jack, built-in speaker
5. 3-color tally indicator (red, green, yellow)
6. The monitor supports Ultra HD 3840x2160 resolution, with unparalleled clarity in movie shooting and display.
7. It has a metal body design, a built-in control panel, and is equipped with four-screen split, auxiliary focus, monochrome display, image still, image zoom, image flip, center mark, safety frame mark, point-to-point, color temperature and other wonderful functions, so You can easily check whether all camera positions are accurately focused and make sure that the colors are consistent.
8. The display screen has an ultra-wide 170-degree viewing angle, even if multiple people are monitoring at the same time, it can ensure that everyone can easily get the high-quality picture brought by 4K resolution. In addition, the ultra-high contrast can ensure the vivid color of the image, allowing you to enjoy a more realistic and delicate picture.
9. When you are busy at the shooting scene, what you need is equipment that can be easily controlled, such as quickly enabling auxiliary shooting functions and selecting input signals. These 4K156-9HSD have been carefully considered for you. Its high-quality buttons are sturdy and durable, and can withstand years of repeated use, allowing you to quickly obtain all high-tech professional broadcast controls during the production process.
10. When making a multi-camera live program, viewing more video sources at the same time will greatly improve efficiency. The 4K156-9HSD is equipped with 4 4K HDMI inputs, 1 SDI input loop out, DVI, VGA, and supports four-screen, dual-screen, and single-screen monitoring functions, allowing you to get a good multi-camera monitoring solution anytime, anywhere!
11. The position and size of the live video can be adjusted in real time. You can adjust brightness, contrast, hue, saturation, sharpness, and backlight to create professional picture-in-picture images. You can use the picture-in-picture effect to superimpose commentators on the screen when broadcasting sports matches, training videos, interviews, and even game matches.
Standard configuration:
1. 1.5A power adapter x1
2. V-shaped battery back button x1
3. Mini HDMI cable x1
4. Tally adapter kit x1
5. Horseshoe foot pad x1
6. Manual x1
