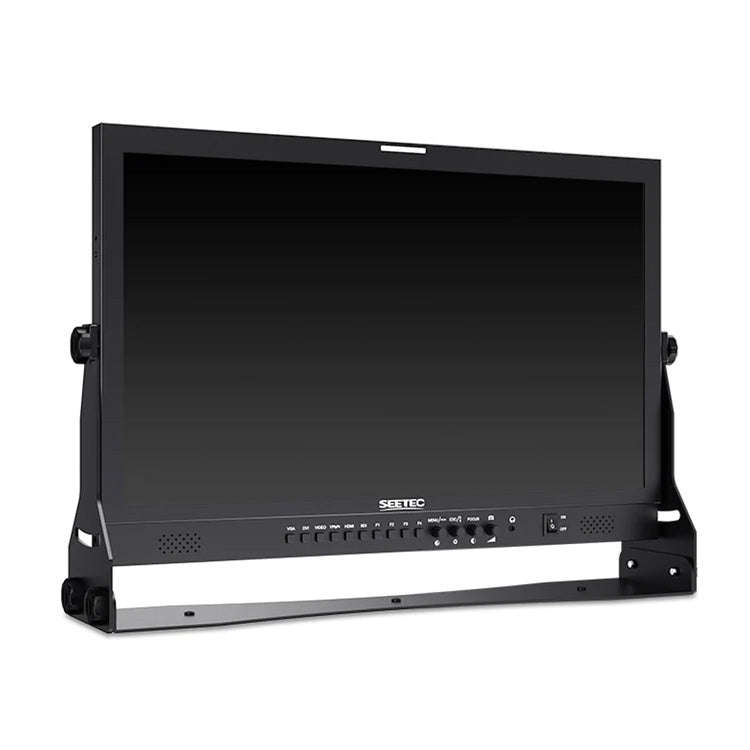

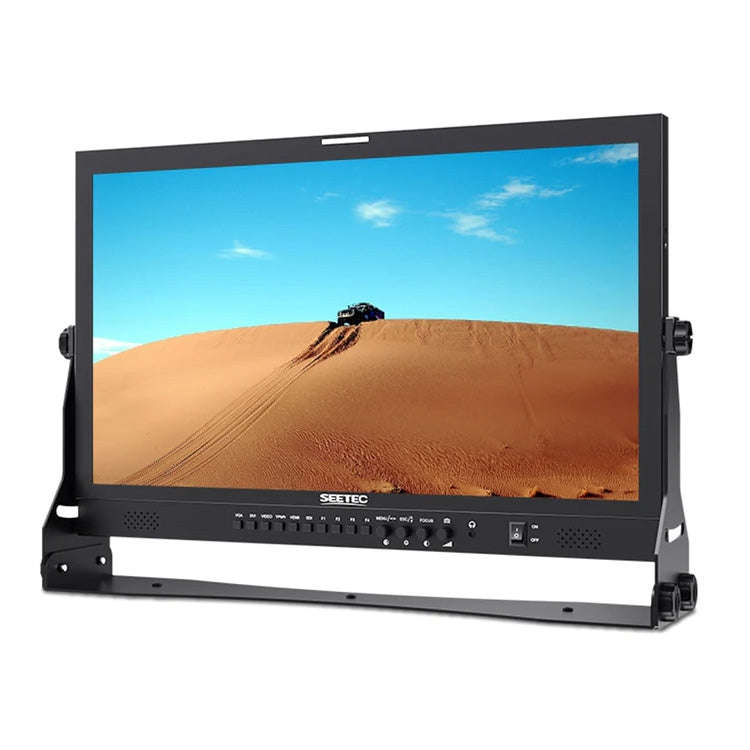

SEETEC P238-9HSD 23.8 inch 1920x1080 IPS Full HD 3G-SDI 4K HDMI Pro Broadcast LCD Monitor(EU Plug)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
EDA005656401D
Bob Shop ID
613625468
Features:

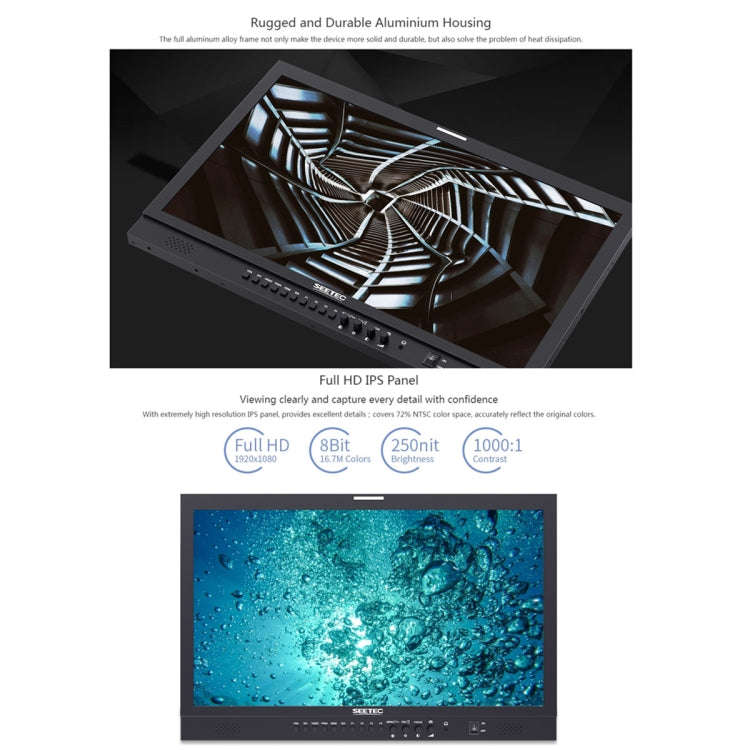

1. Wide view angle, Full HD 1920x1080, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs

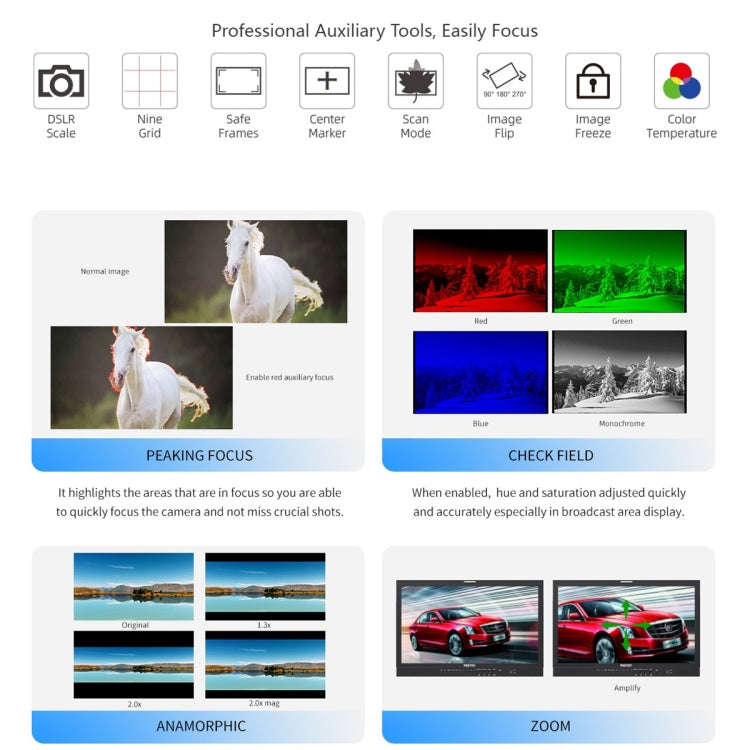

3. Special Features:
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- Check Field (Red, Green, Blue, Mono)
- Camera Mode
- Pixel to Pixel
- Center Marker
- Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (Horizontal, Vertical, Hor&Ver)
- Image Freeze
- Zoom All
- U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker

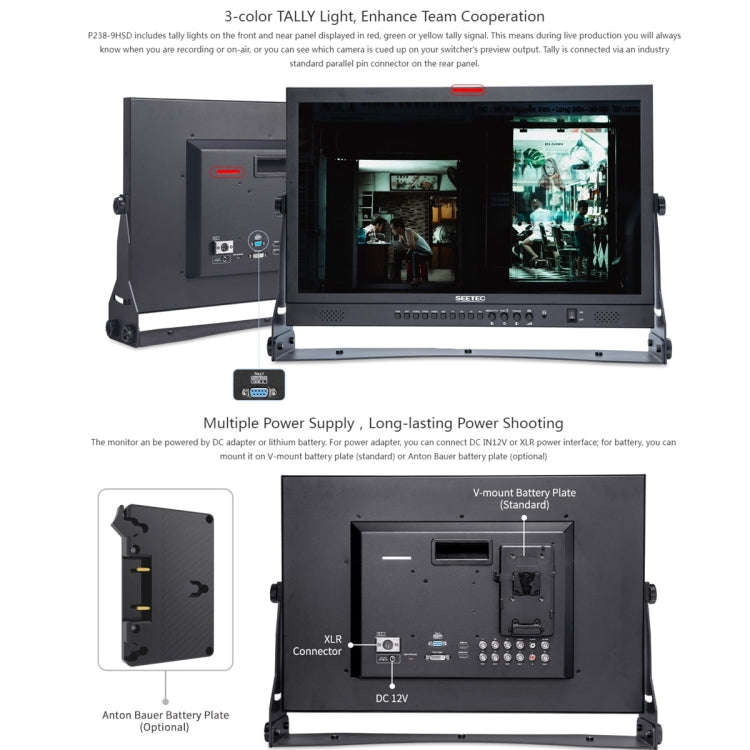

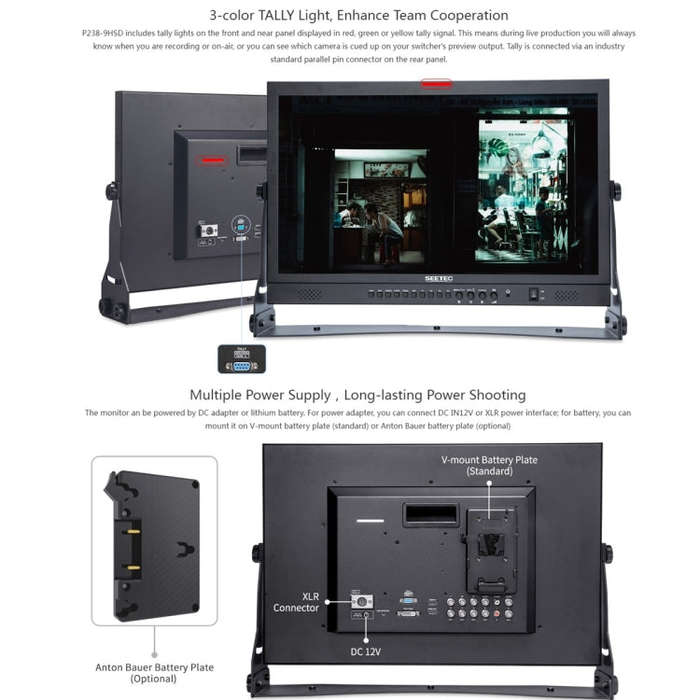

5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR
Specifications:
Display Spec.
1. Model: P238-9HSD
2. Screen Size: 23.8 inch IPS
3. Color Depth: 16.7M (8-bit)
4. Resolution: 1920x1080 pixels
5. Pixel Pitch: 0.2745 (H) x 0.2745 (V)mm
6. Aspect Ratio: 16:9
7. Brightness: 250cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED

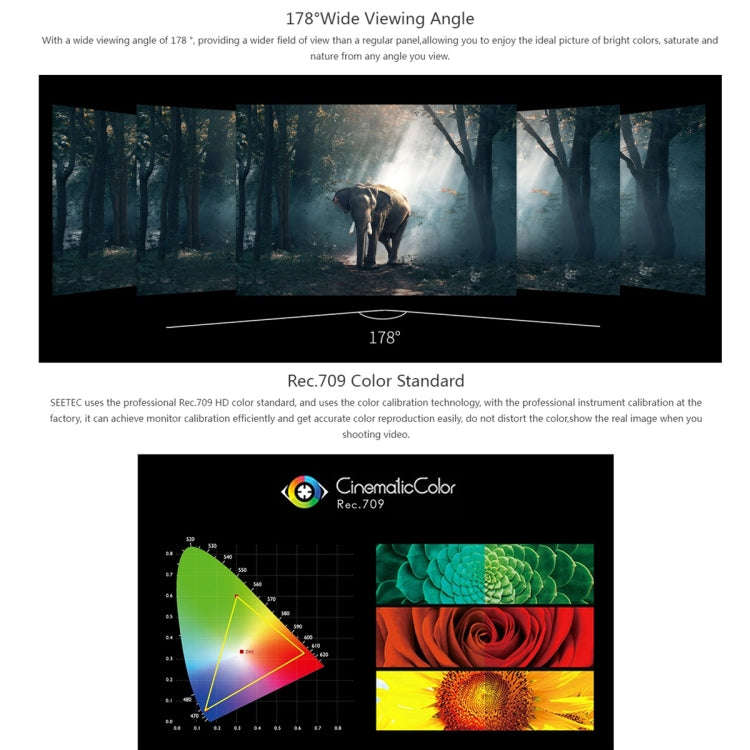

10. Viewing Angle: 89degrees/89degrees/(L/R); 89degrees//89degrees/(U/D)

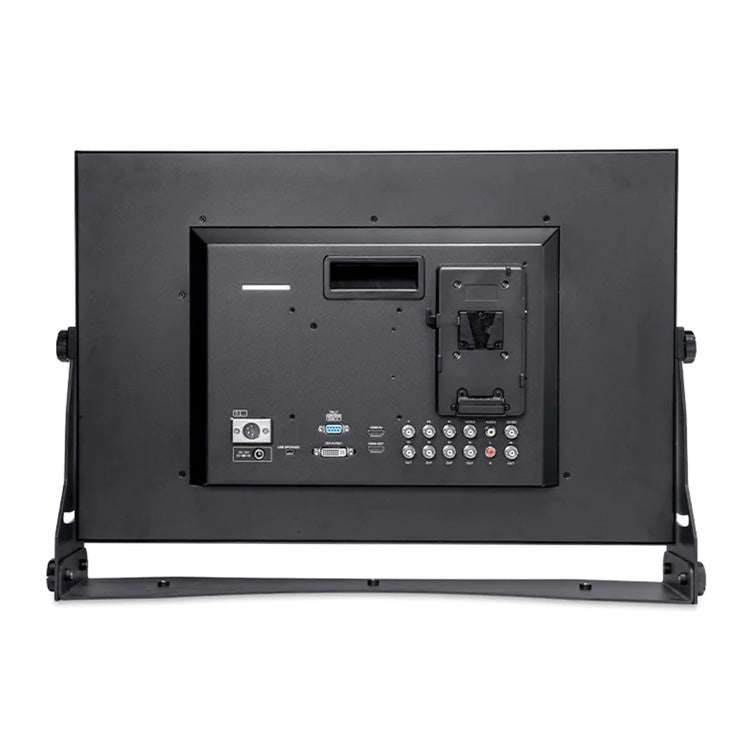

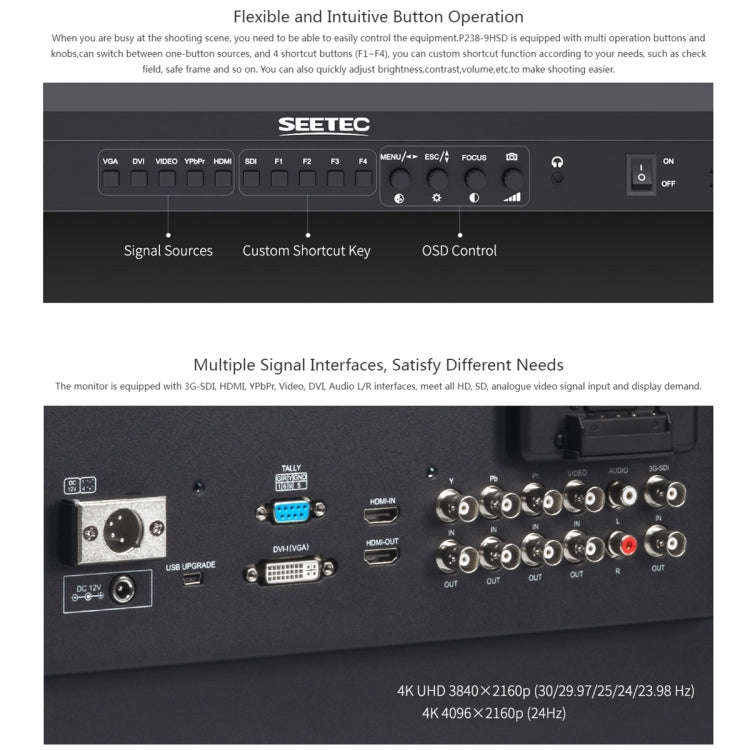

Input
- 1 x BNC: 3G-SDI
- 1 x HDMI: HDMI
- 3 x BNC: YPbPr
- 1 x DVI-I: DVI-I
- 1 x BNC: Video
- 2 x RCA: Audio(L/R)
Output
- 1 x BNC: 3G-SDI
- 1 x HDMI: HDMI
- 3 x BNC: YPbPr
- 1 x BNC: Video
Audio
- Audio: Stereo Headphone, Speaker
SDI Support Format
- 480i/576i
- 720p(60/59.94/50/30/29/25/24/23.98)
- 1080i(60/59.94/50)
- 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
Standard Accessories:
1. Mini HDMI Cable x 1
2. V Battery Plate (default to mount on device) x 1
3. 3A Power Adapter x 1
4. Tally Kit x 1

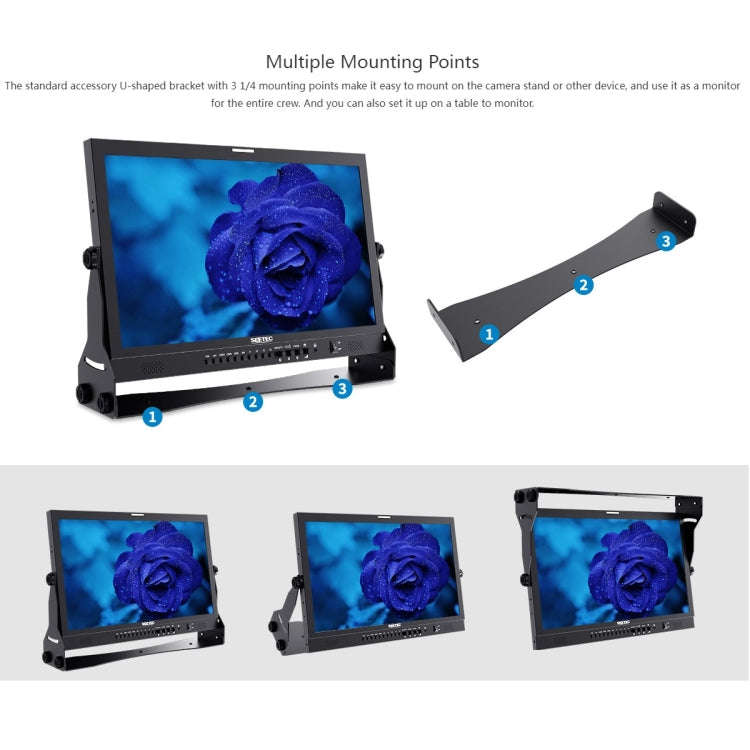

5. U-shape Bracket x 1
6. Operation Manual x 1
