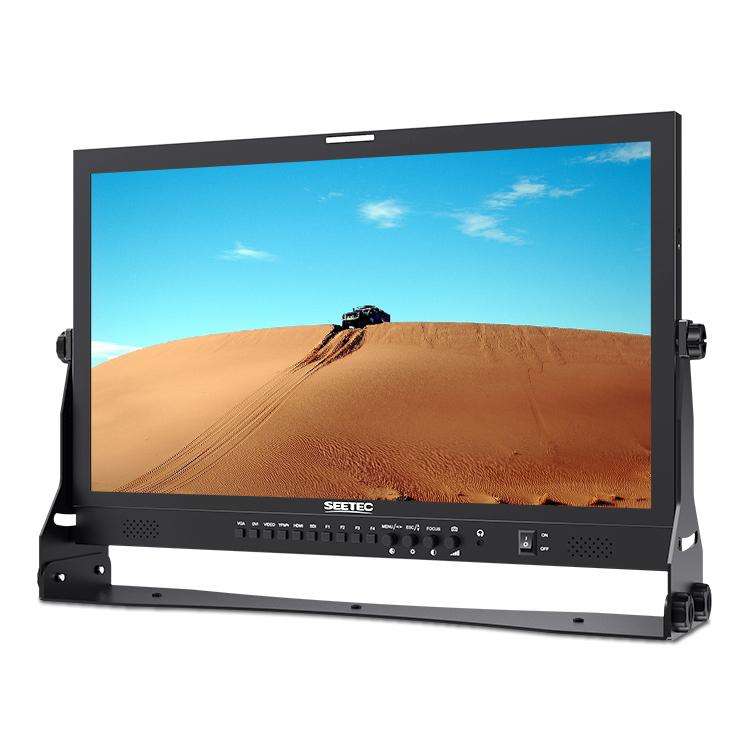

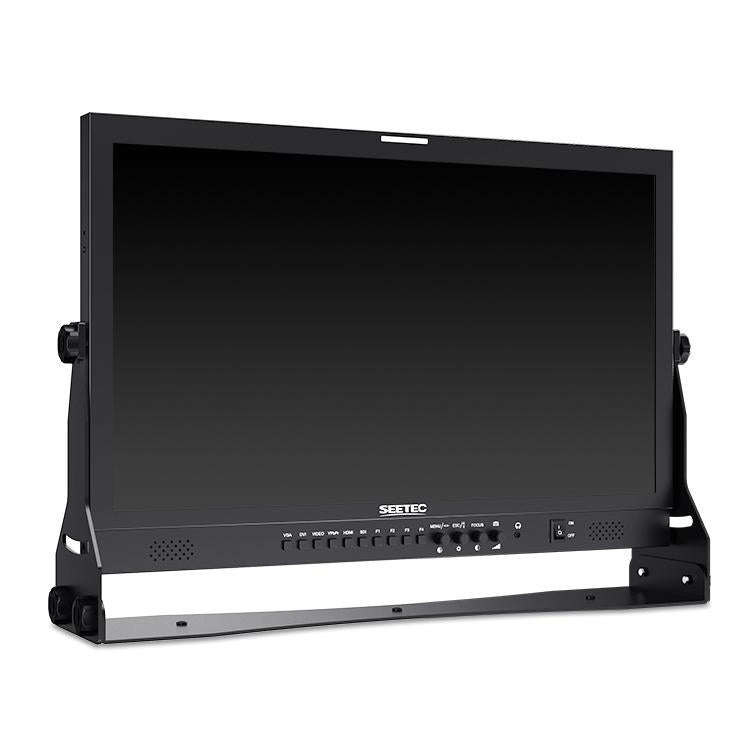

SEETEC P238-9HSD 23.8 inch 3G-SDI 4K HDMI Pro Broadcast LCD Monitor IPS Full HD 1920x1080 Monitor...

Features
1. Wide view angle, Full HD 1920x1080, bright, colorful display

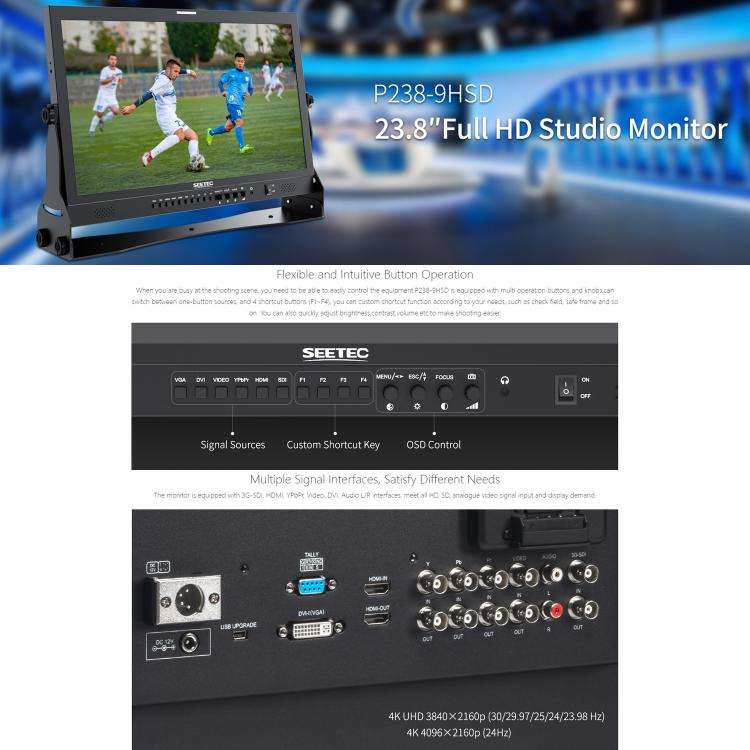

2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:

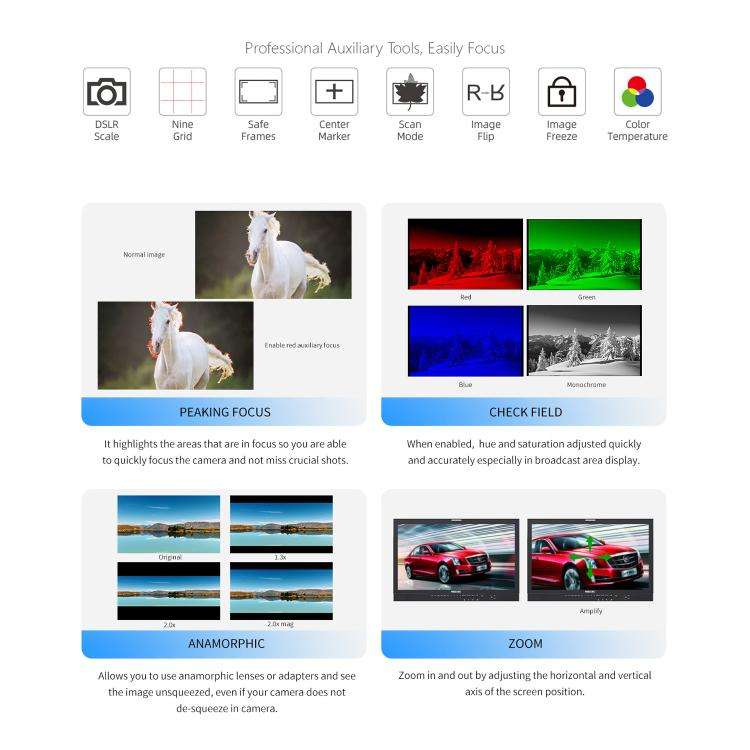

Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
Check Field (Red, Green, Blue, Mono)
Camera Mode
Pixel to Pixel
Center Marker
Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
Image Flip (Horizontal, Vertical, Hor&Ver)
Image Freeze
Zoom All
U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker

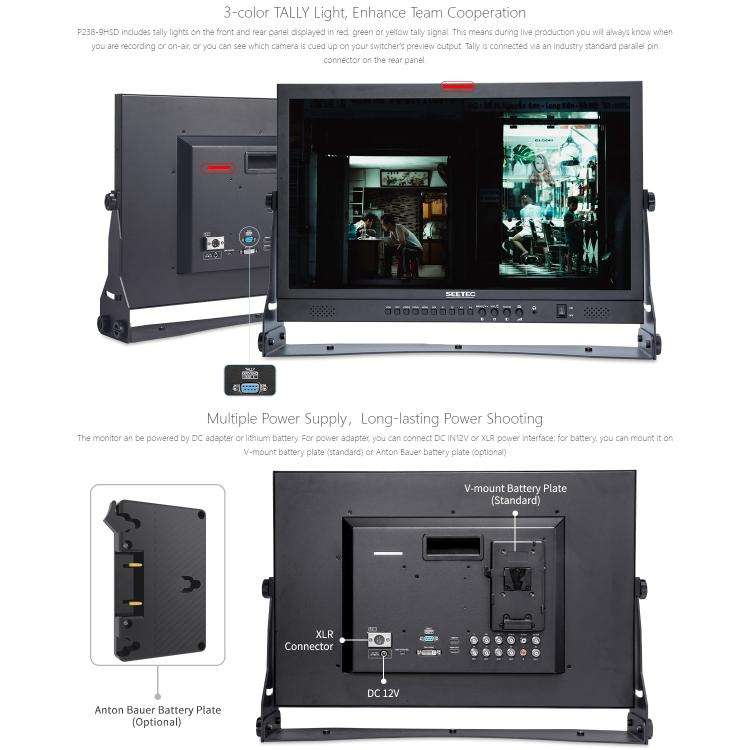

5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR

Specifications
Display Screen:
1. Model: P238-9HSD
2. Screen Size: 23.8 inch IPS
3. Color Depth: 16.7M (8-bit)
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.2745 (H) x 0.2745 (V)mm
6. Aspect Ratio: 16:9
7. Brightness: 1000cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89 degrees /89 degrees (L/R) 89 degrees / 89 degrees (U/D)

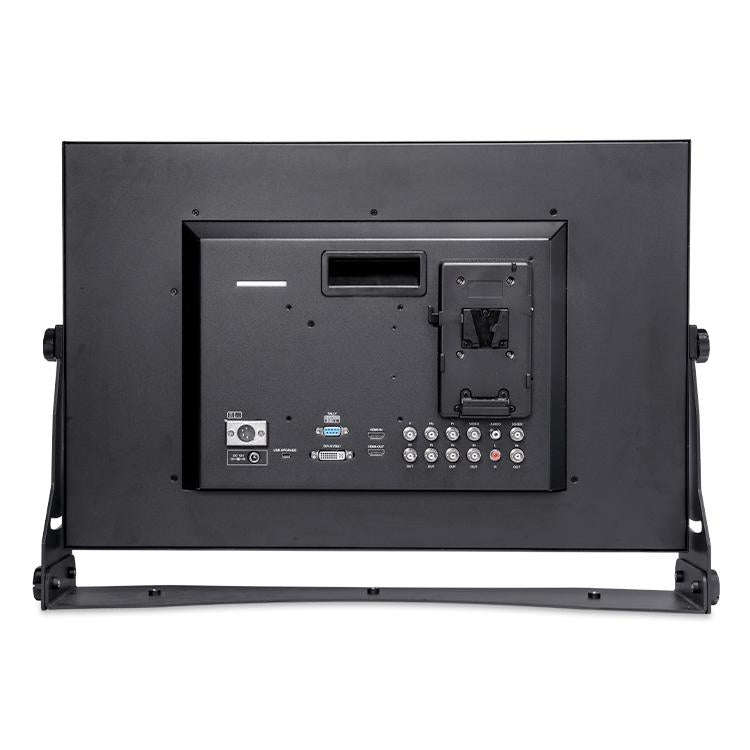

Input:
1. 1 x BNC: 3G-SDI
2. 1 x HDMI: HDMI
3. 3 x BNC: YPbPr
4. 1 x DVI-I: DVI-I
5. 1 x BNC: Video
6. 2 x RCA: Audio(L/R)

Output:
1. 1 x BNC: 3G-SDI
2. 1 x HDMI: HDMI
3. 3 x BNC: YPbPr
4. 1 x BNC: Video

Audio:
Audio: Stereo Headphone

SDI Support Format:
1. 480i/576i
2. 720p (60/59.94/50/30/29/25/24/23.98)
3. 1080i (60/59.94/50)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format:
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz)

General:
1. Input Voltage: DC 9 ~ 24V
2. Power Consumption: Less than or equal to 24W
3. Working Temperature: 0 degree C~50 degree C
4. Storage Temperature: -20 degree C~60 degree C
5. Unit Size: 567Lx372Hx46.7D (mm) (W/O Bracket)
6. Unit Weight: 5.9kg (W/O Bracket)

Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. V Battery Plate (default to mount on device) x 1
4. 3A Power Adapter x 1
5. Tally Kit x 1

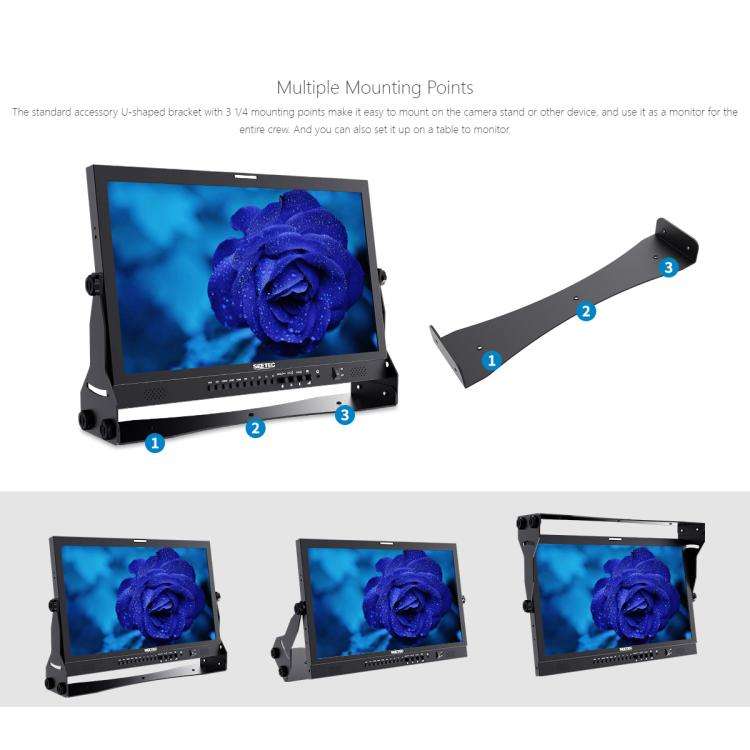

6. U-shape Bracket x 1
7. Operation Manual x 1
