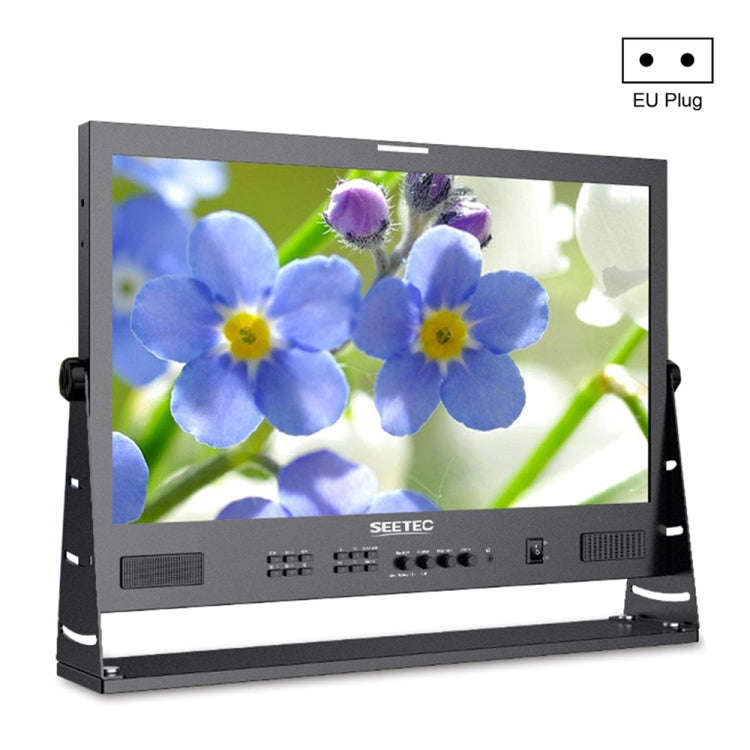

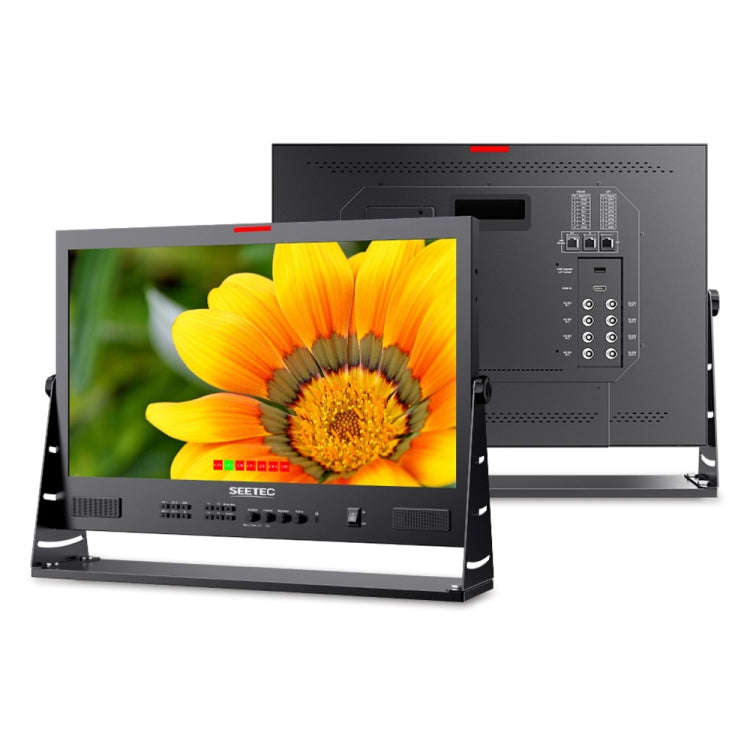

SEETEC ATEM215S 21.5 inch 3G-SDI HDMI Full HD 1920x1080 Multi-camera Broadcast Monitor(EU Plug)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DCA1821EU
Bob Shop ID
614131073
Features
1. 21.6-inch 1920x1080 full HD large screen
2. Rugged aluminium housing, durable
3. Flexible and intuitive button operation, easy to use)

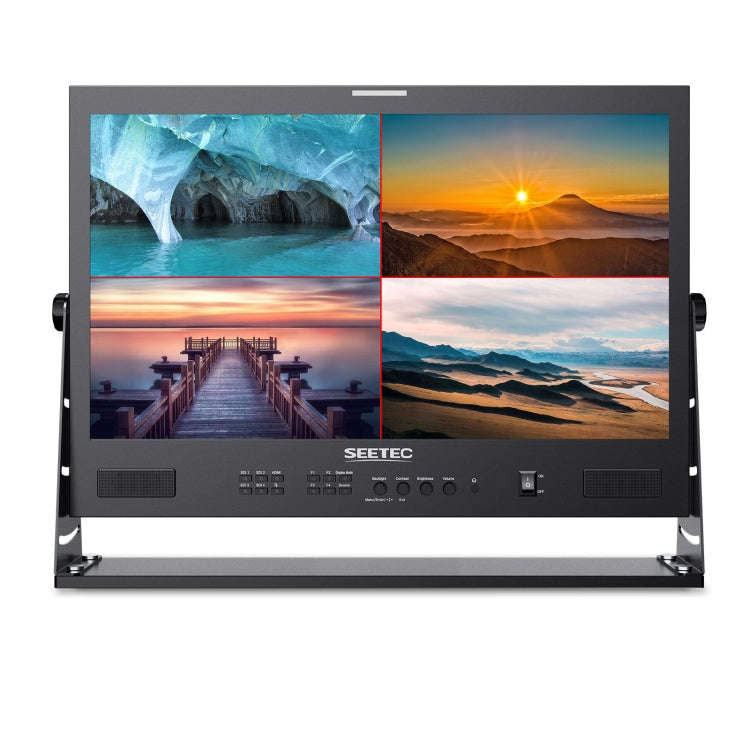

4. Mulitple display modes (single, PIP, quad)

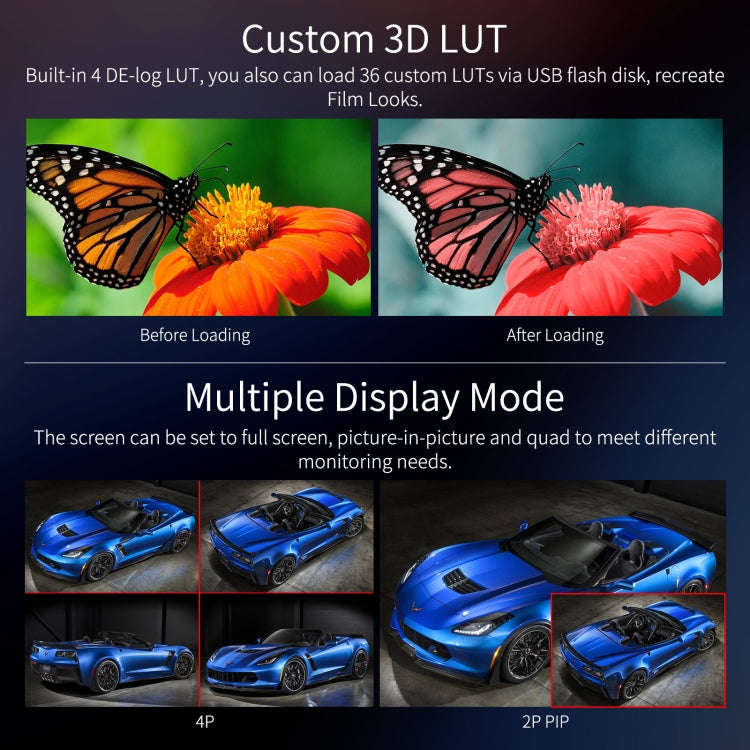

5. Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)

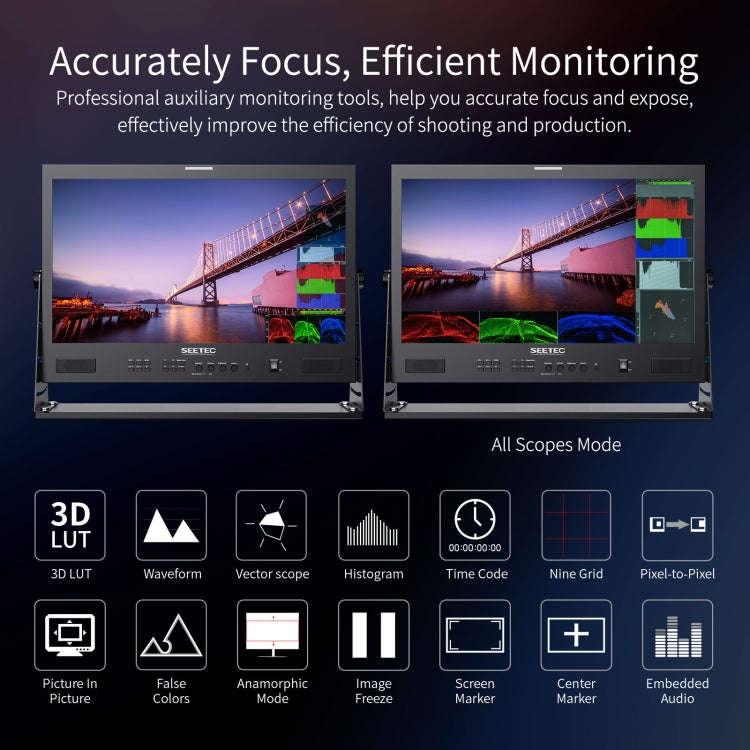

6. With waveform, vectorscope, RGB Histogram, focus Assist, monochrome etc. functions, can help you accurately exposure and focus every shot.

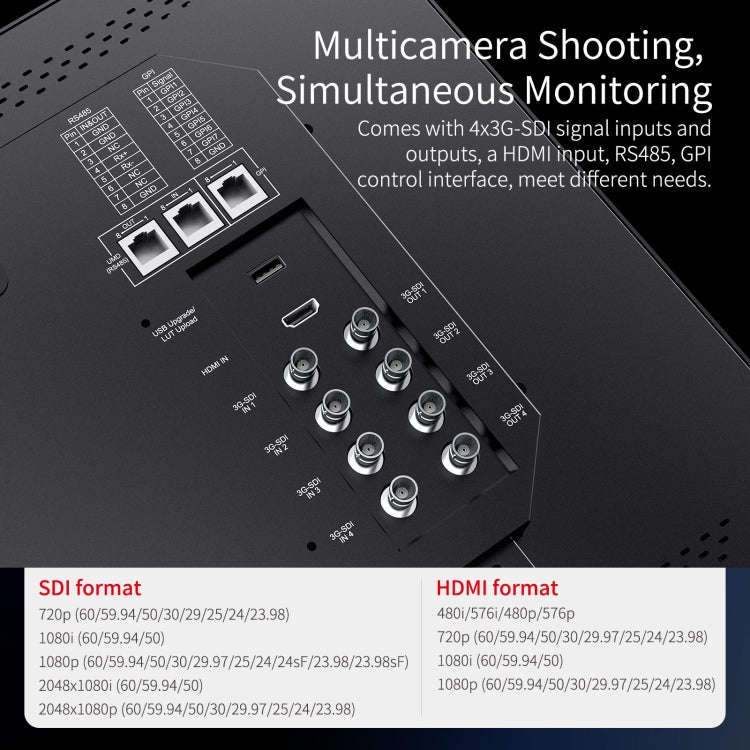

7. Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
8. Supports OSD tally and LED tally
9. Stereo Earphone output
10. VESA standard mounting points support for bracket or hang wall installation
Functions
1. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
2. Zebra (70IRE, 80IRE, 90IRE,user)
3. Monochrome (gray, red, green, blue)
4. False Color
5. Timecode
6. Nine Grid
7. Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
8. Center Marker
9. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
10. All Waves (can be adjusted left or right)
11. Parade (OFF, RGB Parade, Y, YUV Parade)
12. Vector
13. Histogram
14. RGB Histogram
15. Audio Meter
16. 3D-LUT
17.Scan Mode (Under Scan, Over Scan)
18. Video Aspect (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
19. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
20. Zoom (4X, 9X, 16X)
21. Freeze
22. Pixel to Pixel
23. Colortemp (6500K, 9300K, user)
24. Display Mode(full screen, PIP, quad)
25. Quad View: Support 4x 3G-SDI inputs.

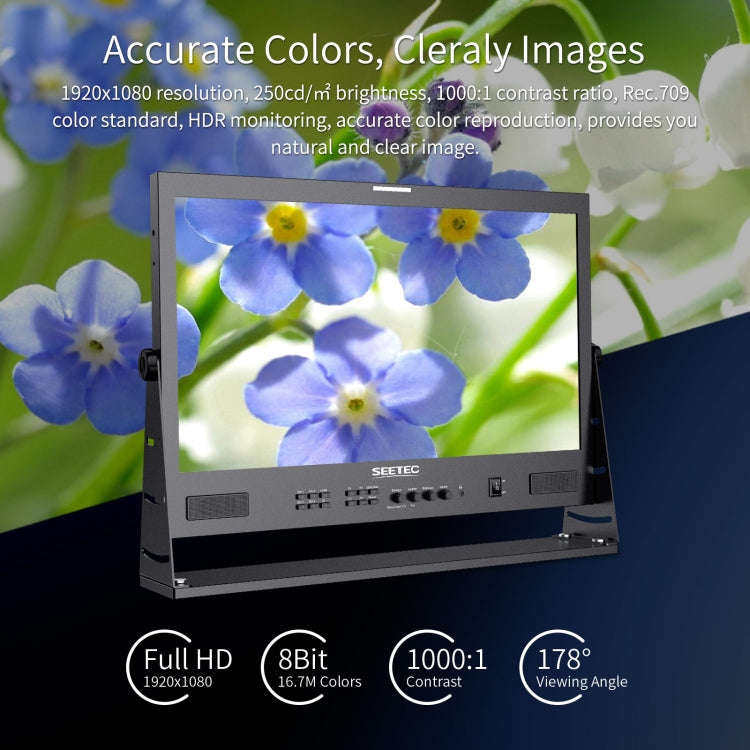

Specifications
Display screen
1. Model: ATEM215S
2. Screen Size: 21.5 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.08265(H) x 0.24975(V) mm
6. Aspect Ratio: 16:9
7. Brightness: 250cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89 degree / 89 degree (L/R) 89 degree / 89 degree (U/D)
Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone, Speaker
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
