Features
1. 21.5-inch 1920x1080 full HD large screen

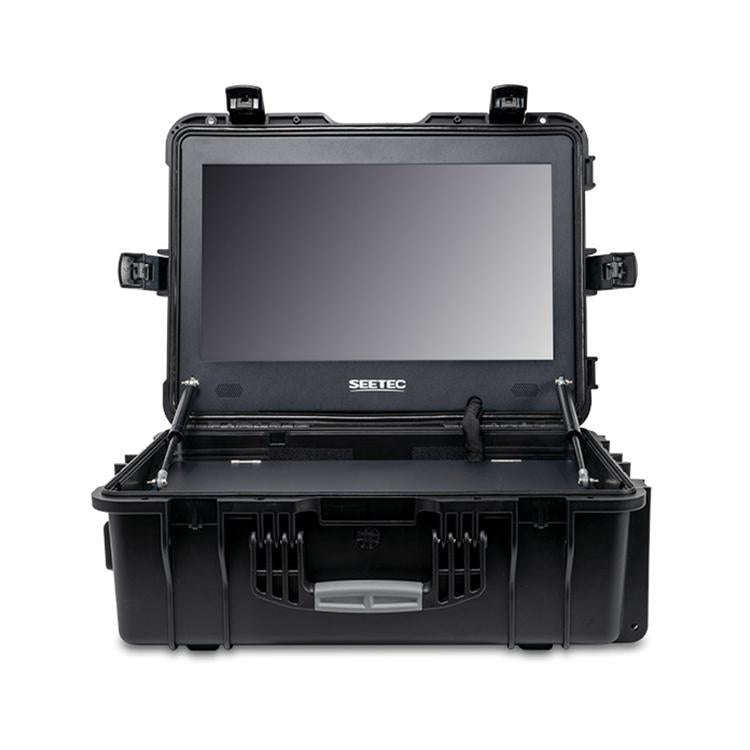

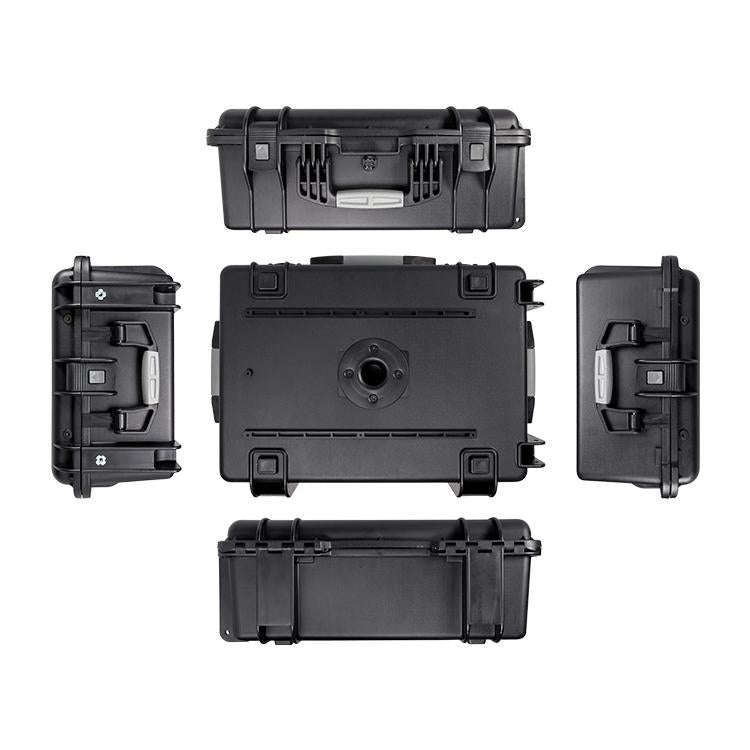

2. Portable waterproof case, easily cope with various harsh shooting environments

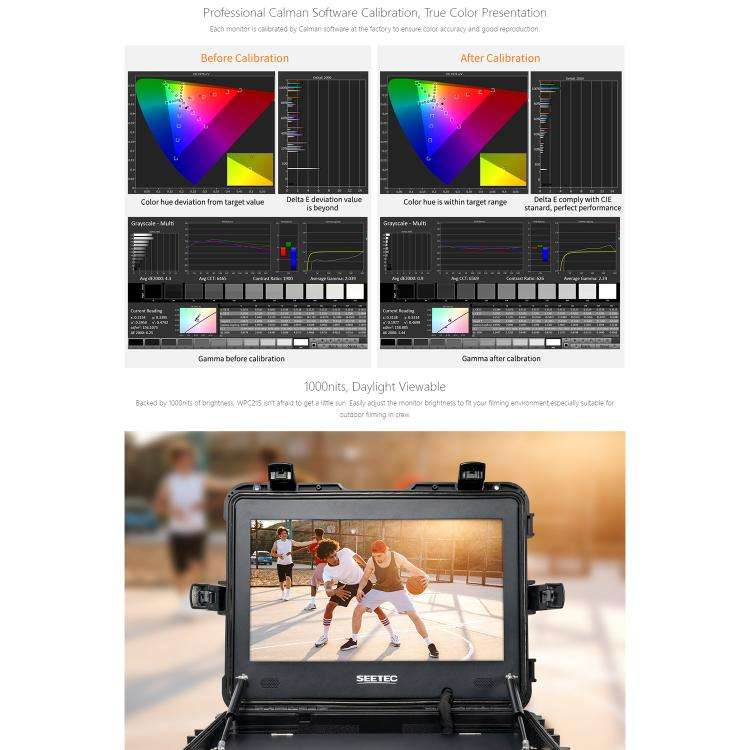

3. 1000nits high brightness, ideal choice outdoor shooting

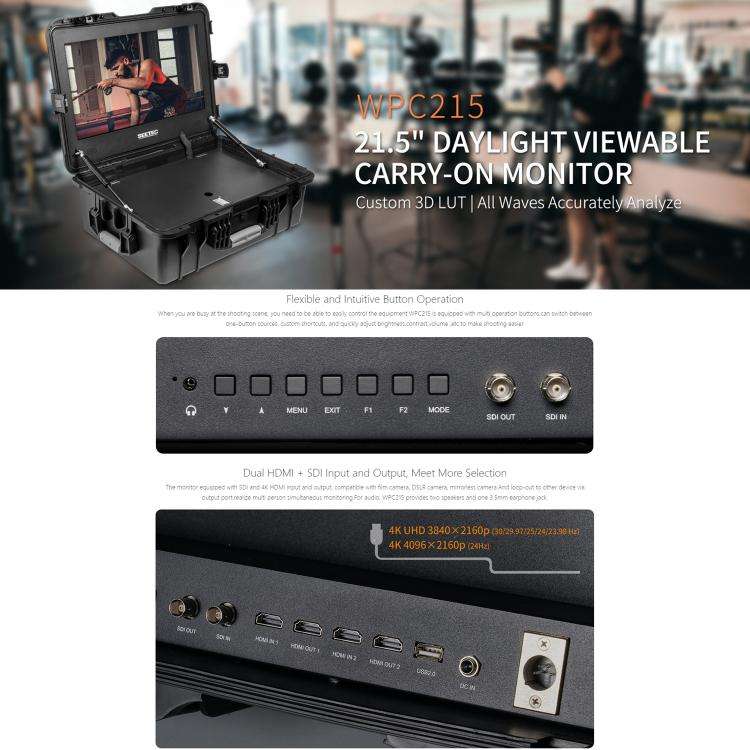

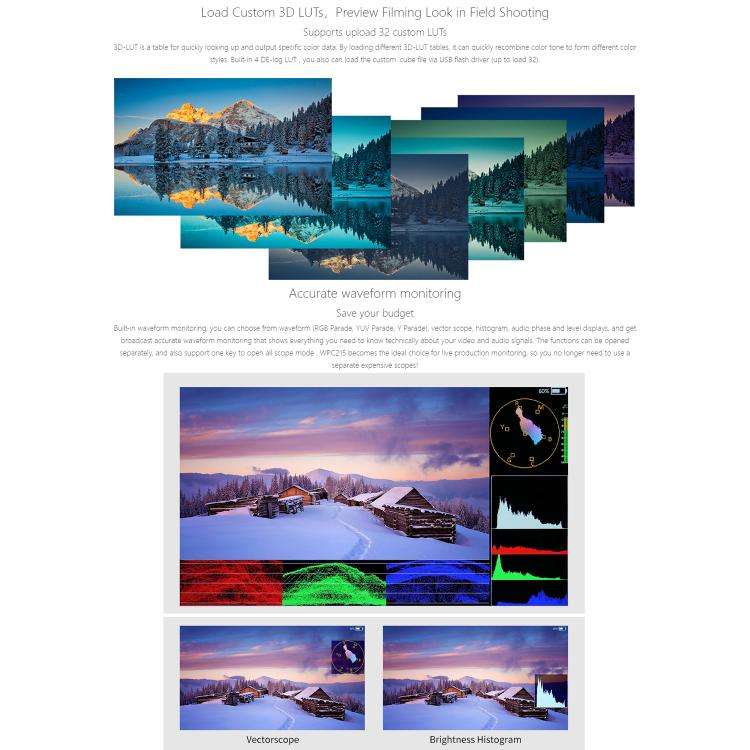

4. Flexible and intuitive button operation, easy to use
5. Custom 3D-LUT, preview film look
6. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
7. HDMI support up to 4K at 30Hz

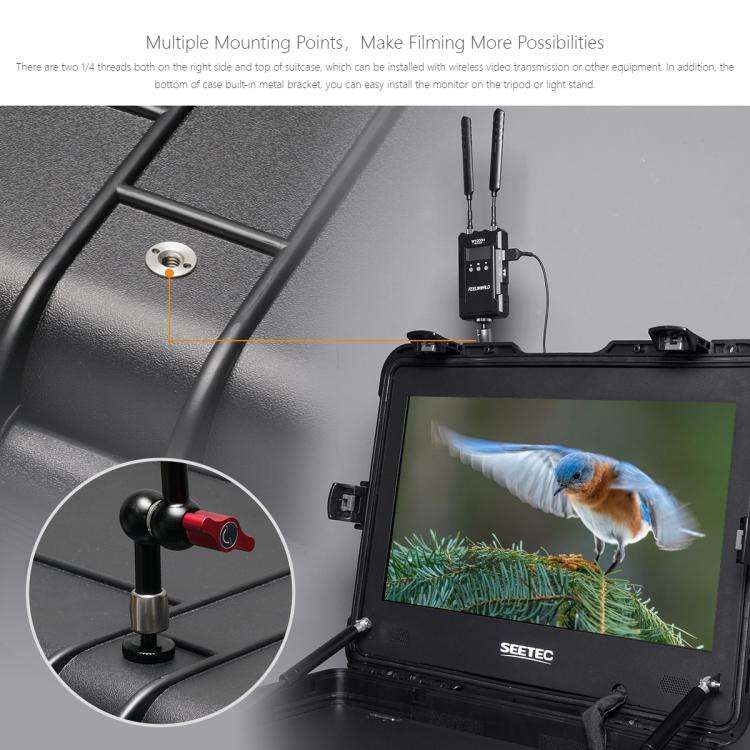

8. With multiple 1/4 screw thread, can be mount wireless transmission and other device.
9. The bottom of case built-in metal bracket, can mount the monitor on the tripod.
10. Stereo Earphone output

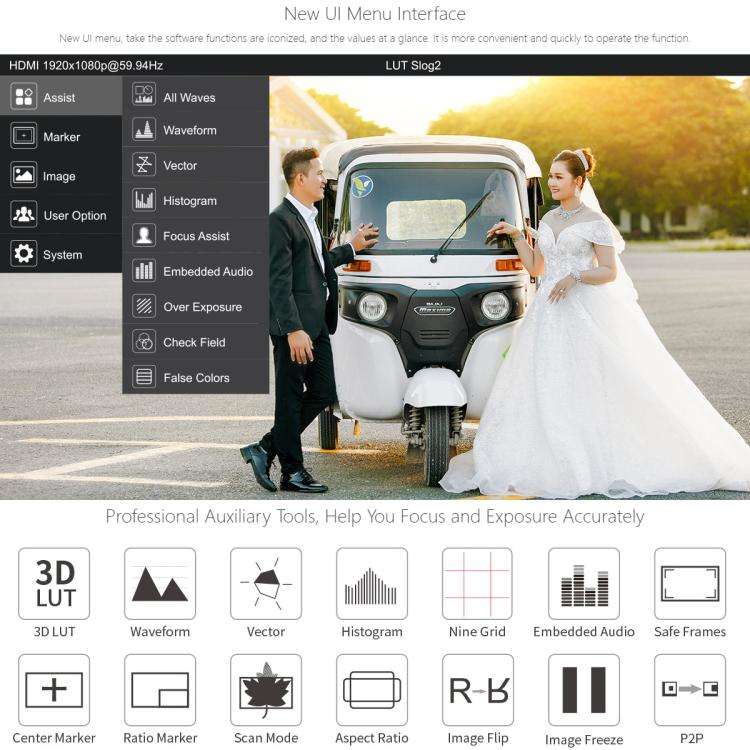

Functions
1. All waves (waveform, vector, histogram and embedded audio)
2. Waveform (RGB, YUV, Y)
3. Vector
4. Histogram(RGB1, RGB2, Y)

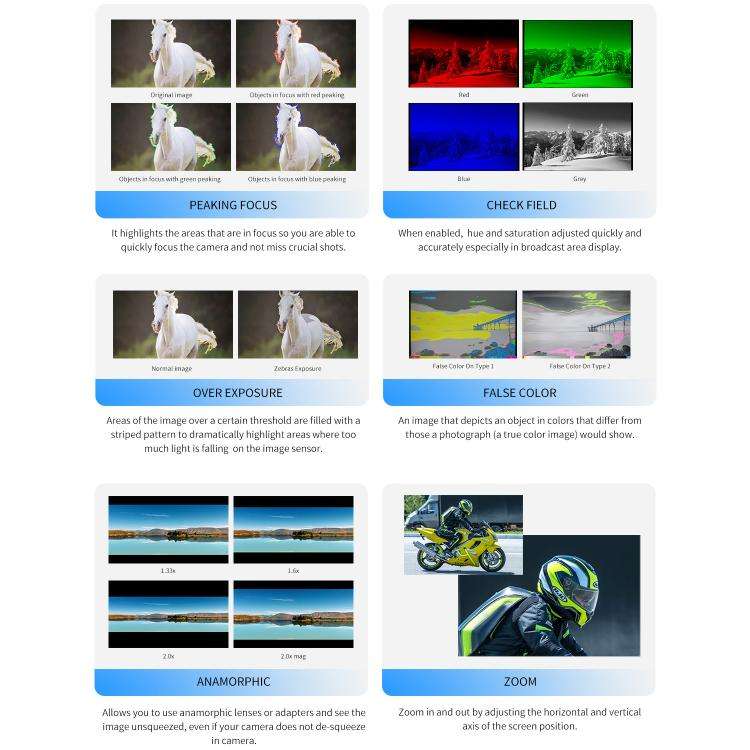

5. Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus)
6. Embedded Audio
7. Over Exposure (10~100)
8. Check Field (Red, Green, Blue, Gray)
9. False Color
10. Nine Grid
11. Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
12. Center Marker
13. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
14. Scan Mode (Under Scan, Over Scan)
15. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
16. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
17. Image Flip (H Flip, V Flip, H_V Flip)
18. Zoom Mode(2X, 4X, 9X, 16X, User)
19. Freeze
20. Pixel to Pixel
21. 3D-LUT
22. Colortemp (5600K, 6500K, 9300K, User)
Specifications

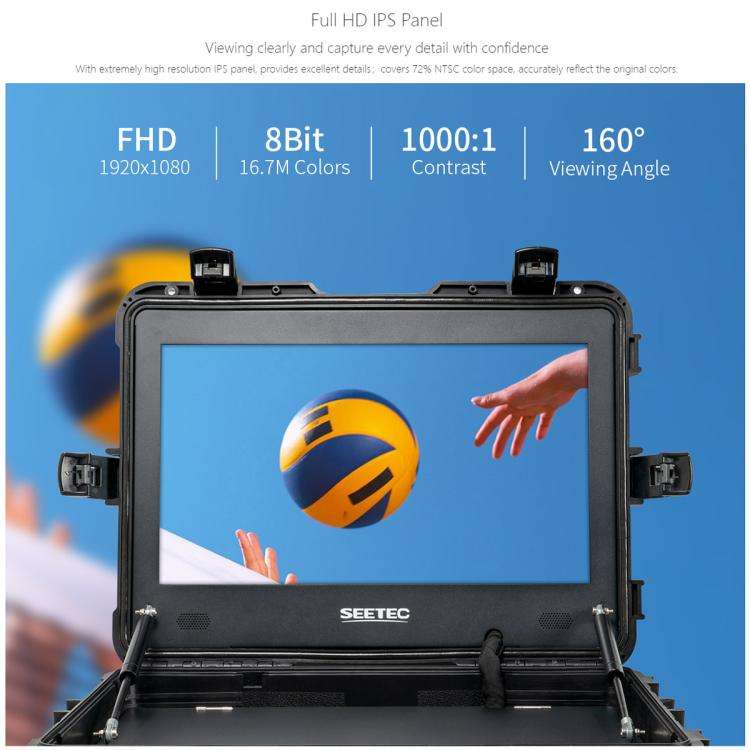

Display Screen:
1. Model: WPC215
2. Screen Size: 21.5 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.24795(W) x 0.24795(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 1000cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89 degrees /89 degrees (L/R) 89 degrees / 89 degrees (U/D)
Input:
1. 1 x 3G-SDI: 3G-SDI
2. 2 x HDMI: HDMI-A (up to 4K at 30)
3. 1 x USB: USB (upgrade and LUT import)
Output:
1. 1 x 3G-SDI: 3G-SDI
2. 2 x HDMI: HDMI-A (up to 4K at 30)
Audio:
Audio: Stereo Headphone
SDI Support Format:
1. 720p (60/59.94/50/30/29/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HDMI Support Format:
1. 480i/576i/480p/576p
2. 720p (60/59.94/50/30/29.97/25/24/23.98)
3. 1080i (60/59.94/50)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98 Hz), 4096 x 2160p (24Hz)
General:

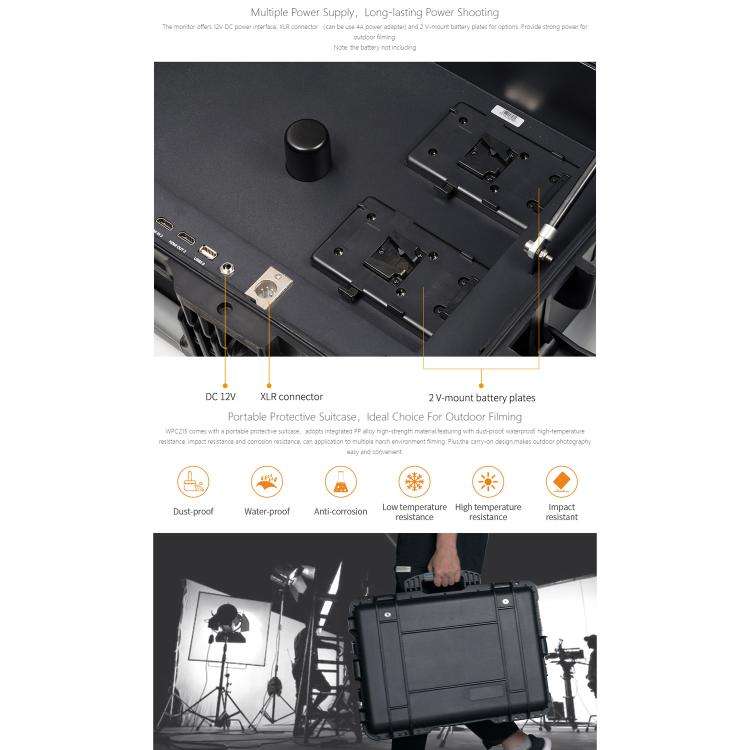

1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 38W
3. Working Temperature: 0 degree C~50 degree C
4. Storage Temperature: -20 degree C~60 degree C
5. Unit Size: 596 x 440 x 240mm
6. Unit Weight: 14.8kg
Package List
1. Monitor x 1
2. Power Adapter x 1
3. SDI Cable x 1
4. Mini HDMI Cable x 1
5. V-mount Battery Plate (default to mount on device) x 2
6. User Manual x 1
