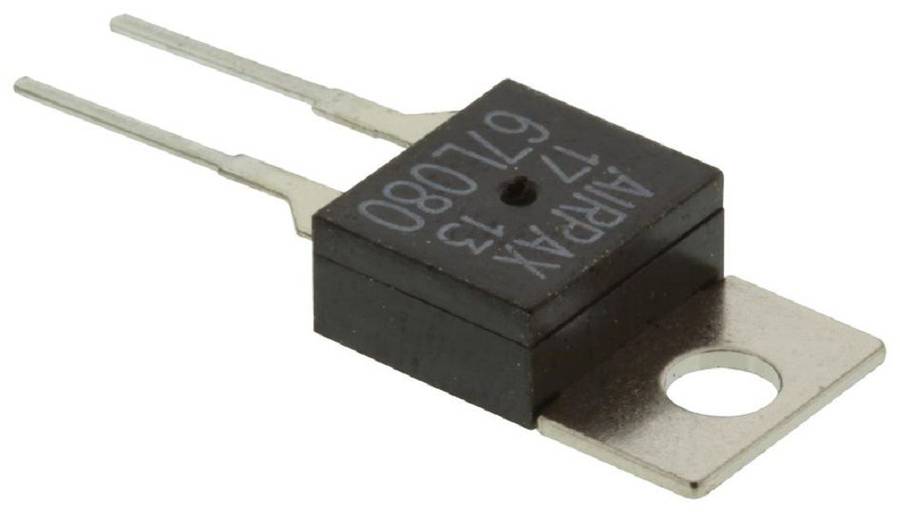

Sensata (67L080) Thermostat Switch, Subminiature, Bimetal Disc

Thermostat Switch, Subminiature, Bimetal Disc, 6700 Series, 80 °C, NormallyClosed, TO-220Product OverviewThe 6700 series from Airpax are positive snap action, single pole single throw,sub-miniature bimetallic thermostat. This device provides accurate, reliablesensing and switching. The 6700 provides fast, positive response with excellentrepeatability. The thermostat has a switch capability of upto 0.5A for 48VDC andachieves low level switching down to 0.001A to 0.020A at 5VDC for 100,000cycles. It is primarily developed for thermal management applications on powersupplies, the Airpax 6700 series is also ideally suited for use on crowded PCboards. Typical application include turning on indicator light, sounding anaudible alarm, switch on a control circuit to send a message to a display screenor even switching a circuit to shut down a system.Thermal conductivity is through terminals and the mounting bracketNickel plated copper (standard) or high pressure laminated plastic mountingbracketTO-220 / Y-220 international electronic package standardIdeal for surface and air sensing on PC boards and heat sinksVDE approved with "P" bracket optionGold plated contactsUp to 20,000 life cycles at maximum standard amperageUp to 100,000 life cycles at maximum gold contact amperageEither close on rise (make) or open on rise (break) contact operationsApplicationsIndustrial, Consumer Electronics, Portable Devices, Sensing & Instrumentation,Automotive, Medical, Test & Measurement, Power ManagementProduct InformationSwitching Temperature: 80°CReset Temperature: 55°CContact Operation: Normally ClosedSensor Terminals: Through HoleSensor Housing: TO-220Contact Rating: 1A @ 120V ac, 1A @ 48V dcProduct Range: 6700 Series
