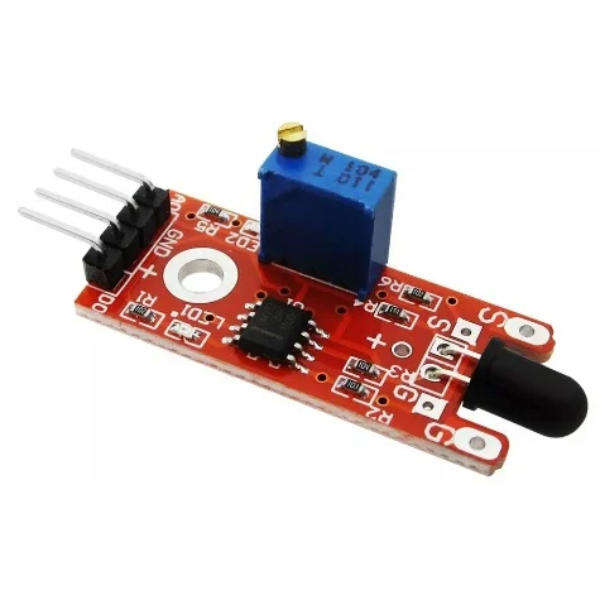

Sensor-Arduino Flame

• In addition to being sensitive to flames, this module can also sense regular light.
• Typically used as a flame detector.
• Digital output interface and microcontroller IO can be directly connected on board.
• The lighter test flame distance is 80 cm, the larger the flame, the greater the test distance.
• Sensor and flame must maintain a specific distance in order to prevent high temperature damage to the sensor.

Features:

• Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
• Detection angle about 60 degrees, it is sensitive to the flame spectrum.
• Accuracy adjustable.
• Size : 4.5 x 1.5cm.
• Operating voltage: 3.3V ~ 5V.
• Output: Analog voltage output.
• Digital switch outputs (0 and 1).
• Flame detection distance, lighter flame test can be triggered within 0.8m, if the intensity of flame is high, the detection distance will be increased.
• Interface(4-wire).
• VCC: 3.3V ~ 5V.
• DO: board digital output interface (0 and 1).
• AO: board analog output interface
