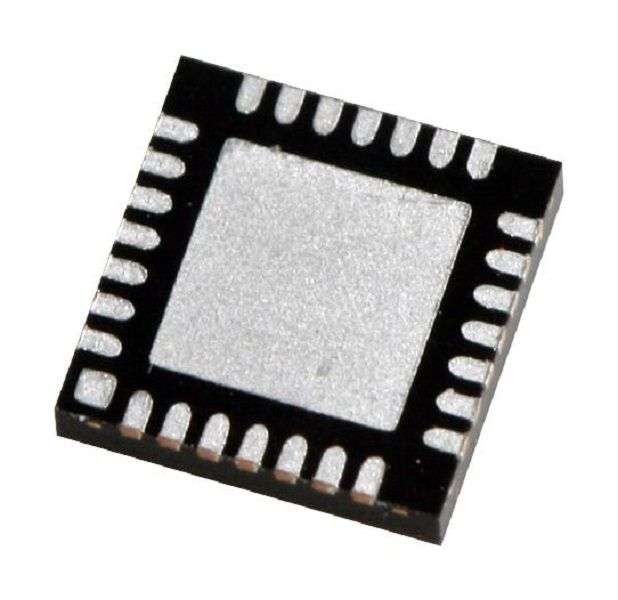

Silicon Labs (CP2102-GM) USB Interface, USB-to-UART BRIDGE

Product OverviewThe CP2102-GM is a highly integrated USB to UART Bridge Controller providing asimple solution for updating RS-232 designs to USB using a minimum of componentsand PCB space. The CP2102-GM includes a USB 2.0 full speed function controller,USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART)with full modem control signals. No other external USB components are required.The on chip EEPROM may be used to customise the USB Vendor ID, Product ID,Product Description String, Power Descriptor, Device Release Number, and DeviceSerial Number as desired for OEM applications. The EEPROM is programmed on boardvia the USB, allowing the programming step to be easily integrated into theproduct manufacturing and testing process.Integrated USB transceiver; no external resistors requiredIntegrated clock; no external crystal requiredIntegrated 1024 Byte EEPROMOn chip power on reset circuitOn chip voltage regulator: 3.3V outputUSB Specification 2.0 compliant; full-speed (12 Mbps)USB suspend states supported via SUSPEND pinsAll handshaking and modem interface signalsBaud rates: 300 bps to 1 Mbits576 Byte receive buffer; 640 byte transmit bufferHardware or X-On/X-Off handshaking supportedEvent character supportLine break transmissionApplicationsCommunications & Networking, Consumer Electronics, Aerospace, Defence, Military,MultimediaProduct InformationUSB IC Type: USB-to-UART BRIDGEUSB Standard: USB 2.0Supply Voltage Min: 3VSupply Voltage Max: 3.6VInterface Case Style: QFNNo. of Pins: 28PinsData Rate: 1MbpsNo. of Ports: 1 PortOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: -
