Add on any device required from the Silux Range to Starter Kit - for basic lighting and device control complete your home automation solution.

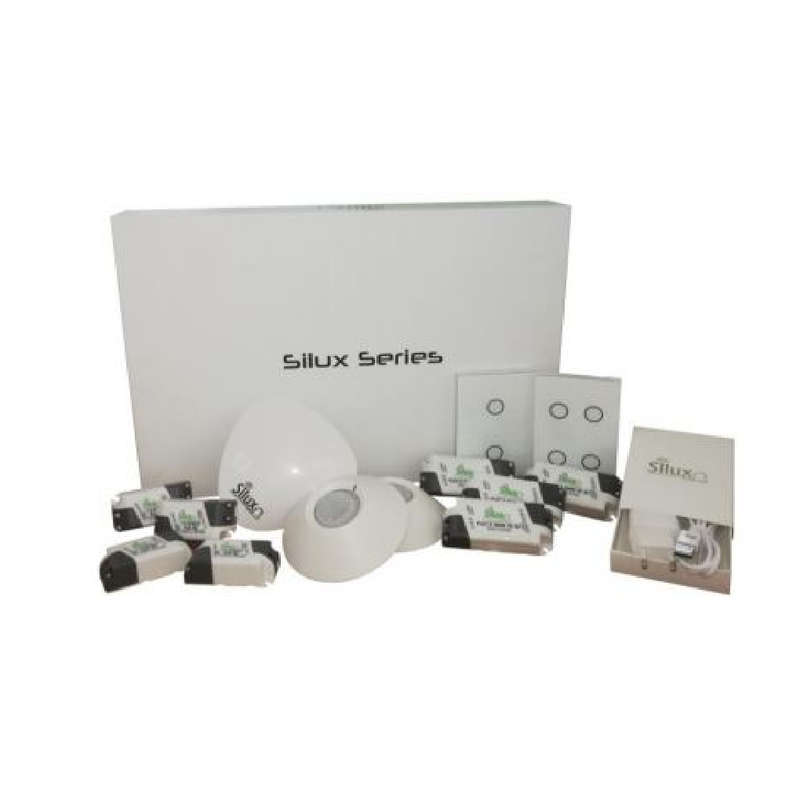

Starter Kit - for basic lighting and device control
Kit includes
Intellihub-Control Hub
The link between your Silux control devices and the app on the smart phone
? All messages between control devices and the app are handled and verified by the INTELLIHUB
? All devices require secure codes and all messages are encrypted for total security and privacy
? Intellihub also stores and handles all pre-set schedules (up to 32) and monitors the controlled net
work (up to 128 devices), ensuring that everything runs smoothly and everything that is connected
is in sync.
? c/w Power supply: 110-230VAC / 5VDC 1000mA
? Ethernet communications port RJ45
? Wireless range 20m (direct) in open air, (network meshing range ?2km)
? Size: 120 x 120 x 35mm
? LED indication for power and unit status
? Reset button
Collector Relay-Relay module
Relay Output, enables on/off control
of low power devices such as lights
? Max load 230VAC/400W
(Unit switches its own supply to
power the load)
? Can be directly paired to the Touch
Lamina Module or Smart Module
without the need for INTELLIHUB /
Internet
? Wireless range 50m (direct) in open
air, (network meshing range ?2km)
? Power Supply 230VAC
? Size: 39 x 88 x 23mm
Seeker-PIR Sensor
This PIR sensor eliminates the use of switches to control lights and other devices linked
to the Silux control system. Configure lights or other devices to switch on / off or motorised doors
to open / close or devices to switch on/off when motion is detected
? Motion detection (3 sensitivity levels) can be used with any Silux control device.
? Time delay selectable 1.5min, 5 min or 10min
? Sensing range 120 degrees x 3meters ? Size ?105 x 35mm
? Can work independently of the INTELLIHUB (Direct Pairing)
? Wireless range 50m (direct) in open air, (network meshing range ?2km)
? Power supply SC-PS01 230VAC/5VDC (supplied) or 2 x AA Batteries (supplied)
Touch Lamina -Touch Switch 2 and 4 way
? An alternative way to control any device connected to the Silux control system
? Can replace or supplement existing switches, With the added bonus of being wireless. You can
place it where it is most convenient.
? Can be directly paired with collector devices for standalone use or connected to the system via.
the INTELLIHUB
? Assign a button to any Silux controlled device including garage doors, motorised gates,
pool pumps and much more.
? Luminous effect buttons. ? Size 70 x 120 x 13.5mm
? Wireless range 25m (direct) in open air, (network meshing range ?2km)
? Power supply: 2 x CR2032 3VDC batteries (supplied) or SC-PS01 Power supply (Supplied)
