Single-tube Low-frequency Amplifier Circuit Kit Triode Common-fire Amplification DIY Welding Parts

New

20 available

R355.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4014

92.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654107689

Feature:

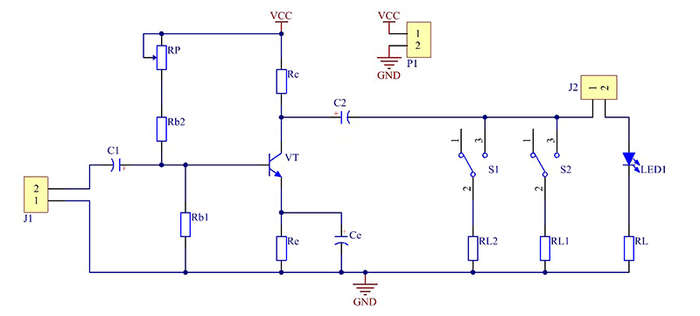

The common-shot amplifier circuit is the basic circuit of the learning amplifier circuit. This circuit is a voltage-dividing current negative feedback single-stage low-frequency small-signal amplifier. It uses RP, Rb1, Rb2, and fixed base potential (change the RP to adjust the static operating point) , Use the emitter resistance Re to obtain the current feedback signal, so that the base current changes accordingly, thereby stabilizing the static operating point.

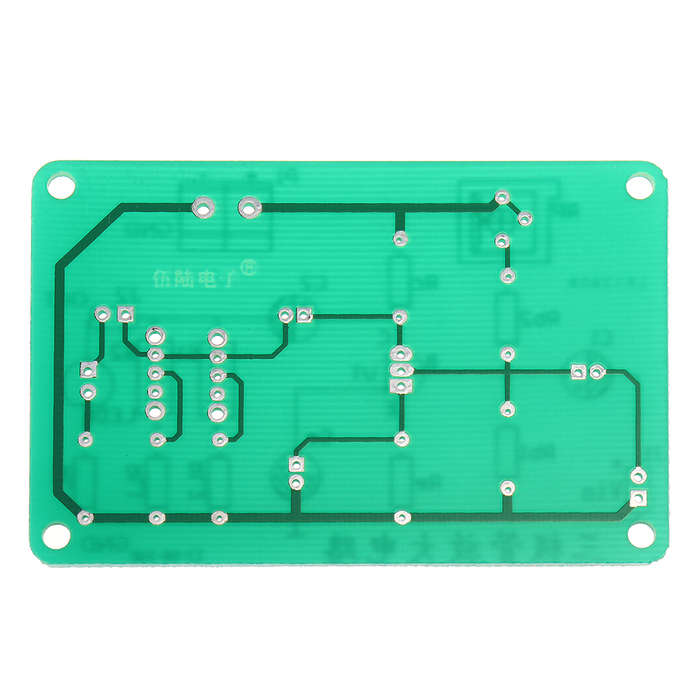

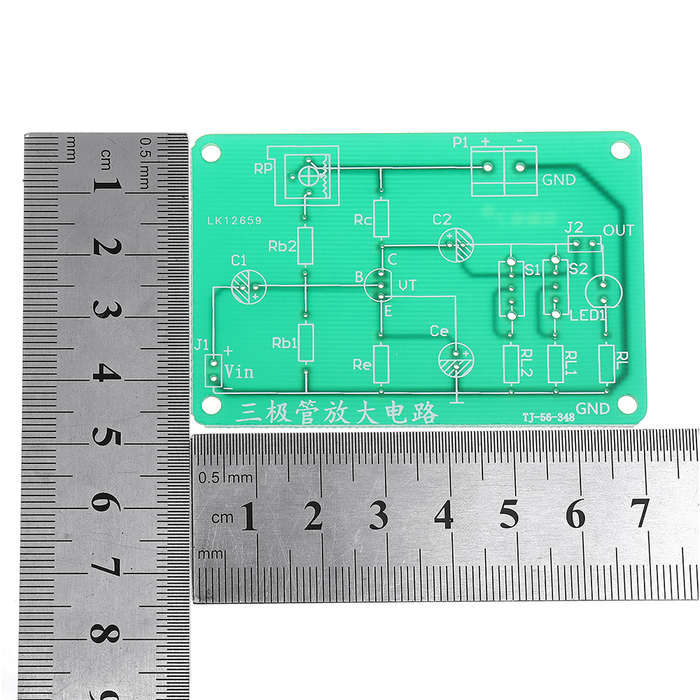

Board size: 7*4.6cm

Power supply voltage: DC 6-12V (prevent the LED to reach the brightness visible to the naked eye, the voltage should be 20-30V)

Package includes:

1 x DIY KIT
