Smart Energy Monitor 16x Clamp Meter | 200A CT Single or 3Phase | WiFi Tuya Smart Life

Smart 16x Clamp 200A Energy Monitoring Meter | Tuya Smart Life

This 16-channel CT clamp energy monitor is designed to measure and monitor electrical energy consumption in up to 16 different circuits within a building or facility. It utilizes current transformer (CT) clamps to non-invasively measure the current flowing through each circuit without interrupting the electrical supply. By providing detailed insights into energy consumption, these monitors help identify areas for energy efficiency improvements, reduce operational costs, and contribute to sustainable practices.

The instruction manual for the Smart 16x Clamp Meter [click here]

Features

• Supports with other Tuya devices.
• Is compatible with:
  • Single-phase
  • Split-phase
  • Three-phase
• You can remotely monitor your home energy consumption and up to 16 individual circuits with 50A sub-CT, like solar, lights, etc.
• This device is bi-directional (meaning it can measure the system's current flow in both directions).

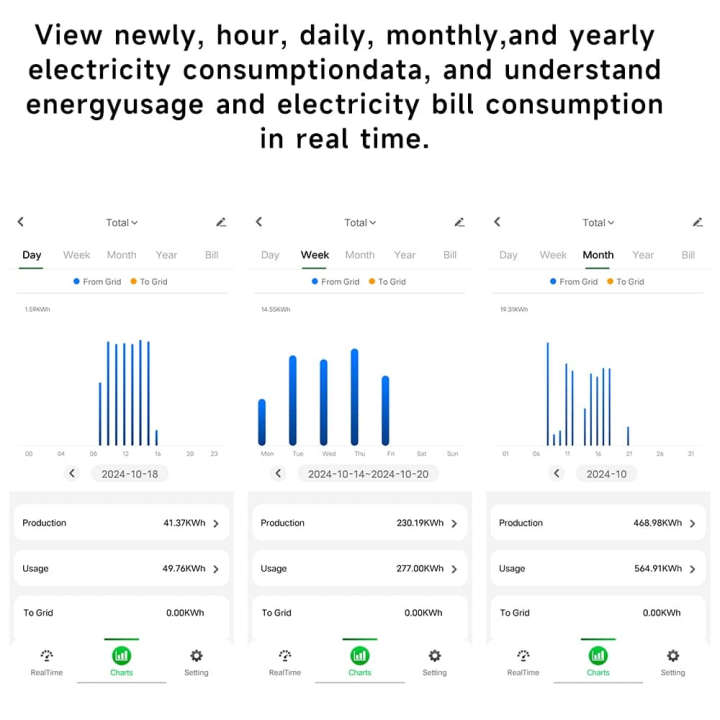

• Can do historical data on energy consumed and energy protection.
• The Smart Energy Monitor 16x Clamp Meter can measure:
  • Real-time voltage
  • Current
  • Power factor
  • Active power
  • Frequency

Specifications

• WiFi: 802.11 b/n/g @ 2.4GHz
• RF characteristics: operating frequency is 2.4GHz; external magnetic antenna
• Operating voltage: 90 ~ 277VAC @ 50/60Hz
• Supported systems:

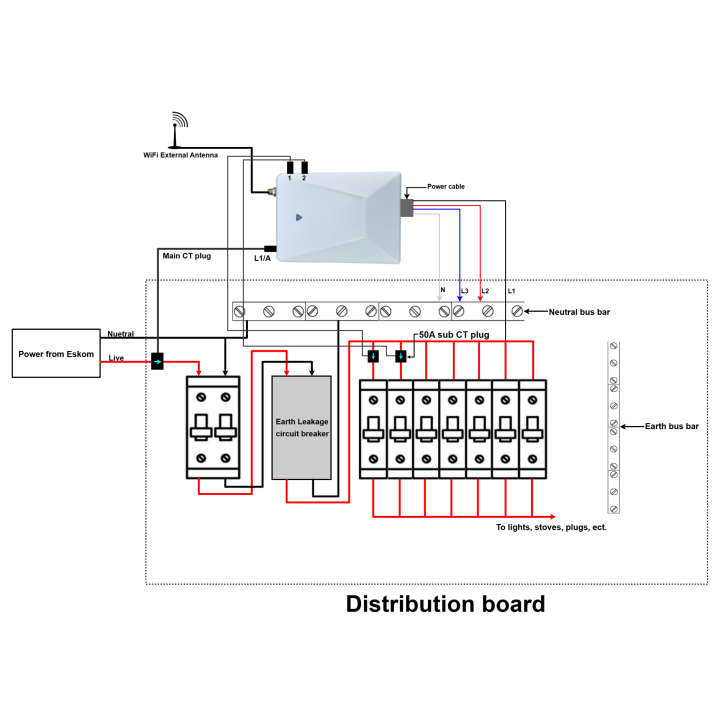

  • Single-phase 240VAC line-neutral
  • Split-phase 120/240VAC (not used in South Africa)

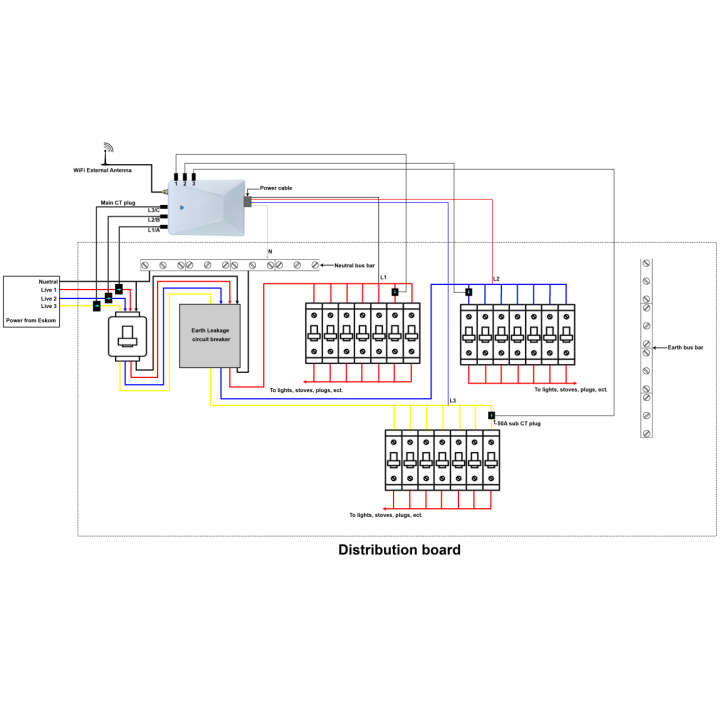

  • Three-phase up to 480Y/277VAC

Note: There are no delta/wye/Y/star connections.

• Calibrating metering accuracy: ±2%
• Reporting cycle: every 15 seconds
• Operating temperature: -20°C ~ +55°C
• Operating humidity: 90% non-condensing
• Dimensions: 11.3 x 81.2 x 41.4 ( L x W x H in mm)

Typical Uses (but not limited to)

• Commercial Buildings
• Industrial Facilities
• Data Centers
• Residential Buildings

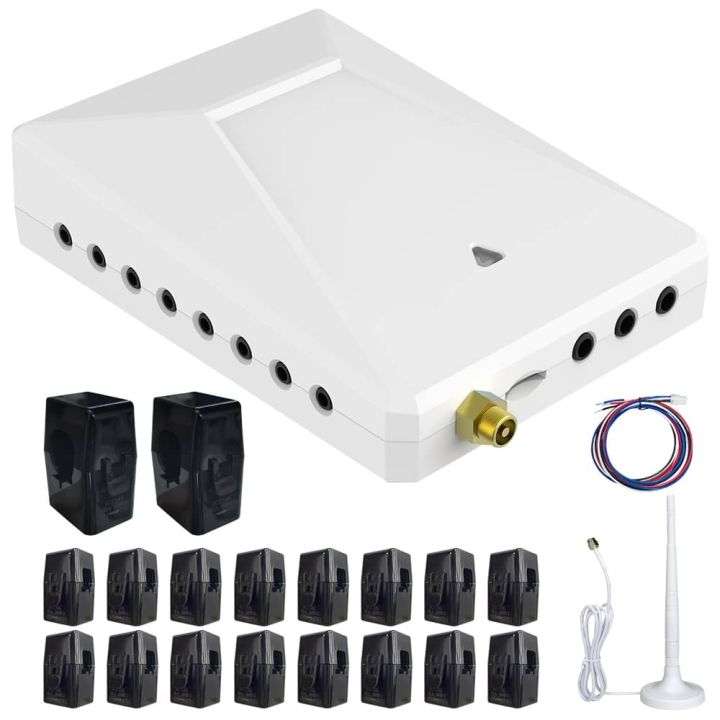

What is in the box?

• 1 x Smart 16x Clamp 200A Energy Monitoring Meter
• 1 x External antenna
• 1 x Power cable

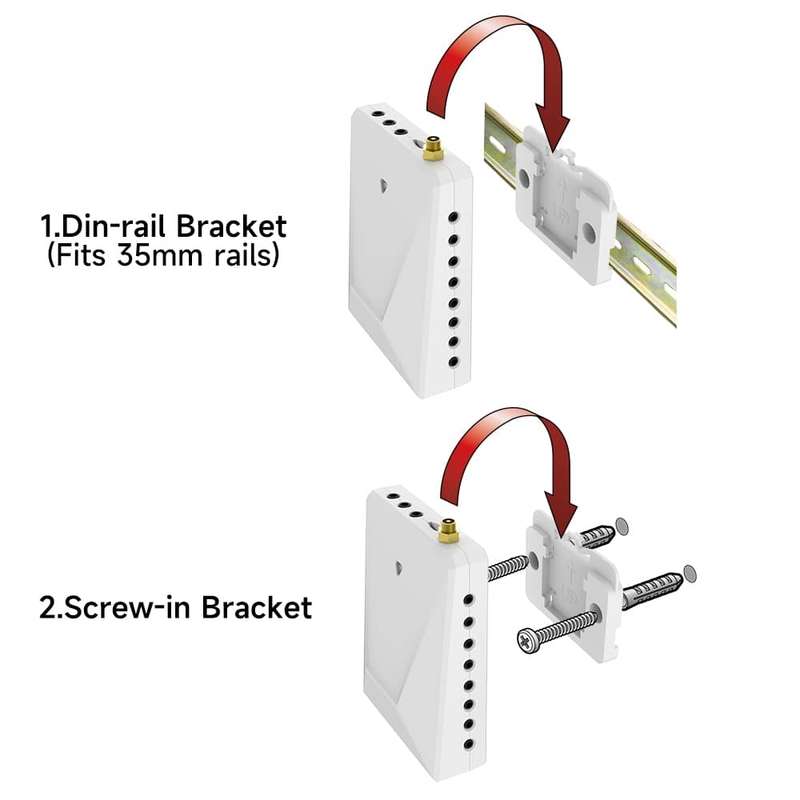

• 1 x Mounting bracket
• 3 x Main CT plugs
• 16 x 50A sub CT plugs
• 1 x Instruction manual

FAQ's

• Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
• How do I get started? [click here]
• What devices can presently be Smart Automated? [click here]

Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS),  offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home, IFTTT and more
