Smart Life Tuya WIFI 3CH Power Energy Monitor Clamp Meter 240V 500A Single/ Three-phase

Welcome to Smart Home Automation.

The smart 3CH Mini Power Energy Monitor Clamp Meter provides you with the perfect intelligent control of your Smart Home or workplace with Power Monitoring.

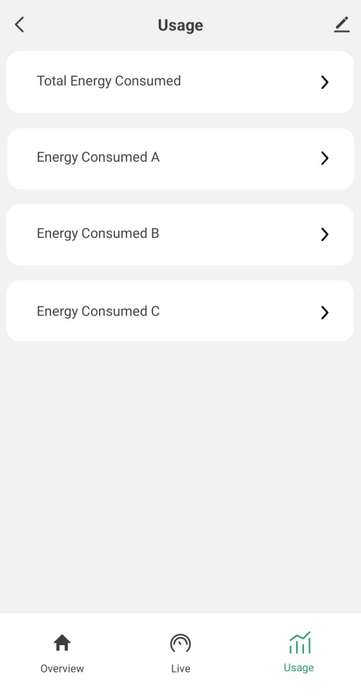

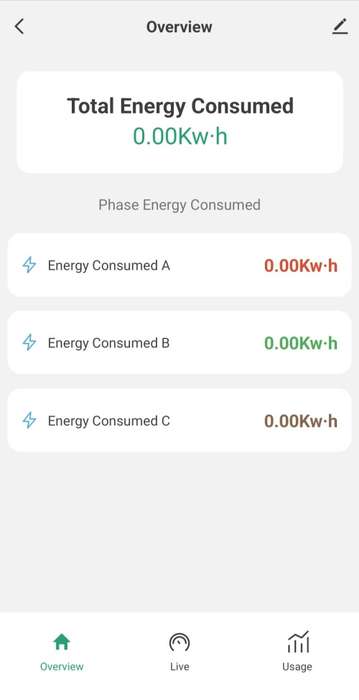

View energy Consumption Data on the app to correctly track the energy usage around your home. Know which devices consume the most energy, and make plans to save energy and electricity bills.

This Basic Power Energy Monitor is used for monitoring Energy consumption from your Mobile Smartphone via the Tuya/ Smart Life App from anywhere in the world.

All you need is Our Smart Home Devices, Wi-Fi with constant Internet, and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.

Features;
Monitor Power Electricity usage of the whole house or Appliances connected to the device.

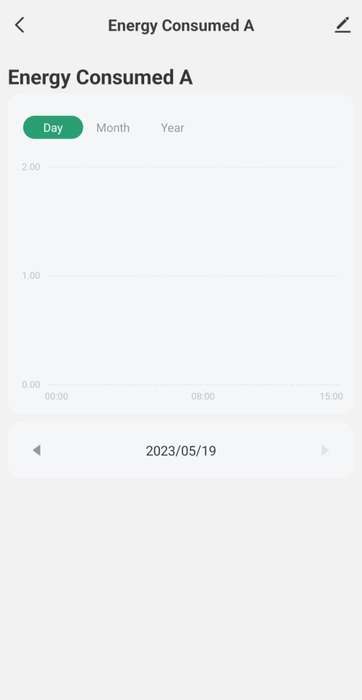

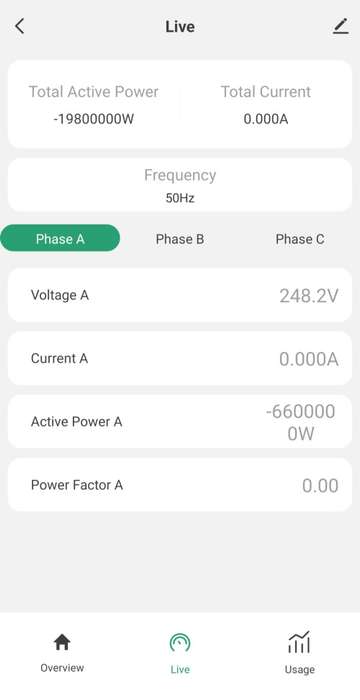

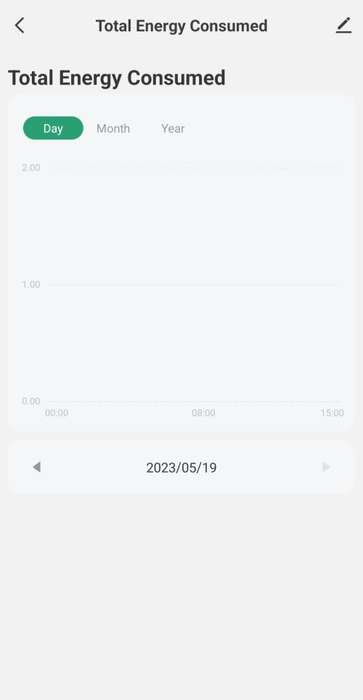

Real-time monitor of Voltage, Current (A), Power wattage, and Total Kilowatt Hours including a Daily (Per Hour), Monthly (Per day), Yearly (Per month), and total KWh view.
Can be used with a Single Phase connection with each clamp connected to different Devices to monitor each device or Three Phase connection.
Get alerted via Notification on your Mobile Smartphone within seconds.
Can be used to Monitor any appliance under 110 000W (500A) Max.

Specifications;
Electrical Voltage: AC100V-240V.
Power Measuring Range: Up to 110 000W 110KW (500A) Max.
Clamp Diameter size for Wire cables up to 35mm.
This Device Only Measures real-time and total energy consumption.

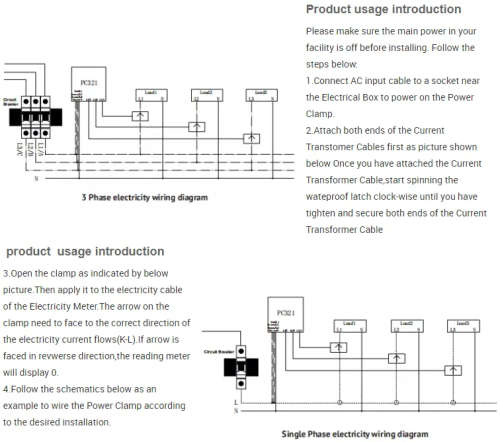

The clamp must be connected directly to only the Live wire as per the diagram picture.
Please note that Data cannot be extracted from the app. You can only view the data on a per-hour, per-day, or per-month Basis on the app.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Color: White.
Dimensions: Box: 265 x 228 x 78mm
Weight: 1.702kg.

What's in the Package;
1 x WIFI 3CH Power Energy Monitor Clamp Meter 240V 500A Single/ Three-phase.

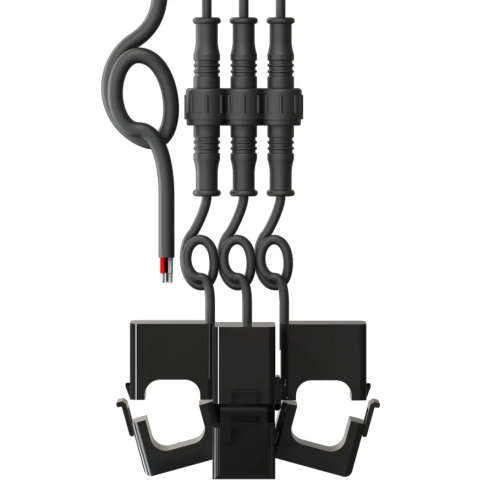

3 x 500A Clamp Meter with 80cm cable.

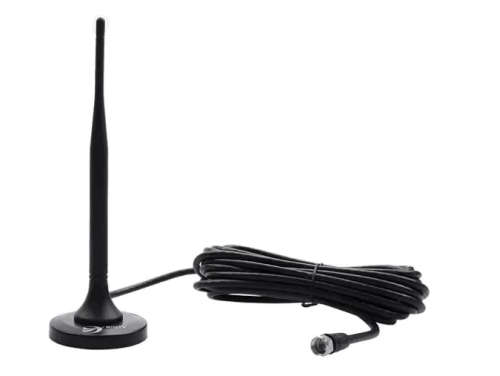

1 x Wifi Antenna.
1 x Screw Set.
1 x User Manual.
