Smart Loadshedding Detector | Eskom Utility Power Present Sensor | WiFi Tuya Smart Life

Smart Loadshedding Detector | Eskom Utility Power Present Sensor | WiFi Tuya Smart Life

This unit will detect when you have load-shedding & allow you to automate smart actions such as switching off your Inverter/UPS, geyser & any other devices you require to be switched during a loss of utility main power.

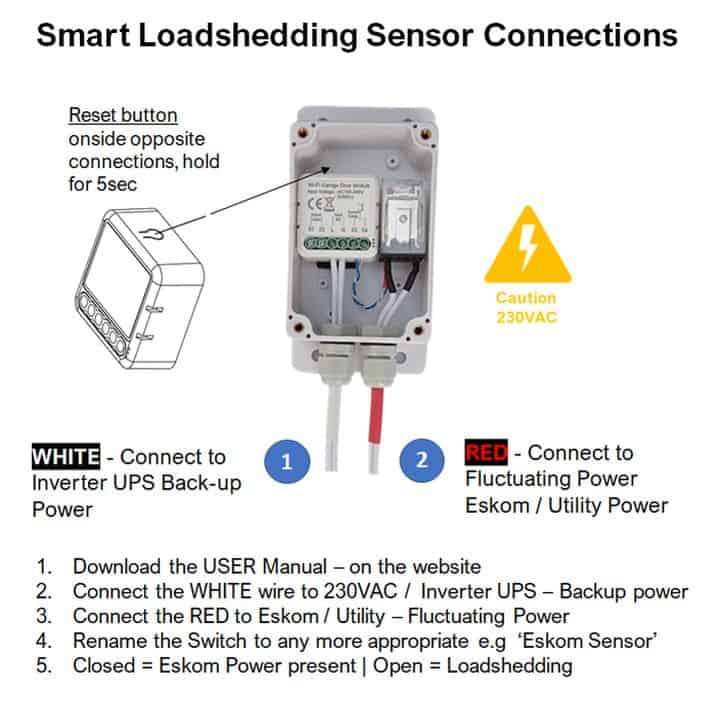

See additional images for the connection diagram.

Typical uses:

• Backup batteries - extend life cycle by 50%
  • All batteries (inverter, UPS etc) have a limited lifecycle with regards to the total number of discharges (cycles) per expected battery life. While Lithium-Ion (lifepo4) batteries have a higher number than sealed lead acid, gel or carbon they all have a limited number. Load-shedding often occurs during hours when your automated backup inverter/UPS system is NOT required. e.g 17h00 - 08h00 for office. By adding a smart circuit breaker [click here] or smart switch [click here] you can switch off the load during these unnecessary hours & save up to +200 cycles per annum & thereby greatly extending the life expectancy of your batteries. Note only one input of this controller & the smart breaker/switch must remain connected to your backup power at all times.
• Switch off devices during load-shedding.
  • You can choose to switch off any 'high load' devices such as geysers, pool pumps, plugs etc. (any devices can be toggled meaning switched off or on as required).
• Switch on devices during load-shedding.
  • In conjunction with switching off devices, you can also opt to switch on low-current devices.

This unit has been assembled due to customer requests who require a 'trigger' when they are load-shedding (Eskom utility mains power on or off). This unit will allow you to make automated actions based on whether you have load-shedding or not.

What do I need to use the Power Detector Smart Loadshedding Detector?

You will need a backup power system such as an inverter/UPS which does not fluctuate for the unit work. One end is connected to your Backup power and the other to  Eskom power.

The unit is enclosed within an IP65 housing (if used outdoors cable entries must be sealed).

Specifications

• Power Supply: AC 230V | 100-240V AC @ 50/60Hz
• Connection input: WHITE connect to inverter backup power  230 VAC
• Connection input: RED connect to Eskom fluctuating power 230V AC
• Wireless standard: IEEE802.11b/g/n
• Wireless type: only 2.4GHz, not support 5G
• Mobile Phone: Tuya Smart Life, both for Android & IOS.
• Dimensions with outer mount flange: 132.2 x 68.7 x 50.1mm (L x W x H)

Download: user manual for Smart Loadshedding Detector [click here].

Installation Instructions

1. Connect the WHITE lead to inverter 230VAC.
2. Follow the instructions to add the device to the Tuya Smart app / or Smart Life App.
3. The unit uses a Smart Garage Door opener, rename this to any suitable such as Eskom Power.
4. Connect the RED to Eskom 230VAC (switch on & off to test - simulate load-shedding).
5. Closed means - power present
6. Opened mean - load-shedding (no Eskom power)
7. Use 'Automation' within the Smart Life App to switch other smart devices on or off.

What's in the Box?

1x Smart Loadshedding Detector
1x Instruction Manual
