Smart Switch Basic, 10A WiFi Wireless Smart DIY Switch can be used to make any device or appliance that uses a mains input of 230V Smart. Simply, 'Wire, Configure and Play'.

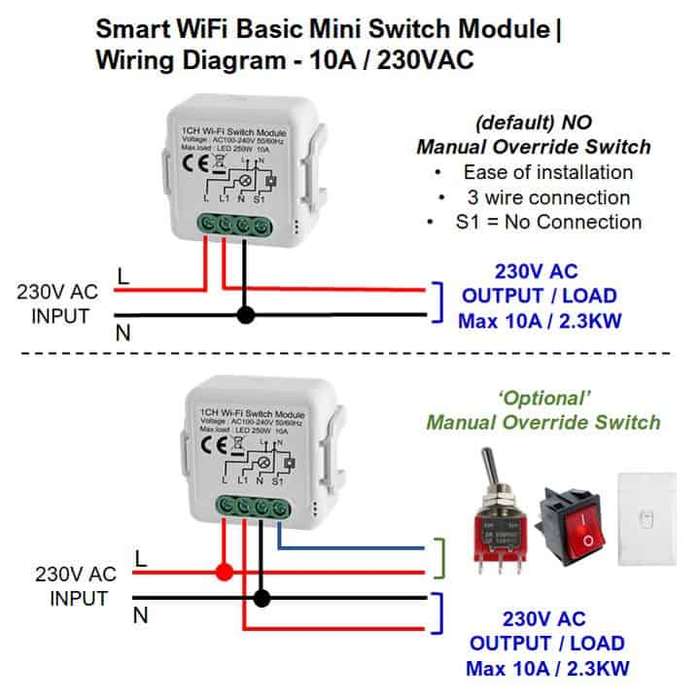

The unit also includes a 'Manual Switch Override' feature if you require both Smart and Manual switch. The wiring of this feature is optional and means that both the smart and manual switching will override each other. See additional images for wiring diagram.
Simply, 'Wire, Configure and Play'.
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Product Features
- Small and Compact design medium current. Wire, Configure and Play.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
Connections
- refer to the additional images for a wiring diagram. The unit has an option to add a manual override physical switch
Typical Uses (but not limited too)
- Smart Switching of any device or appliance that requires current of 10A (2300w max)
- Can also be 'built-in' to any existing wall socket.
Specifications
- Electrical: 110-250V AC
- Power Rating : 1 x 10A, max, 2300W
- Product dimensions：39.2 x 39.2 x 18 (L x H x W in mm). Fits in the space behind your existing light switch.
- Material: White ABS (Fire-retardant)
- Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating Temperature: -10ºC - 50ºC
What's in the Box?
1x Smart WiFi Module 1 Gang
1x Instruction Manual
