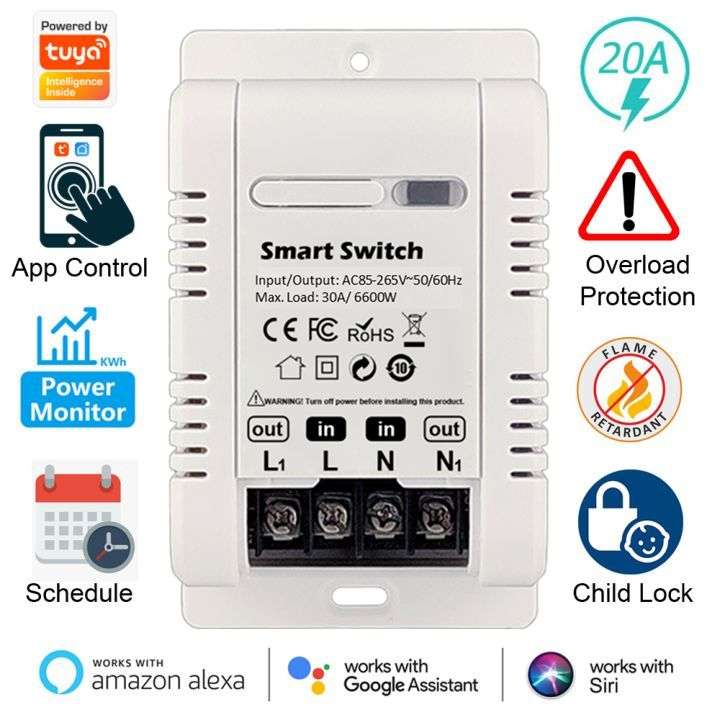

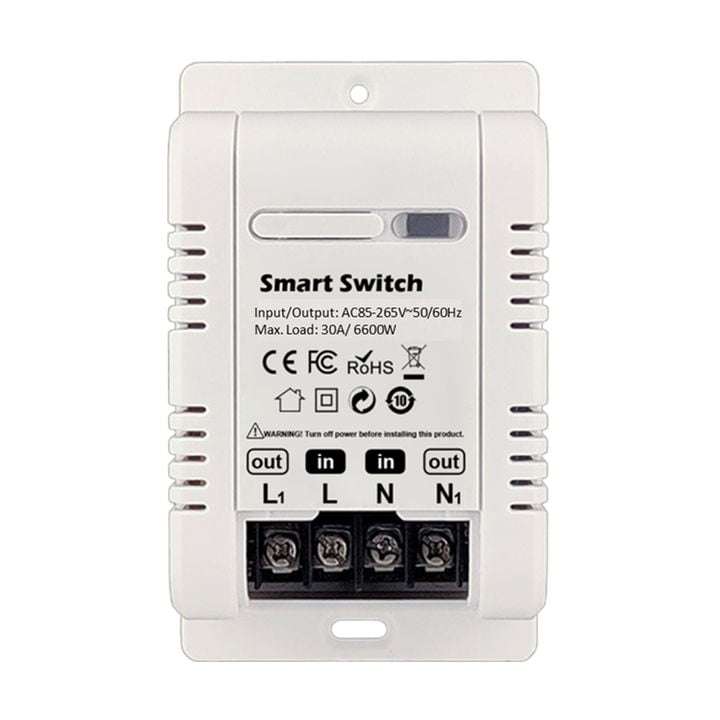

Smart Wi-Fi Switch 30A 6.6kW with Energy Monitor / Electrical Power Consumption.
- Current overload protection
- Voltage (over/under) protection
Used to make any device or appliance that uses a mains input of 230V smart. Simply 'wire, configure & play'. Smart home switch 30A or 6.6kW.
Download: user manual for Smart Switch [click here].
Typical Uses (but not limited to)
Suitable for farms, small holdings, larger homes, or any area where your WiFi range is limited. Irrigation, gate or access control, & alarm systems. The switch can be connected to a relay to switch even larger currents or even 3-phase pumps etc.
- Mounting the switch in a plastic waterproof housing [click here] is preferred (a steel cabinet for example will reduce the range).
- Your standard garage door & gate remotes are 'rolling code' remotes & are not compatible with this switch.
Home Automation is made smart, simple, & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa, Google Home, & IFTTT.
'HOW TO' WIFI SMART YOUTUBE VIDEO [click here] - connect to your cell phone
Product Features
- Small & compact design - high current. Wire, configure, & play.
- Power consumption monitor - keep a check on your consumption - energy bills.
- Set a schedule with the multifunction timer: countdown, schedule, circulate, random or Inching. You can set 1 or more timers to make the boiler turn on/off automatically or run for a period & then close automatically.
- The switch will be turned off automatically to keep safety when the one of following things happens:
a. Current overload protection >20A (including short circuit)
b. Voltage over or under protection >265V, or <85V - Activation dates, days of the week, start time and duration can all be pre-configured via the Smart Life application giving you complete remote control & on/off overwrite.
- Supports voice commands & AI units such as Amazon Alexa Echo & Google Home solutions.
- All your smart devices are connected via a single stable platform the Smart Life App from Tuya.
- The entire Smart Life system performance relies on an 'adequate WiFi' (2.4GHz only) signal. We recommend using our WiFi extender products to ensure comprehensive home & outdoor WiFi coverage. To buy [click here].
Enclosures / Housing
- Need an IP66 Waterproof Enclosure or Housing for the switch?[click here]
Specifications
- Material: ABS Plastic
- Input voltage: AC 85-265V, 50/60Hz
- Maximum load: 30A, 6.6kW
- Internet connection: IEEE 802.11 b/g/n 2.4GHz
- App: Tuya Smart & Smart Life
- Certification: CE/FCC/RoHS
- Item dimensions: 56 x 93 x 30mm
- Net weight: 80g
What is in the Box?
1x Tuya Smart Switch 30A-P
1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of smart products. Supports Alexa Echo Dot, Google Home, IFTTT & more
