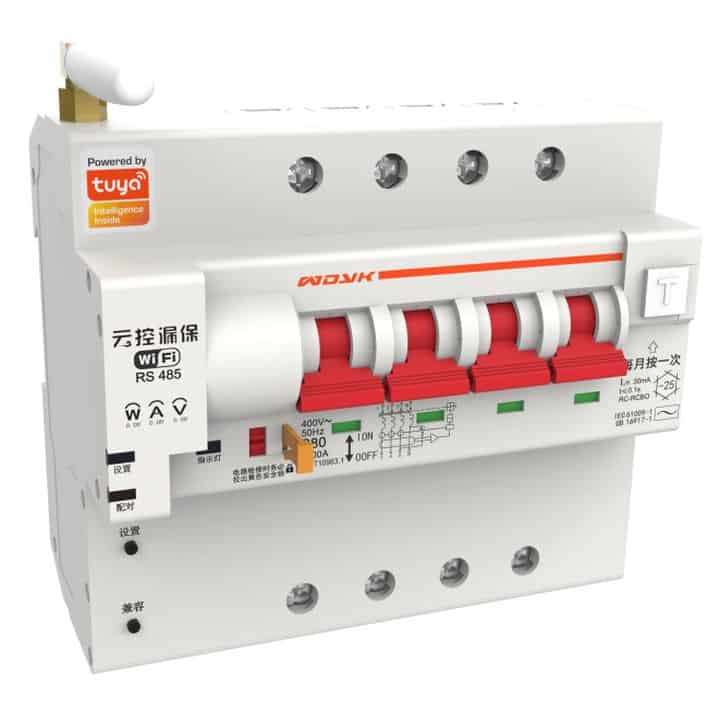

Smart Switch Circuit Breaker, 100A WiFi Wireless Smart 4Pole Isolator with Energy Consumption Monitoring (KWh) is for use with 3Phase 380VAC. Control & Monitor your energy consumption/ usage and verify your utility bill. MCB can be used to make any home, office or factory Smart. Control any high current device remotely via your phone from any location. Allows for both 'smart switching' and manual operation and includes a safety switch.
This unit will normally 'replace' your main existing 4Pole isolator, meaning fitment is before the earth leakage breaker. Note: this unit is larger than a standard MCB and does NOT support 'earth leakage'.
Available in the following ratings (all 230VAC) 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A (stock item). if we don't have your requirement in stock please contact us.
Simply, '*Wire, Configure and Play'.
Detailed Specifications [click here] to download (image format so use zoom function).
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Note:
- DIN RAIL: Supports 35mm DIN rail Mounting.
- If your DB has Samite fittings, then you will need a 'Samite to DIN rail adaptor' [click here] - please see additional images for clarification.
- MCB requires a WiFi signal to operate. Ensure WiFi backup if switching off all power (or only manual switch will be possible)
- Can be wired to smoke or any other detectors to disconnect mains feed etc.
Product Features
- Model: ZJSBL7-100Z series 4Pole 100A Isolator 3 Phase/ RC-RCBO
- RS485 function
- Monitors your overall electrical consumption and reports it to the SmartLife app.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal.
Typical Uses (but not limited too)
- Smart Switching of any home or a specific section of factory / office
- Large pumps and or any machinery
- Can be wired to any existing DB or Distribution Board (occupies 3 slots)
Specifications
|
| Name | 4P Tuya Smart MCB Switch WIFI Circuit Breaker |
| Model | HT-MCB-4PM |
| APP | Tuya Smart/SmartLife |
| Input Voltage | AC 380V - 3phase |
| Output Voltage | AC 380V - 3phase |
| Number of poles | 4 (four) |
| Rated current | 100A |
| Rated short-circuit breaking capacity | lcn=6kA lcs=6kA |
| Applicable places | 4P usually for industrial use |
| Switch mode | Manual Switch/Mobile phone via Tuya App |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | 25°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Dimension | Box:10.5*12*11.6cm |
| Weight | 0.36kg |
What's in the Box?
- 1x Smart Switch 4Pole Circuit Isolator
- 1x Instruction Manual
