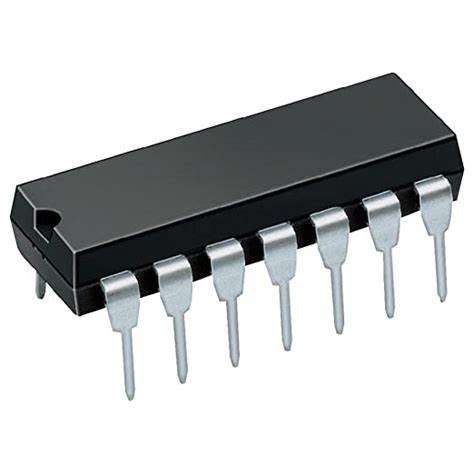

SN74LS00N QUAD 2-input positive NAND gate

SN74LS00N QUAD 2-input positive NAND gate

New 51 available
R28.23
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
EC-277
Bob Shop ID
614718505



SN74LS00N QUAD 2-INPUT POSITIVE NAND GATES

If you are working on a digital logic level circuit, NAND gates are an absolute must to have. Even though these gates can be built making use of AND gates in combination with inverter gates, NAND gates are very common in digital logic level circuits. They reduce the complexity and the size of your circuit quite a bit.

The LS family of logic gates can communicate with the HCT family, which are the more common family since they are able to communicate with almost all the other families of logic level gates. This makes it convenient, because you do not have to stick to a specific family, and you can mix the families as needed when some gates are not available at a store near you.

Technical specifications:

Supply voltage 4.75 - 5.25V
High level input voltage 2V
Low level input voltage 0.8V
Max output current 100mA

Pin layout:

SN74LS00N pin layout
