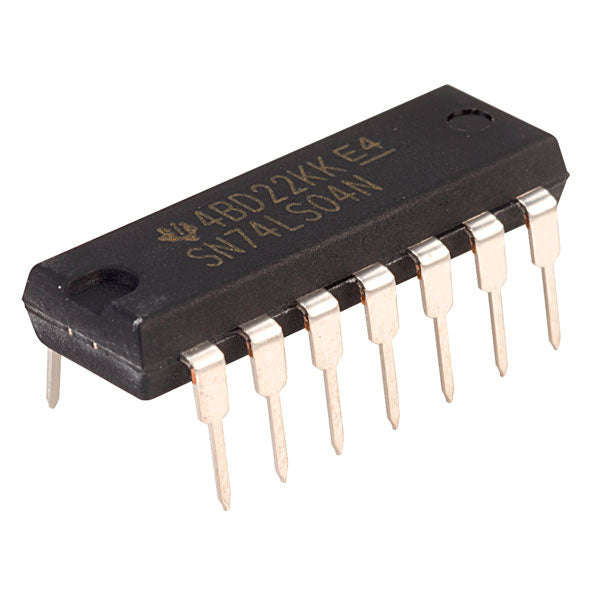

SN74LS04N HEX INVERTER DIP-14

Hex inverters are used in various applications in digital circuits. It can be used to change a digital high signal to digital low signal which is used in many applications such as security systems that are based on digital logic circuits. Hex inverters are also used to build logic gates by using these inverters in combination with other logic gate.

Examples of gates that can be built using inverters:

• AND gate can be built using an OR gate in combination with a hex inverter
• NAND gate using an AND gate with a hex inverter
• XOR gate using 2 AND gates, an OR gate, and a hex inverter
• NOR gate using an OR gate with a hex inverter
• High frequency oscillator

Technical specifications:

Schematic of the inverter gate built with transistors:

Extra resources:

Data sheet for SN74LS04N
