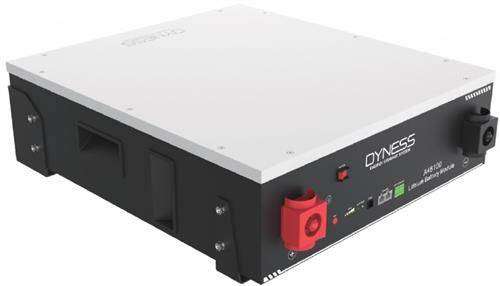

Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module- Advanced BMS With Current Limiting Factor, Battery Module Voltage_ 48V.
Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module- Advanced BMS With Current Limiting Factor, Battery Module Voltage_ 48V, Rated Capacity 100Ah, Maximum Charge Current 75A, Maximum Continuous Discharging 75A, Charging Cut-Off Voltage 54v, Easy Wall or Floor Standing Mount And Shelf Rack Installation, Communication CAN / RS485, Design To Work Perfectly Hybrid Invertors Up To 8KVA, 6000 Cycles Life, Retail Box, 5 Year Limited Warranty.
Product Overview
The Solarix Dyness A48100 Branded 48V 100Ah 4.8KWH LiFePo4 Single Battery Module is a Wall or Floor Mount and Shelf Rack Installation complete that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD.
Designed To Work Perfectly with Hybrid Invertors Up To 8KVA.
Built-in Advanced Battery Management System (BMS) with RS485 and CAN Bus communication.
This unit is designed for single use but can also be expanded in Parallel with up to 40 Battery Packs if more than one LiFePO4 Battery is to be used.
RS485 and CAN Bus fully integrates and communicates with all leading Inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Highlights
Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
Easy Wall or Floor Standing Mount And Shelf Rack Installation
Complete with Advanced Battery Management System (BMS)
Parallel Expansion Connection Up To 40 Packs With Full Communication
Nominal Voltage: 48V
Nominal Rated Capacity 100Ah
Charging Cut-off Voltage: 54.75V
Recommended C Rate: 0.5C
Recommended Continuous/Discharge Current:50A
Maximum Continuous /Discharge Current:75A
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
6000 Cycles Working Life
Specifications
Stock Code SOLA48100
Description Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
Nominal Battery Capacity: 4.8kWh 100Ah
Nominal Battery Voltage: 48VDC
Recommended Charge/Discharge Current: 50A
Maximum Charge/Discharge Current: 75A
Peak Power Charge/Discharge Current 100A (15s)
Maximum Discharge Power 3.84kW
Battery Cell Quantity in series 16 Pieces
High Safety Cell Level Monitoring And Balancing
Charging Cut-off Voltage: 54.75VDC
Communication: CAN/RS485
Configuration Parallel Expansion With Up To 40 Battery Packs Maximum
Range of -20~50 wide working temperature
Dimension 558x545x190mm
Weight: 50kg
