Solarix Infinisolar 25.6V 100Ah Lifepo4 Single

Features
Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
Long Lifespan Up To 10 Years
Cycle Life Up to 6000 cycles @ 80% DOD
Normal Voltage 25.6V
Rated Capacity: 100Ah
Total Usable Energy 2.56KWh
Voltage Range 22.0V to 29.2V
Charge Current 100A
Discharge Current 100A

LCD Display and Battery Level Indicator
Communication CAN Bus 2.0, RS232 and RS485
Parallel Up to 15 units
Wall Mount Chassis

Specifications
Stock Code SOLLP1624100
Description Solarix Infinisolar Branded 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery
Rated Capacity (5HR): 100Ah.
Voltage: 25.6V.
Total Usable Energy 2.56KWh
Discharge Cut-off Voltage: 22.0V.
Equalised Charge Voltage: 29.2V.
Floating Voltage  26.4V -27.2V
Bulk Voltage 27.6V -28.4V
Maximum Continuous Charging Current: 100A.
Maximum Continuous Discharging Current: 100A.
Display: LCD Panel and Battery Level Indicator

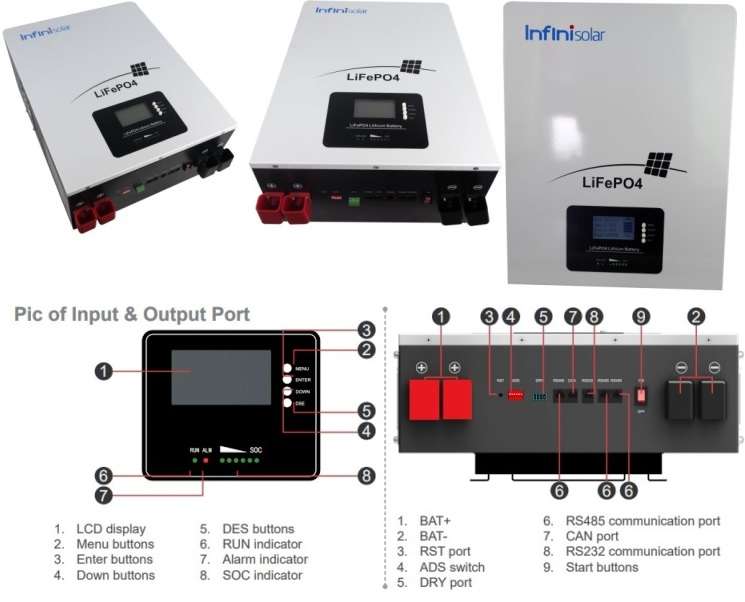

Ports: 2x Positive Socket, 2x Negative Socket, 1x Power switch.
Design Life: -/+ 10 Years.
Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Up to 6000 cycles @ 80% DOD.
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
Dimensions (WxDxH): 450mm x 442mm x 140mm.
Weight: Approx. 23kg
