Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter- Off-Grid Solar Inverter 60A PWM Solar Charge Controller, 3000w Rated Power, Max Watt Output 3.5kW, Peak Efficiency 90%, DC input of 24VDC, AC Output 230VAC at 50/60Hz, DC Output : 27VDC, 60A, Solar Charger Max. Charge Current : 100A, Auto Restart Function, Wall Mounting Unit, and 6 Months Warranty
Product Overview

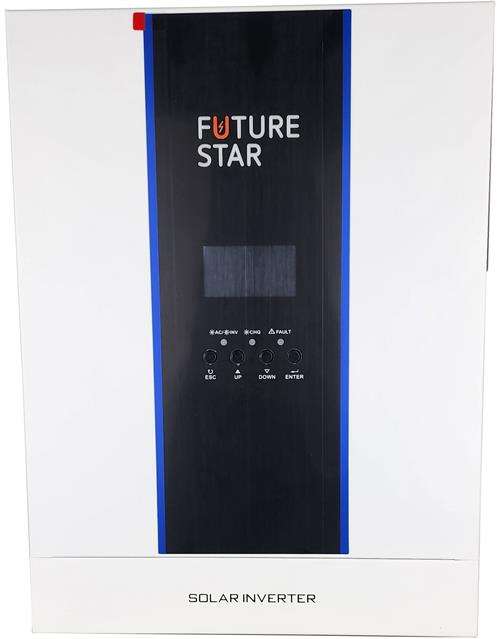

The Solarix FutureStar 3.5KVA Pure Sine Wave Inverter is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. It's comprehensive LCD display offers user-configurable acceptable and .easy-accessible button operation such as battery charging current.AC/solar charger priority, and acceptable input voltage based on different applications.
Features
3.55KVA 24VDC 60A Pure Sine Wave Inverter
3000w Rated Power
Max Watt Output 3.5kW Peak Efficiency 90%
60A PWM Solar Charge Controller
Voltage: 230V AC and Battery Voltage: 24VDC
Nominal PV Voltage 100VDC
AC Charging Current Maximum 60A
Configurable AC Solar Charger Priority Via LCD Setting
Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
Configurable Battery Charging Current Based On Applications Via LCD Setting
Configurable AC Solar Charger Priority Via LCD Setting
Compatible To Mains Voltage Or Generator Power
Auto Restart While AC Is Recovering
Overload/Over Temperature/Short Circuit Protection
Smart Battery Charger Design For Optimized Battery Performance
Cold Start Function
Specifications
Product Code : SOLFS3500VA
Description Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter
Product Type : Solar Inverter
Model : 35KVA 24V Future Star
Rated Power : 3500va
DC Input : 24VDC, 138.9A
AC Output : 230VAC, 50/60Hz, 13A
Battery Type : Lithium/Gel/Lead Acid
AC Input : 230VAC, 50/60Hz, 20 1A
DC Output : 27VDC, 60A
AC Output : 230VAC, 50/60Hz, 13A
Solar Charger Max. Charge Current : 100A
Rated Power : 3000W
Min. Solar Voltage : 40VDC
Max. Solar Voltage : 500VDC
Temperature : -10 ~ 50DC
Protective Class : I
Degree of Protection : IP21
