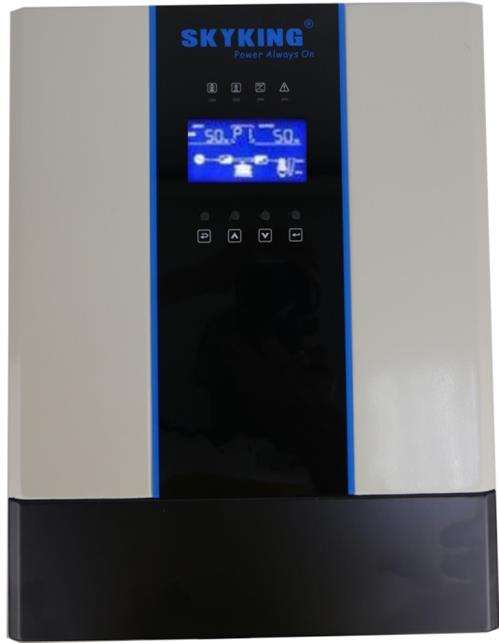

Solarix Skyking 7KVA 48V Hybrid Inverter - 7KW 48V SkyKing Hybrid Off-Grid Inverter,is integrated with a 100A MPPT solar charge controller, Retail Box , No warranty
Product Overview
The Solarix Skyking Pure Sine Wave 7KVA 48V Hybrid Inverter with a 100A MPPT solar charge controller is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Pure Sine Wave Inverter
Parallel Connection Function Up To 12 Units
Built In 100A Mppt Solar Charge Controller
Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
Configurable Battery Charging Current Based On Applications Via LCD Setting
Configurable AC/Solar Charger Priority Via LCD Setting
Compatible To Mains Voltage Or Generator Power
Auto Restart While AC Is Recovering
Overload/ Over Temperature/ Short Circuit Protection
Smart Battery Charger Design For Optimized Battery Performance
Cold Start Function

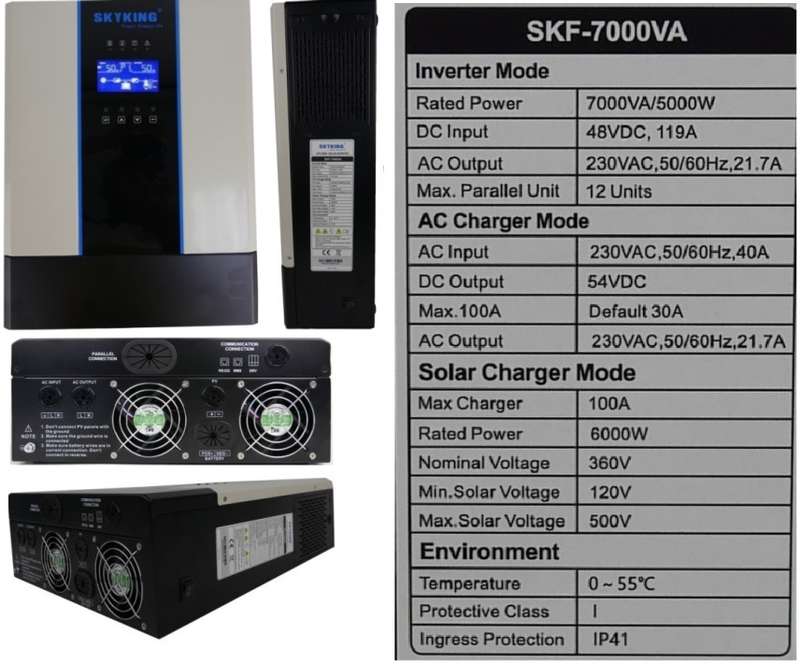

Specifications Stock Code: SKF7000VA
Description: Solarix Skyking 7KVA 48V Hybrid Inverter
AC Input: 230VAC,50/60Hz,40A
DC Output 54VDC
Max. Charge Current 100A, Default 30A
AC Output: 230VAC,50/60Hz
Output Voltage Waveform Pure Sine Wave
Colour: Grey and Black
Inverter Mode
Rated Power: 7000VA/5000W
DC Input: 48VDC, 119A
AC Output: 230VAC 50/60Hz,21.7A
Max. Parallel Unit: Up To 12 Units
Operating Temperature Range: 0-55C
Peak Efficiency 93%
Charger Solar Mode:
Max Input Rated Power: 6000W
Max Input Current 20A
Max Solar Charger: 100A
Min Start-up Voltage 125V
Nominal Operation Voltage: 360V
Min Solar Voltage (VOC): 120V
Max Solar Voltage (VOC): 500VDC
MPPT Voltage range: 120- 450VDC
Ingress Protection: IP41
