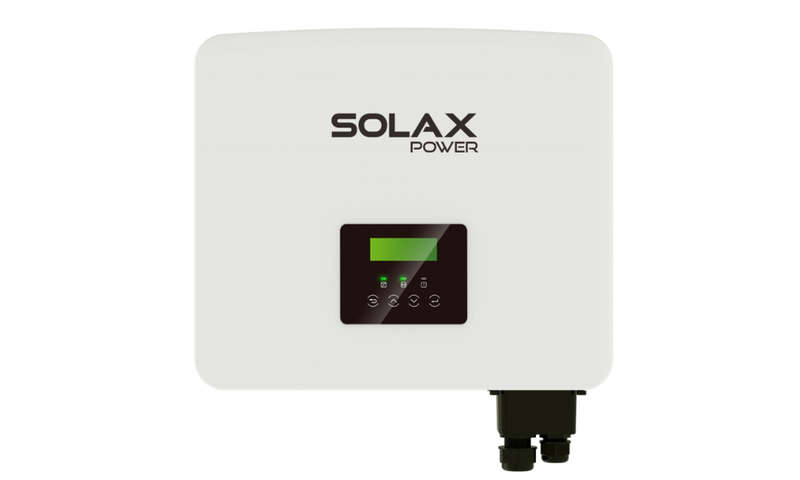

Single Phase Grid Tie
Dual MPPT
Maximum Efficiency: 97.4%
Input
Maximum PV Array Power: 3000Wp / 6000Wp
Maximum DC Voltage: 550V
Nominal DC Operating Voltage: 360V
Maximum Input Current: 11A / 22A
Maximum Short Circuit Current: 12A / 24A
MPPT Voltage Range: 100V 530V
Start Operating Voltage: 120V
Number of MPP Trackers: 2
Strings per MPP Tracker: 1/2
Output AC
Nominal AC Power: 8000VA
Maximum AC Power: 8000VA
Nominal Grid Voltage(AC): 220V/230V/240V; 160V to 285V
Nominal Grid Frequency Range: 50Hz/60Hz; 5
Nominal AC Current: 35A
Maximum AC Current: 45A
Displacement Power Factor: 0.8 leading ~ 0.8 lagging
THDi, rated power: <3%
Environment Limit
Ingress Protection: IP65
Operating Temperature Range: -25C to +60C (derating at 45C)
Maximum Operation Altitude: 2000m
Humidity: 0% to 100% (Non Condensing)
Storage Temperature: -25C to +60C
Communication: Pocket WIFI/Pocket LAN/Pocket GPRS/Meter/RS485/DRM/USB-Upgrade
Certification: IEC62109-1 / IEC62109-2 / AS4777
