Features:

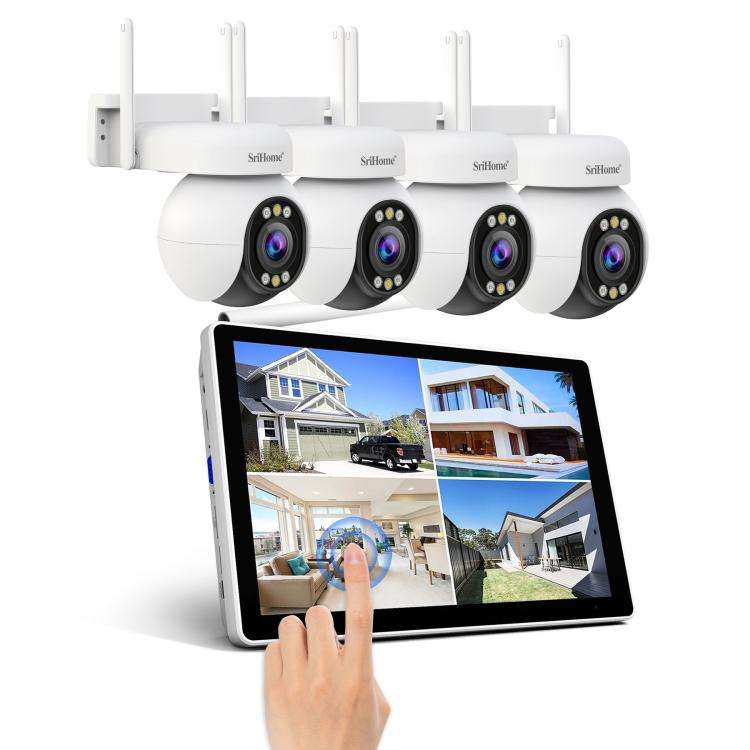

1. 4MP wireless NVR kit with 10.1-inch touchscreen monitor
2. NVR Supports up to 8CH 5MP wireless cameras
3. Supports up to 16TB HDD (2.5inch) storage and playback

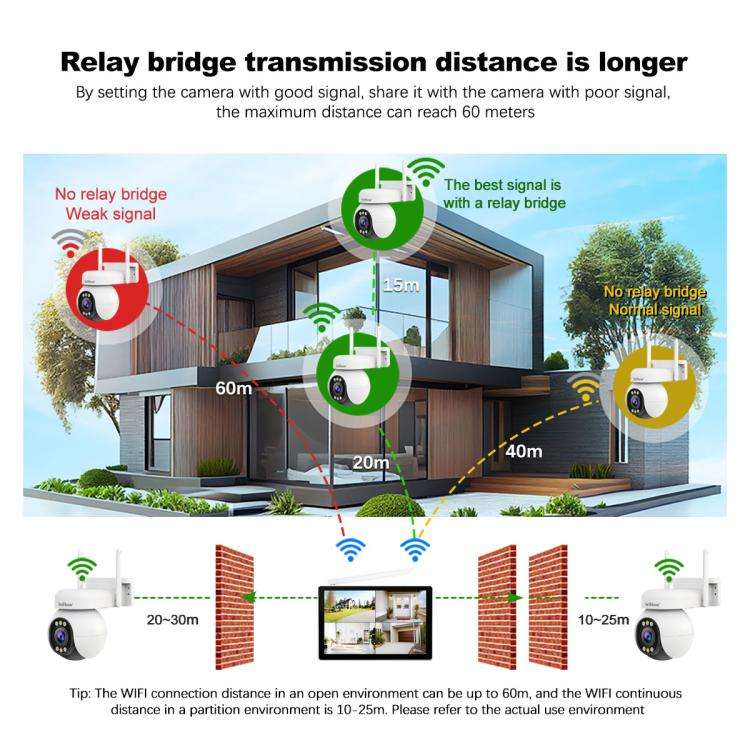

4. Supports wireless bridge mode - WiFi range up to 60 meters
5. Supports H265 compression format, 1TB storage for about 35days
6. Supports 2-way audio, infrared dual light, full-color night vision
7. AI intelligence: supports human tracking (PTZ cam), Siren alarm
8. Supports mobile phone remote monitoring, intercom, playback

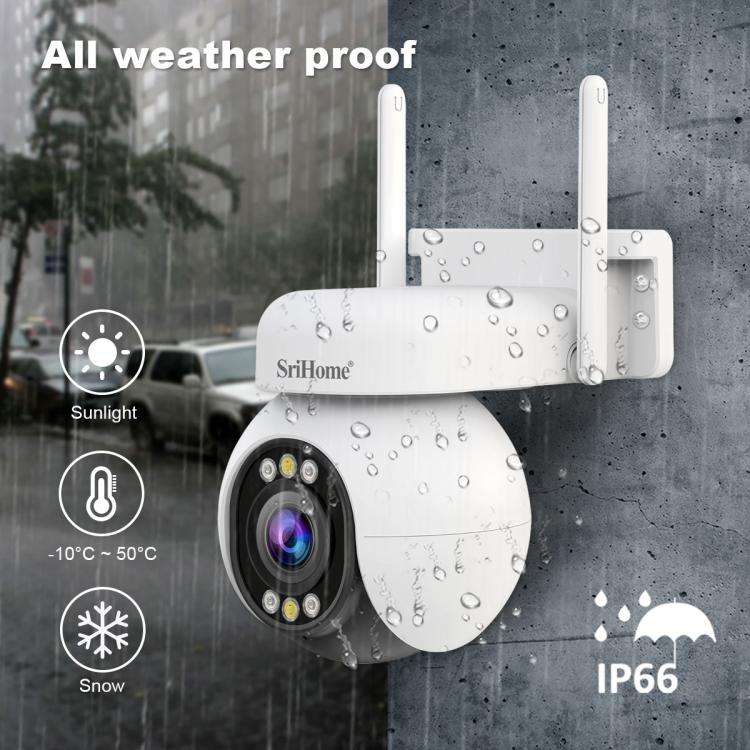

9. Waterproof IP66, indoor and outdoor
Note: IPC051 lens: 2.8-12mm, 5x optical zoom
WiFi NVR parameters: Model: NVS010 (WiFi version):
Display

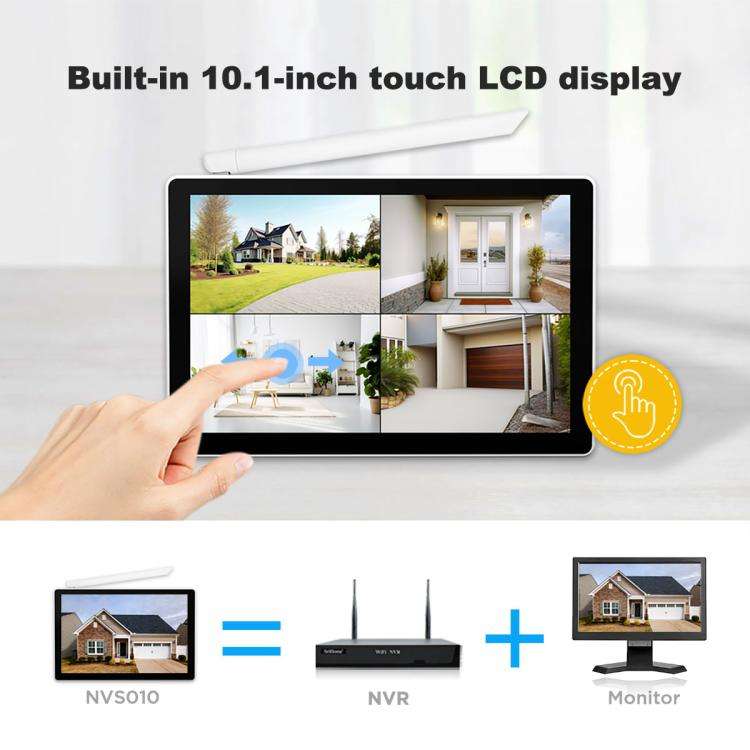

1. Screen size: 10.1-inch LCD screen
2. Resolution: 800xRGB(3)x1280
3. Touch: Support multi-touch
Video
1. Video input: 8 CH
2. Output interface: 1 HDMI, 1 VGA
3. Compression format: H265/H264/Smart264
4. Encoding capability: 8x5M/25fps
5. Decoding capability: 1x5M/25fps (main stream), 8xD1/25fps (secondary stream)
6. Decoding format: H265, H.264
Audio
1. Audio: two-way voice, built-in omnidirectional microphone and speaker
2. Audio output: HDMI and 1-way AUX interface audio output, built-in speaker
3. Decoding format: G.711U, AAC
Hard Disk
1. Interface: 1 SATA interface (2.5 inch hard disk only), SSD & HDD
2. Capacity: Support 16TB max
Recording/playback
1. Recording mode: timing video recording, alarm video recording
2. Playback mode: regular playback and APP playback
3. Backup mode: general backup
Network
1. WiFi: 2.4 G, for standard camera connection only
2. WAN: RJ45 Wired Connection
3. Network service: Support DHCP, DNS, DDNS, NTP, UPNP, etc
Alarm
1. Alarm mode: Motion detection alarm, humanoid detection alarm
2. Alarm reminding: APP push, alarm whistle

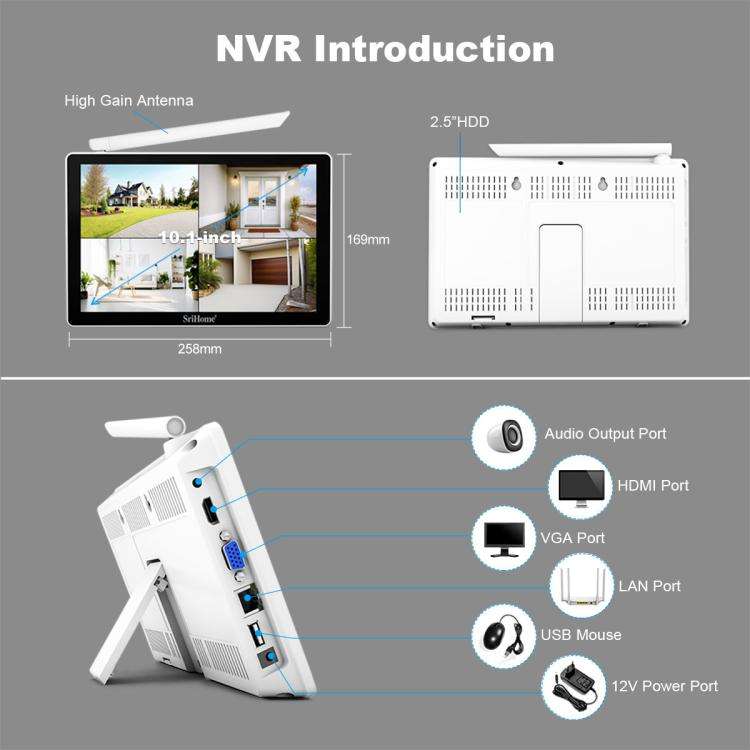

External interface
1. Network interface: 1xRJ45 network interface
2. USB interface: 1xUSB2.0
3. HDMI interface: 1
4. VGA interface: 1
5. Audio interface: 1xAUX audio output interface
6. Power interface: 1xDC 12V 2A (5.5x2.1x10)
APP
1. Support SriHome APP, IOS and Android remote access

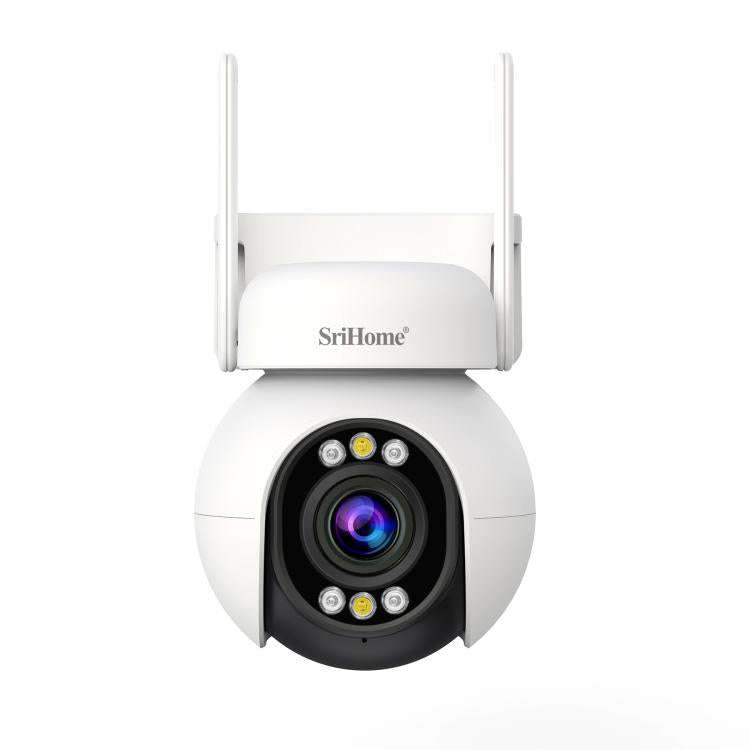

Camera Specification IPC051(4MP WiFi Camera):
System
1. Main processor: Multi-core high-speed processor
2. Sensor: 1/3-inch, 4 MP HD color CMOS sensor
3. Compression format: H.265
Len
1. Lens parameter: Focal length: 4mm, 4mp
2. Visible angle: Angle of view: D 110 H 80 V 58
Video
1. Resolution: 1920P (2560x1440), VGA (480x360)
2. Frame rate: 15 frames
3. IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors
Audio
1. Audio: Built-in Mic and speaker, Support two-way audio
2. Agreement: G711

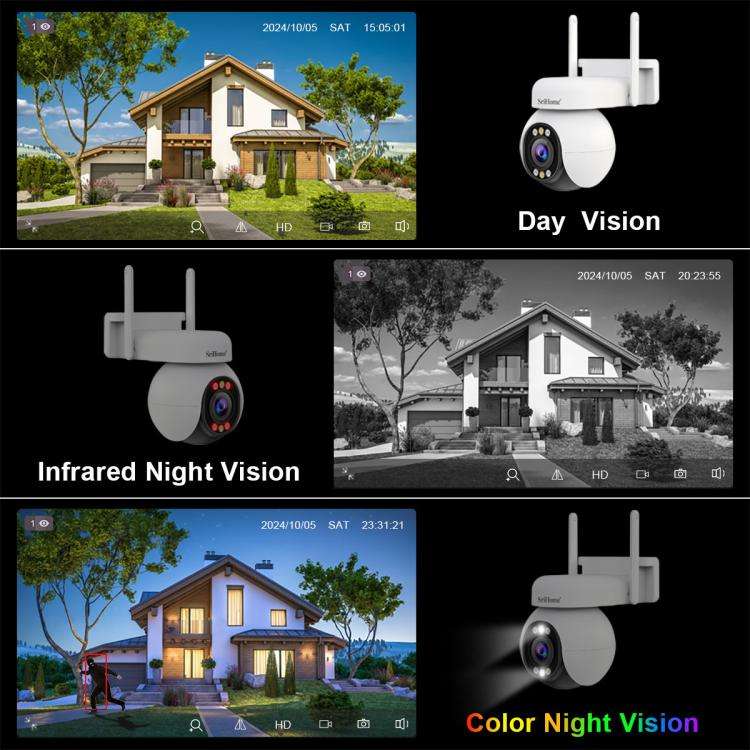

Night Vision
1. Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on and switches to full color night vision
2. White light mode: Working hours 5:00 p.m to 8:00 a.m, the white light turn on, the brightness can be adjusted, and the night vision is full color
3. Infrared mode: White light is turned off and switched to normal night vision

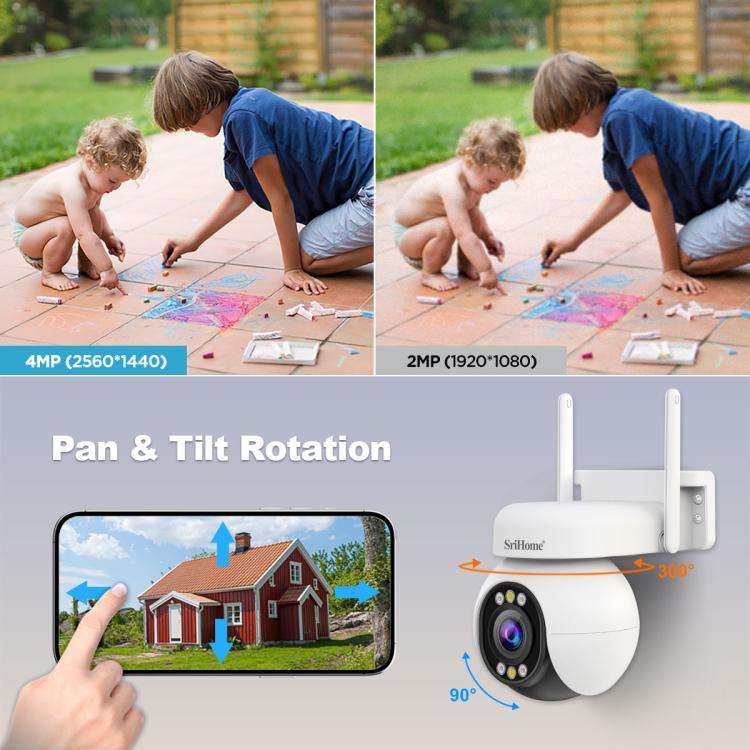

Pan-tilt
1. Tracing: Humanoid tracking is supported
2. Angle of rotation: Horizontal: 340 degree, vertical: 90 degree
Alarm
1. Alarm: Motion detection alarm, humanoid alarm
2. Siren: Alarm whistle can be set
3. Custom alarm area: Support custom motion detection alarm area to improve alarm accuracy
Wireless
1. Wireless: 2.4 G (Connect to NVS001E/NVS010 Host Only)
2. Pairing Mode: QR code pairing, reset button pairing
Others

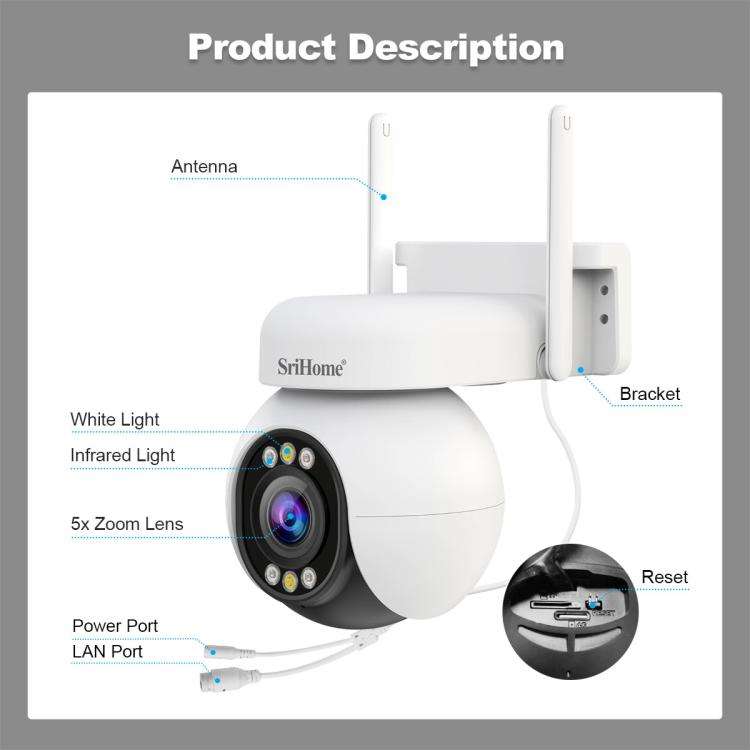

1. Type: plastic PTZ camera, suitable for indoor and outdoor
2. Power adapter: input AC: 100~240V, output DC: 12V
3. Working temperature: -10~50 degree Celsius
4. Weight: 375g
5. Size: 130x110x125 mm

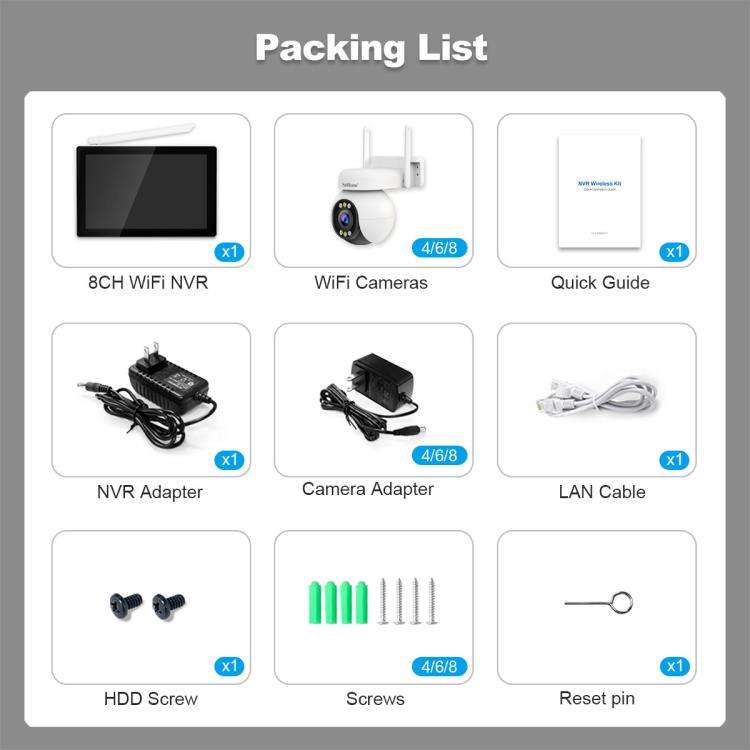

Set list
1. NVS001 host x 1
2. IPC051 camera x 4
3. Power adapter 12V 2A power supply (NVR) x 1, 12V power supply (camera) x 4
4. Screw pack x 5
5. Instruction manual x 1
6. Network cable x 1
