HF Series is new hybrid solar charge inverter, which integrates PV charge &Grid(Generator) charge with AC sine wave output.

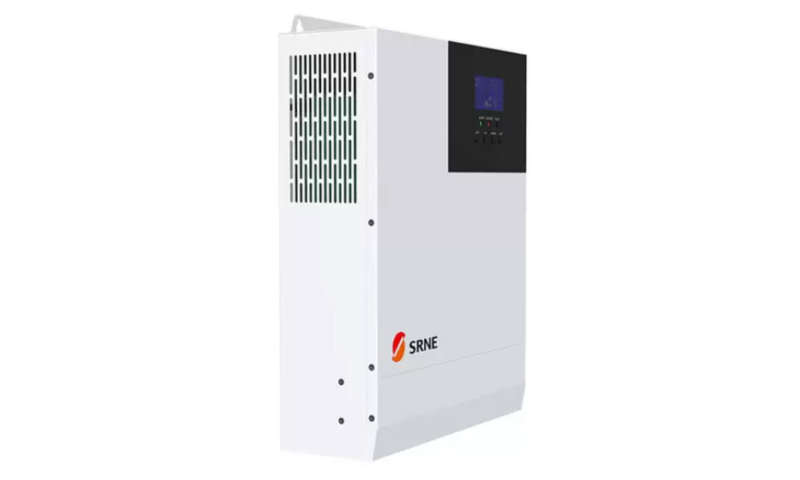

1. SRNE Off-Grid Inverter 3kW 24V 60A HF2430S60-100 adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.
6. Rocker switch for AC output control.
7. Power saving mode, reduce no-load loss.
8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
9. Lithium battery activation function, allow lead-acid battery and lithium battery access.
10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection.
11. Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.
AC Mode
Rated Input Voltage: 230VAC
Input Voltage Range: 90VAC to 280VAC
Frequency: 50Hz / 60Hz (Auto detection)
Overload / Short Circuit Protection: Circuit Breaker
Efficiency: >95%
Conversion Time: 10ms
Maximum Bypass Overload Current: 30A
Inverter Mode
Output Voltage Waveform: Pure Sine Wave
Rated Output Power: 3000W
Power Factor: 1
Rated Output Voltage: 230VAC
Output Frequency: 50Hz / 60Hz
Efficiency: >92%
Loaded Motor Capability: 2HP
Output Short Circuit Protection: Circuit Breaker
Bypass Breaker: 30A
Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
Battery Voltage Range: 20VDC 33VDC
AC Charging
Battery Type: Lead Acid / Lithium
Maximum Charging Current: 80A
Charging Voltage Range: 20VDC to 33VDC
Short Circuit Protection: Circuit Breaker and Blown Fuse
Circuit Breaker: 30A
PV Charging
Maximum PV Open Circuit Voltage: 100VDC
PV Operating Voltage Range: 30VDC to 100VDC
MPPT Voltage Range: 30VDC to 85VDC
Maximum Input PV Power: 1400W
PV Charging Current Range: 0A to 60A (Adjustable)
Charging Short Circuit Protection: Blown Fuse
Wiring Protection: Reverse Polarity Protection
Environment Limit
Ingress Protection: IP20
Operating Temperature Range: -15°C to +55°C
Humidity Range: 5% to 95% (Conformal Coating Protection)
Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
Communication: USB / RS485(WIFI/GPRS) / Dry Node Control
