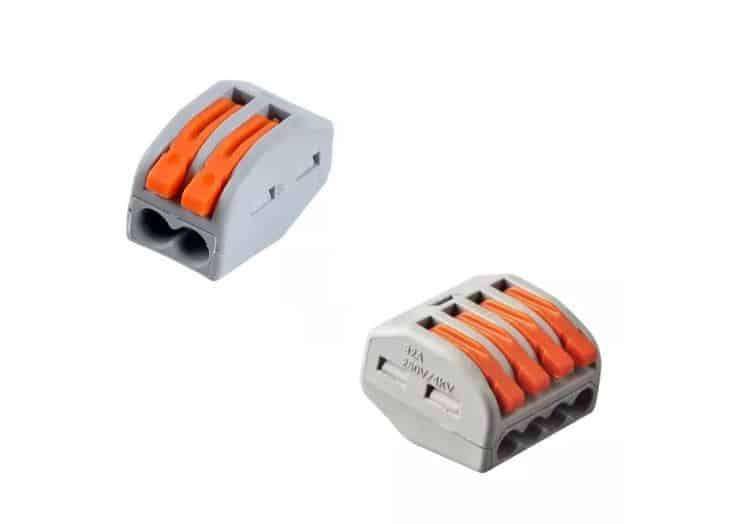

SSA 10pc Grey Compact Quick Lever Spring Electrical connector. 2 and 4Pin

SSA 10pc Grey Compact Quick Lever Spring Electrical connector. 2 and 4Pin

New 2 available
Only 2 left – grab it before it’s gone!
R120.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
9902026636601
Bob Shop ID
649513410

SSA lever electrical connectors are innovative new wiring connection systems for cable connectors. The connector ensuring practical, fast and safe connections for different types and sizes of conductors. It is a connection solution for solid, stranded and fine-stranded conductors.
The integrated lever acts on a spring-loaded sturdy clamp, preventing a connected conductor from accidentally become loose or damaged by fastening. The connectors allow for connecting, disconnect and reconnection in seconds, with no tools other than a wire stripper. A test port in the connector allows for testing of the system in the connector without disconnecting.
Application:
Rated voltage: 400V
Rated surge voltage: 4KV
Nominal current: 32A
Solid wire sizes: 0.08 to 2.5 mm2. / 28 to 12 AWG
Stranded wire sizes: 0.08 to 4 mm2. / 28 to 12 AWG
Required conductor striped length: 9to 10 mm, length indicator on the back of the connector

Material:
Handle: Nylon flame retardant high-temperature resistance
Melting point: 246 °
Shell: PA66 flame retardant high-temperature resistance,
Melting point: 260 °
Conductive material: Copper with tin electroplated
Spring material: Nickel-chromium alloy

Product size:
- VSE 412 2 pin single pole connector 20.5x12.4x14.5mm (LxWxH)
- VSE 414 4 pin single pole connector 20.5x22x14.5mm (LxWxH)

What's in the box
5 x VSE-412A 2 pin connector
5 x VSE-414A 4 pin connector
