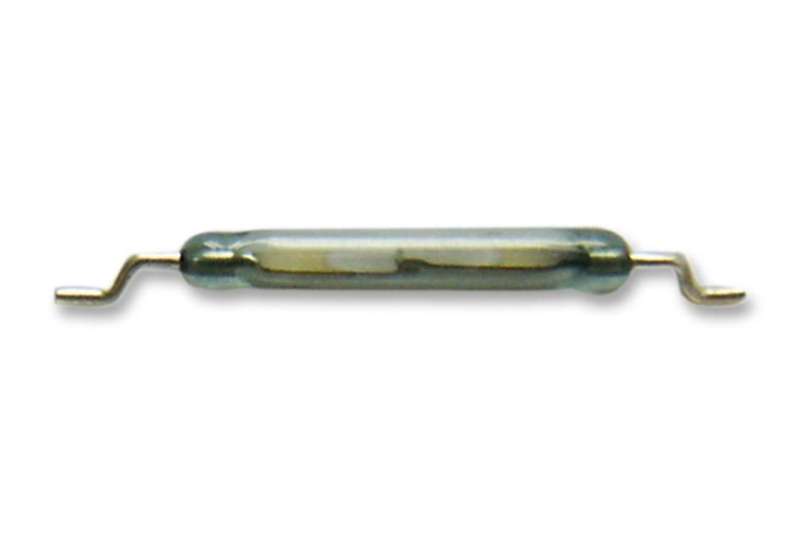

Standexmeder (MK23-46-B-2) Reed Switch, SPST-NO, Surface Mount, 500 mA

Reed Switch, SPST-NO, Surface Mount, 500 mA, 200 V, 10 WProduct InformationProduct Range: -Contact Configuration: SPST-NOSwitch Mounting: Surface MountContact Current Max: 500mASwitching Voltage Max: 200VSwitching Power Max: 10WContact Resistance Max: 0.15ohmOperate AT Min: 10ATOperate AT Max: 15ATProduct OverviewThe MK23-46-B-2 is a SPST-NO miniature Surface-mount Reed Switch with 12mm glasslength and 2mm diameter. It is suitable for air conditioning, gas metering,barcode scanner, security panel and water flow gauge switch applications. It has10W rated power, 200VDC switching voltage and 0.5A DC switching current. It is abare glass version of our surface-mount reed sensors, offering a more economicand compact design as compared to over-moulded reed sensors. It is used inON/OFF control switch, proximity, motion and position detection in generalpurpose applications.Close differentialLong life expectancy-40 to 130°C Operation temperature rangeApplicationsCommercial, Aerospace, Defence, Military, Automotive, Security, Test &Measurement, Sensing & Instrumentation, Industrial
