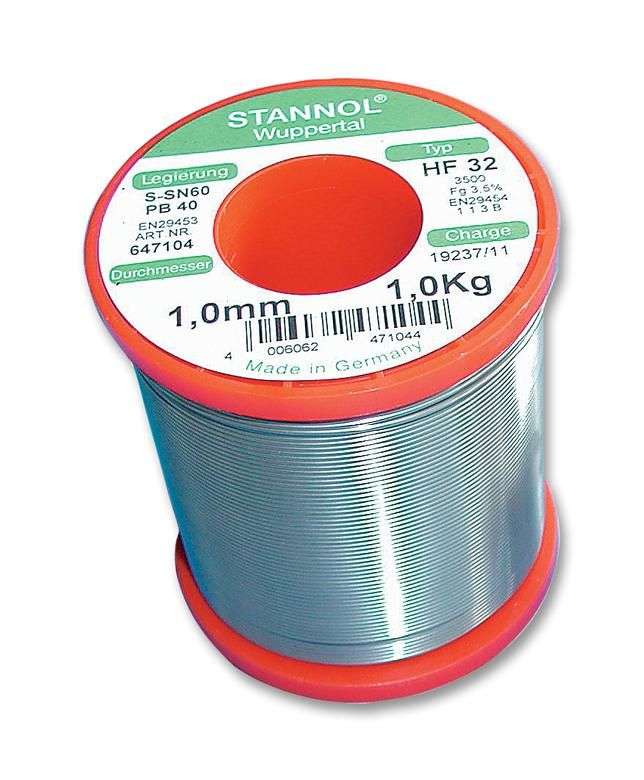

Stannol (HF32 3500 1,0MM 1KG) Solder Wire, 304 Flux, 1 kg

Flux Type: RosinSolder Alloy: 60, 40 Sn, PbExternal Diameter - Metric: 1mmExternal Diameter - Imperial: 0.039"Melting Temperature: 183°CWeight - Metric: 1kgWeight - Imperial: 2.205lbProduct Range: -The HF32 3500 1,0MM 1KG is a Solder Wire that has been developed to meetindustries increasingly stringent quality requirements. It is a flux-coredsolder wire. The activated, halide-free flux meets DIN EN 29454 type 1.1.3 andIEC 61190-1-3 type ROL0 standard. The flux residues are solid and dry and arenot corrosive when tested in accordance with DIN 8516. HF32 can be used forhand-soldering and automatic wire feed operations. For manual soldering, thesoldering iron tips should be temperature-controlled, to prevent excessive heatfrom being applied to the wire. Flux spatter from the formulation is fairly low.Solder wire HF32 meets the requirements of DIN 8516, with respect to surfaceinsulation resistance and electromigration. The flux residues are not corrosiveto non-ferrous metals. If cleaning is necessary for optical or technicalreasons, we recommend the use of the cleaner Stannol Flux-Ex 200B or StannolFlux-Ex 500.
