STMicroelectronics (Steval-MKI175V1) Adapter Board

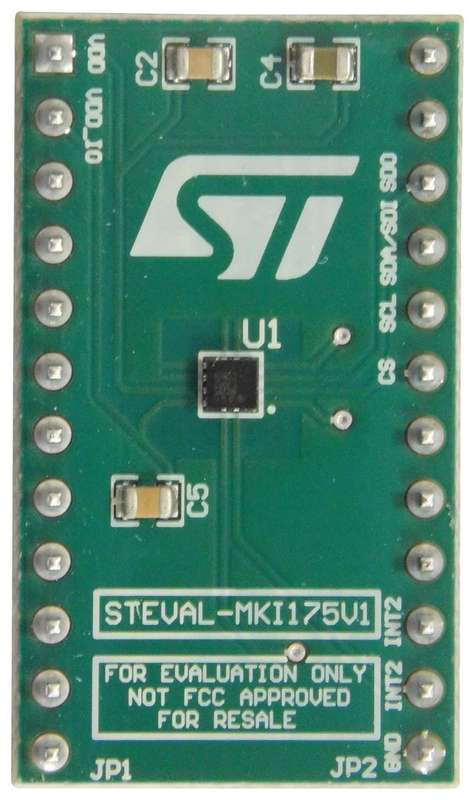

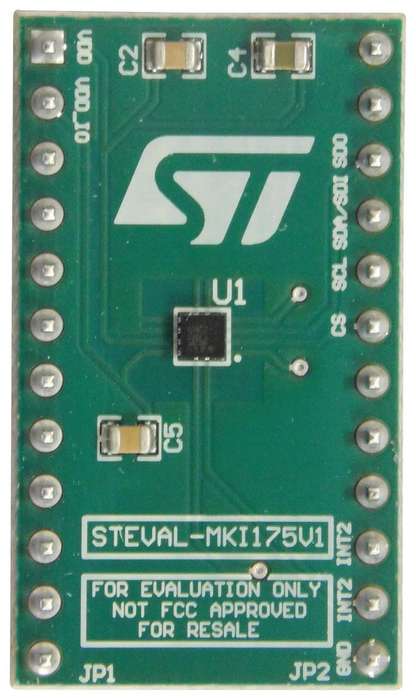

Adapter Board, Motion Sensor Evaluation Motherboards, DIL24,StevalMKI109V2 &STEVAL-MKI109V3Product OverviewSteval-MKI175V1 is a LIS2DE12 adapter board for standard DIL24 socket. It isdesigned to facilitate the evaluation of MEMS devices in the LIS2DE12 productfamily. The board offers an effective solution for fast system prototyping anddevice evaluation directly inside the user application. The Steval-MKI175V1 canbe plugged into a standard DIL24 socket. The adapter provides the completeLIS2DE12 pin-out and comes ready-to-use with the required decoupling capacitorson the VDD power supply line. This adapter is supported by the StevalMKI109V2and Steval-MKI109V3 motherboards, which include a high performance 32bitmicrocontroller functioning as a bridge between the sensor and a PC, on which itis possible to use the downloadable graphical user interface (Unico GUI) ordedicated software routines for customized applications.Complete LIS2DE12 pinout for a standard DIL24 socketFully compatible with the StevalMKI109V2 and Steval-MKI109V3 motherboardsProduct InformationAccessory Type: Adapter BoardFor Use With: StevalMKI109V2 & Steval-MKI109V3 Motion Sensor Eval Motherboards
