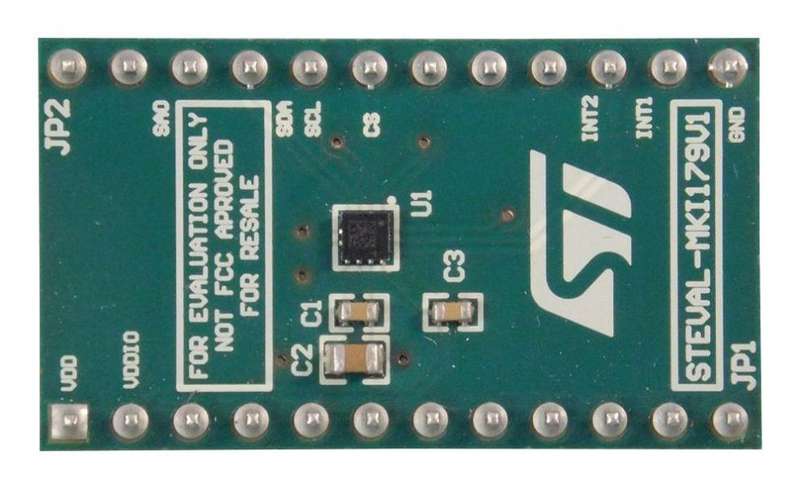

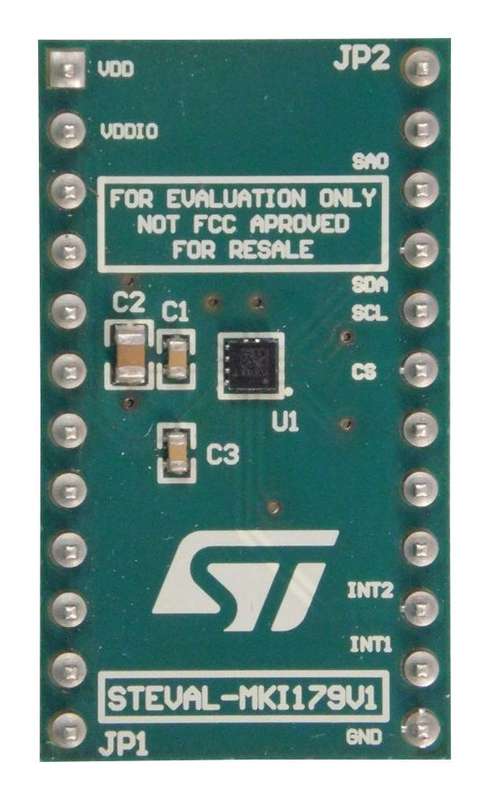

Stmicroelectronics (Steval-MKI179V1) Adapter Board

Adapter Board, LIS2DW12 MEMS Digital Output Motion Sensor 3-Axis "femto"AccelerometerProduct OverviewSteval-MKI179V1 adapter board is designed to facilitate the evaluation of Memsdevices in the LIS2DW12 product family. The board offers an effective solutionfor fast system prototyping and device evaluation directly within the user's ownapplication. The Steval-MKI179V1 can be plugged into a standard DIL 24 socket.The adapter provides the complete LIS2DW12 pin-out and comes ready-to use withthe required decoupling capacitors on the VDD power supply line. This adapter issupported by the StevalMKI109V2 and Steval-MKI109V3 motherboards, which includea high performance 32-bit microcontroller functioning as a bridge between thesensor and your PC, on which it is possible to use the downloadable graphicaluser interface (Unico GUI) or dedicated software routines for customizedapplications.Complete LIS2DW12 pinout for a standard DIL 24 socketProduct InformationAccessory Type: LIS2DW12 Adapter Board for DIL 24 SocketFor Use With: Steval-MKI109V2, Steval-MKI109V3Product Range: -
