Stmicroelectronics (Steval-MKI206V1) Adaptor Board

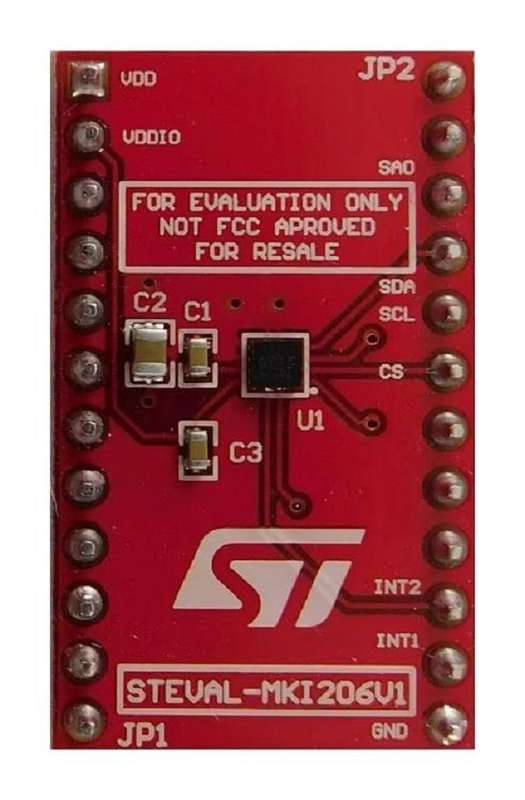

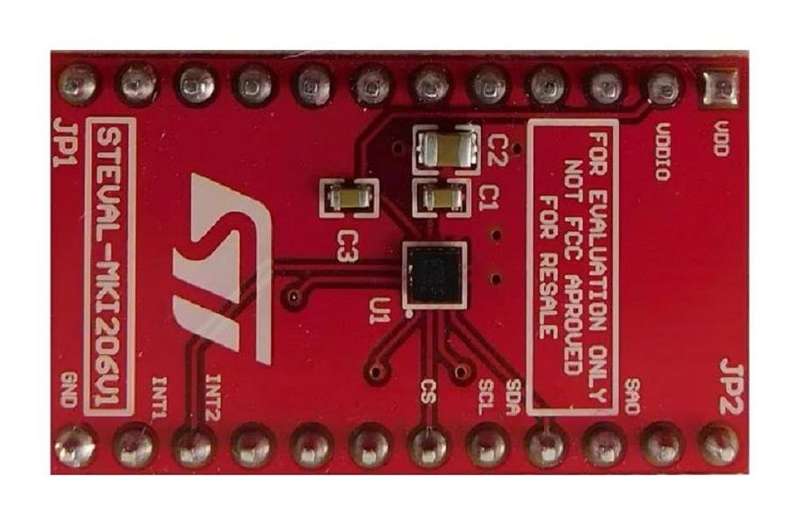

Adaptor Board, StevalLMKI109V3 MotherboardsProduct OverviewSteval-MKI206V1 is a AIS2DW12 adapter board for a standard DIL 24 socket. It isdesigned to facilitate the evaluation of the AIS2DW12 MEMS device allowing fastsystem prototyping and direct device evaluation within your own application. TheSteval-MKI206V1 can be plugged to a standard DIL 24 socket. It provides thecomplete AIS2DW12 pinout and embeds the required decoupling capacitors on theVDD power supply line. The adapter is supported by the Steval-MKI109V3motherboard which includes a high performance 32bit microcontroller functioningas a bridge between the sensor and a PC. Users can use the Unico GUI graphicaluser interface downloadable from www.st.com (STSW-MKI109L for Linux,STSW-MKI109M for Mac OSX or STSW-MKI109W for Windows) or dedicated softwareroutines for customized applicationsComplete AIS2DW12 pinout for a standard DIL 24 socketFully compatible with Steval-MKI109V3 motherboardAccessory Type: Adapter BoardFor Use With: STMicroelectronics StevalMKI109V3 MotherboardProduct Range: -
