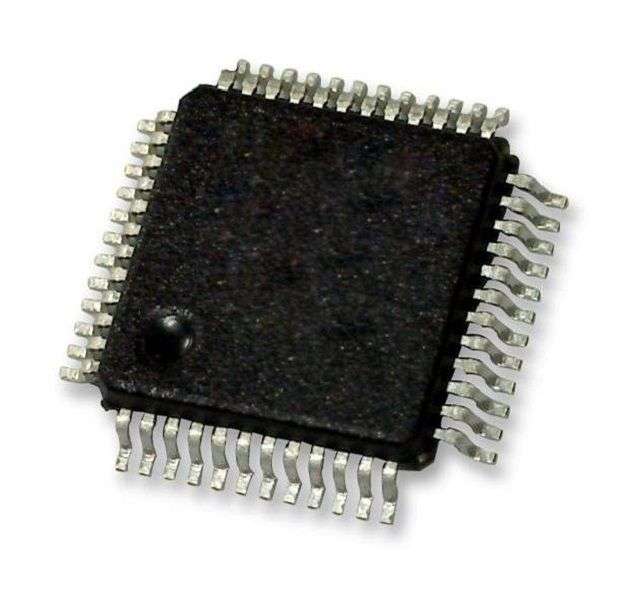

Stmicroelectronics (STM32F072CBT6) ARM MCU, USB Line, 32 bit, 48 MHz

ARM MCU, USB Line, STM32 Family STM32F0 Series Microcontrollers, ARM Cortex-M0,32 bit, 48 MHzProduct OverviewMicrocontroller with ARM 32bit Cortex-M0 CPU, frequency up to 48MHz in 48 pinLQFP package;CRC calculation unit, 128Kb flash, 16KB SRAM;2V to 3.6V voltage range, power-on/power down reset (POR/PDR);4 to 32MHz crystal oscillator, internal 40KHz RC oscillator;37 GPIO, 7-channel DMA controller, 17 capacitive sensing channels;(10 ext + 3 int) 12bit ADC, two analogue comparator, one 12-bit D/A converter(with 2 channels);1 (16bit) advanced control, 5 (16bit) 1 (32bit) general purpose and 2 (1bit)timers;Calendar RTC with alarm and periodic wakeup from stop/standby;Two SPI, two I2C, four USART, CAN, USB and CEC communication interfaces;Serial wire debug (SWD), 96bit unique ID, HDMI CEC wakeup on header reception;Product InformationProduct Range: STM32 Family STM32F0 Series MicrocontrollersNo. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 48MHzProgram Memory Size: 128KBRAM Memory Size: 16KBIC Case / Package: LQFPNo. of Pins: 48PinsMCU Case Style: LQFPNo. of I/O's: 37I/O'sInterfaces: CAN, I2C, SPI, USART, USBEmbedded Interface Type: CAN, I2C, SPI, USART, USBSupply Voltage Min: 2VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F0MSL: MSL 3 - 168 hours
