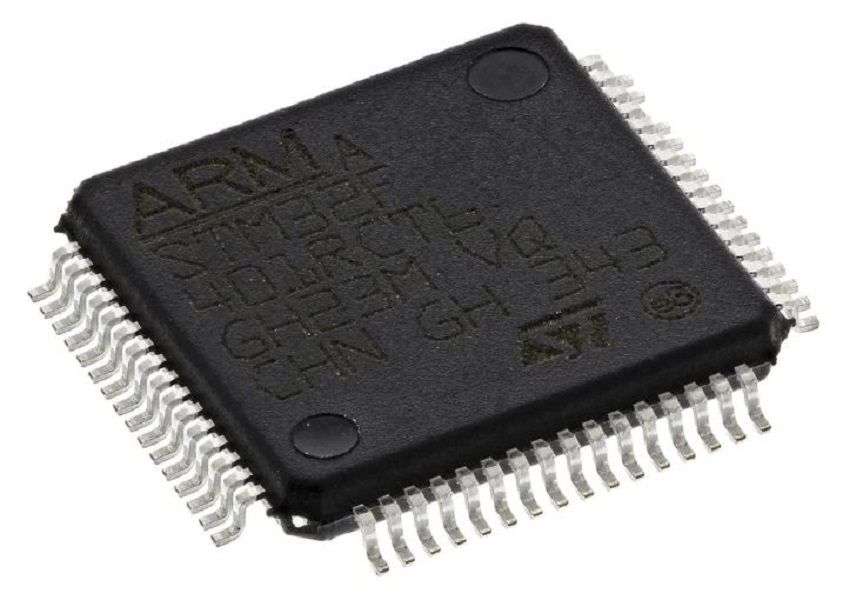

ARM MCU, Dynamic Efficiency Line, STM32 Family STM32F4 Series Microcontrollers,ARM Cortex-M4Product OverviewThe STM32F401RCT6 is a 32-bit 256kB high-performance access line MicrocontrollerUnit features a floating point unit single precision which supports all ARMsingle-precision data-processing instructions and data types. It also implementsa full set of DSP instructions and a memory protection unit which enhancesapplication security. It incorporates high-speed embedded memories and anextensive range of enhanced I/Os and peripherals connected to two APB buses, twoAHB buses and a 32-bit multi-AHB bus matrix. This offers one 12-bit ADC, alow-power RTC, six general-purpose 16-bit timers including one PWM timer formotor control and two general-purpose 32-bit timers and also features standardand advanced communication interfaces.Clock, reset and supply management - POR, PDR, PVD and BORGeneral-purpose DMA - 16-stream DMA controllers with FIFOs and burst supportDebug mode - Serial wire debug (SWD) and JTAG interfacesCortex-M4 embedded trace MacrocellCRC calculation unit96-bit Unique IDRTC - sub second accuracy, hardware calendarApplicationsMotor Drive & Control, Medical, Consumer Electronics, Computers & ComputerPeripherals, Communications & Networking, Industrial, Security, Imaging, Video &Vision, HVACProduct InformationProduct Range: STM32 Family STM32F4 Series MicrocontrollersDevice Core: ARM Cortex-M4No. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 84MHzCPU Speed: 84MHzProgram Memory Size: 256KBRAM Memory Size: 64KBIC Case / Package: LQFPNo. of Pins: 64PinsMCU Case Style: LQFPNo. of I/O's: 50I/O'sInterfaces: I2C, I2S, SPI, UART, USBEmbedded Interface Type: I2C, I2S, SPI, UART, USBSupply Voltage Min: 1.7VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F4MSL: MSL 3 - 168 hours
