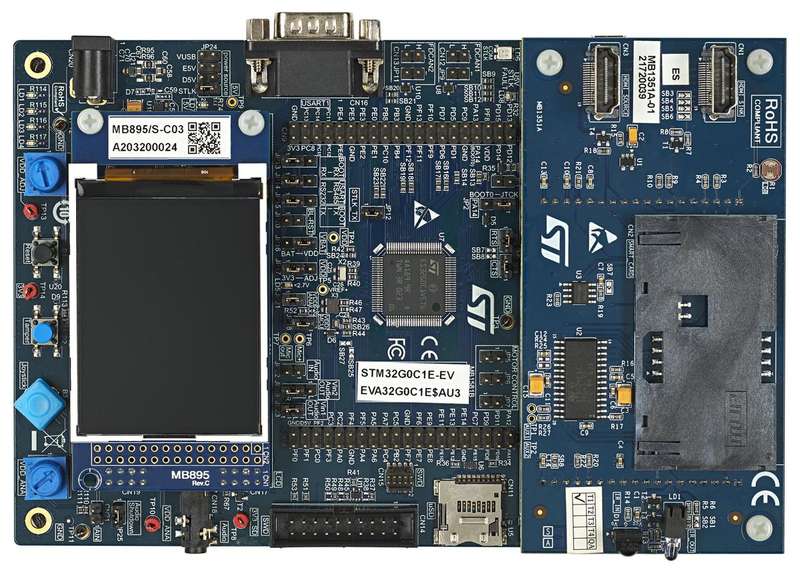

STMicroelectronics (STM32G0C1E-EV) Development Board, STM32G0C1VET6, 32bit

Product InformationSilicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: STM32G0C1VET6Kit Contents: Evaluation Board STM32G0C1VET6Product Range: -Product OverviewSTM32G0C1E-EV evaluation board is a high-end development platform for theSTM32G0C1VET6 microcontroller. The full range of hardware features on theSTM32G0C1E-EV evaluation board includes the mother board, the legacy peripheraldaughterboard and the USB-C® and Power Delivery daughterboard. The boardintegrates an ST-LINK/V2-1 as an embedded in-circuit debugger and programmer forthe STM32 MCU. The daughterboard and extension connectors provide an easy way toconnect a daughterboard or wrapping board for the user's specific application.The USB-C® and Power Delivery daughterboard features two independent USB-C®ports controlled by STM32G0. USB-C® port 1 is dual role power (DRP) and canprovide up to 45 W of power. USB-C® port 2 is sink only. Both support the USB PDprotocol and the alternate mode functionality. Application firmware examples areprovided to evaluate USB-C® technology through various use cases.STM32G0C1VET6 Arm® Cortex®-M0+ core MCU with 512KB of flash and 144KB RAM inLQFP100MCU voltage choice fixed at 3.3V or adjustable from 1.65V to 3.5VI2C compatible serial interfaceRTC with backup battery8GB or more SPI interface microSD card4 colour user LEDs and one LED as MCU low-power alarmReset, tamper and user buttons4-direction joystick with selection buttonOn-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capabilityComprehensive free software libraries and examples available with theSTM32CubeG0 MCU Package
