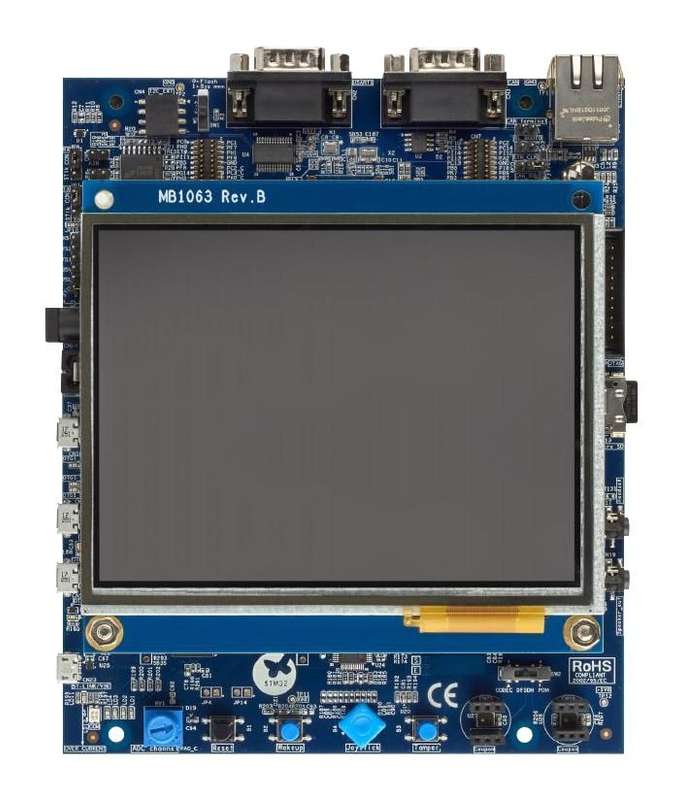

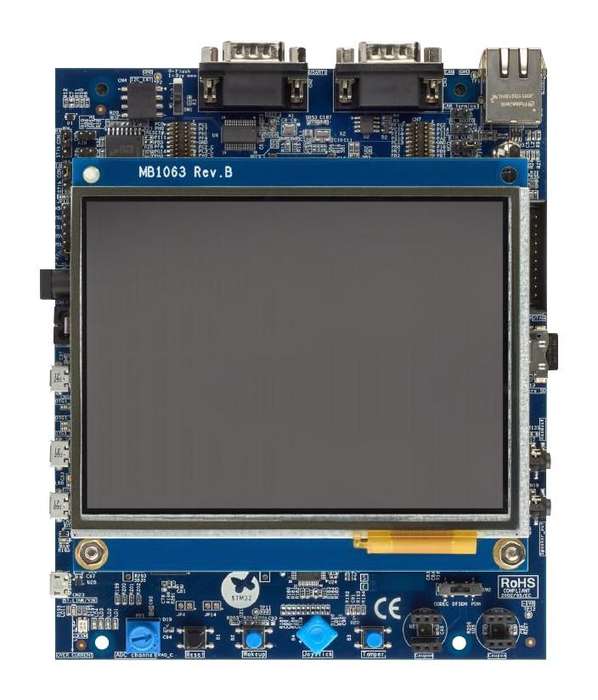

STMicroelectronics (STM32H743I-EVAL2) Evaluation Board, STM32H743 MCU

Product InformationSilicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32H7Core Architecture: ARMCore Sub-Architecture: Cortex-M7Silicon Core Number: STM32H743XIH6UKit Contents: Evaluation Board STM32H743XIH6UProduct Range: -Product OverviewEvaluation board with STM32H743XI. This evaluation board is high end developmentplatforms for the Arm® Cortex®-M7-based STM32H743XI microcontroller. It providesaccess to all the STM32 peripherals for user applications and include anembedded STLINK-V3E debugger/programmer. The full range of the STM32H743I-EVAL2hardware features helps develop applications and evaluate all peripherals USBOTG_HS and FS, Ethernet, FD-CAN, USART, audio DAC and ADC, digital microphone,SRAM, SDRAM, NOR flash memory, twin Quad-SPI flash memory, microSD 3.0 card and5.7" 640×480 TFT colour LCD with touchscreen. The expansion connectors providean easy way to add specialized features, while ETM trace is supported throughexternal probes.5.7" 640×480 TFT colour LCD with touchscreenEthernet compliant with IEEE-802.3-2002, USB OTG-HS and OTG-FSI2C compatible serial interface, RTC with rechargeable back-up batterySAI audio DAC, ST-MEMS digital microphones, joystick with 4-direction controland selector8Gbyte (or more) SDIO3.0 interface microSD card8M×32bit SDRAM, 1M×16bit SRAM and 8 M×16bit NOR flash memory1Gbit twin quad-SPI NOR flash memory or two 512Mbit quad-SPI NOR flash memoriesPotentiometer, 4 colour user LEDs, reset, wake-up, tamper or key buttonsSupport of a wide choice of IDEs including IAR, Keil®, GCC-based IDEsFlexible power-supply options ST-LINK USB VBUS or external sources
