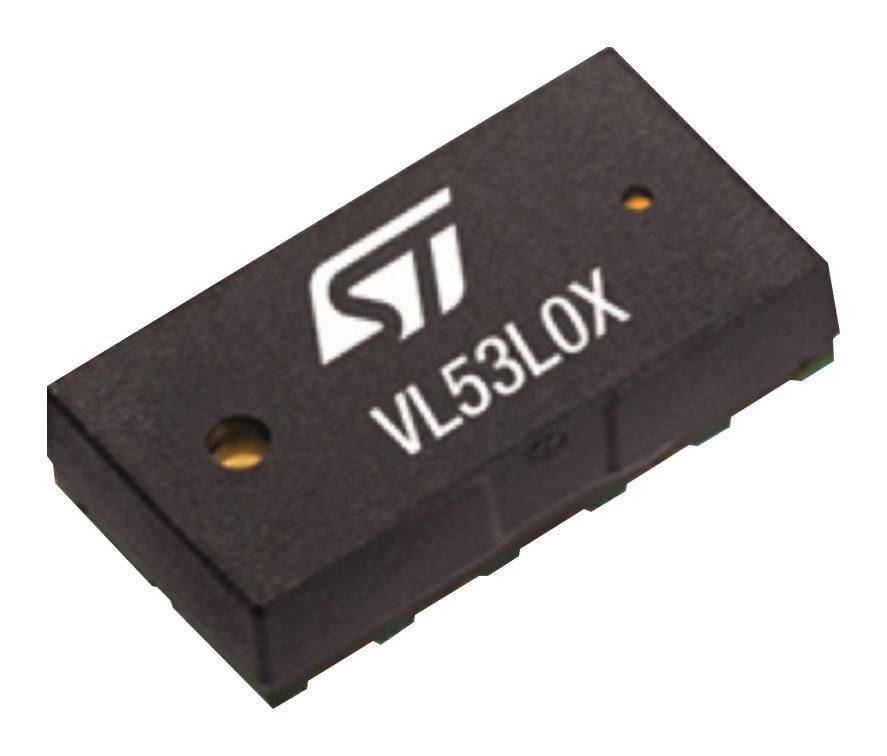

Stmicroelectronics (VL53L0CXV0DH/1) Gesture Detection Sensor, Digital

Gesture Detection Sensor, Digital, 2000mm, LGA, 12 Pins, 2.6 V, 3.5 VProduct OverviewThe VL53L0X is a new generation Time-of-Flight(ToF) laser-ranging module housedin the smallest package, providing accurate distance measurement whatever thetarget reflectances unlike conventional technologies. It can measure absolutedistances up to 2m, setting a new benchmark in ranging performance levels,opening the door to various new applications. The VL53L0X integrates aleading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST's secondgeneration FlightSenseTM patented technology. The VL53L0X's 940nm VCSEL emitter(Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye,coupled with internal physical infrared filters, it enables longer rangingdistance, higher immunity to ambient light and better robustness to cover-glassoptical cross-talk.Reported range is independent of the target reflectanceOperates in high infrared ambient light levelsAdvanced embedded optical cross-talk compensation to simplify cover glassselectionNo additional opticsSingle power supplyI2C interface for device control and data transferXshutdown (Reset) and interrupt GPIOProgrammable I2C addressProduct InformationIC Output Type: DigitalSensing Distance: 2000mmSensor Case Style: LGANo. of Pins: 12PinsSupply Voltage Min: 2.6VSupply Voltage Max: 3.5VOperating Temperature Min: -20°COperating Temperature Max: 70°CProduct Range: VL53L0XMSL: MSL 3 - 168 hours
