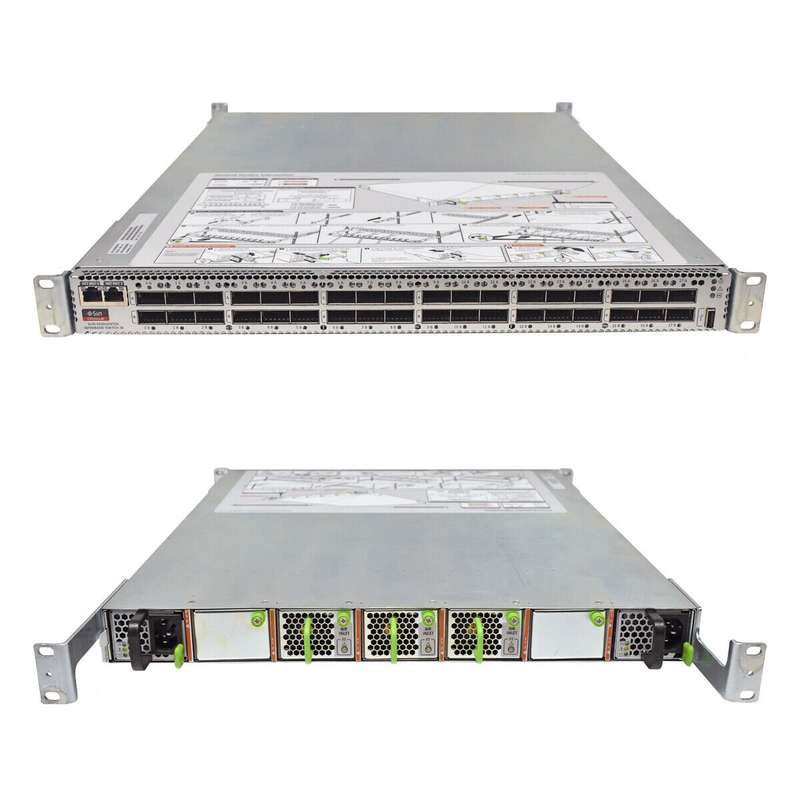

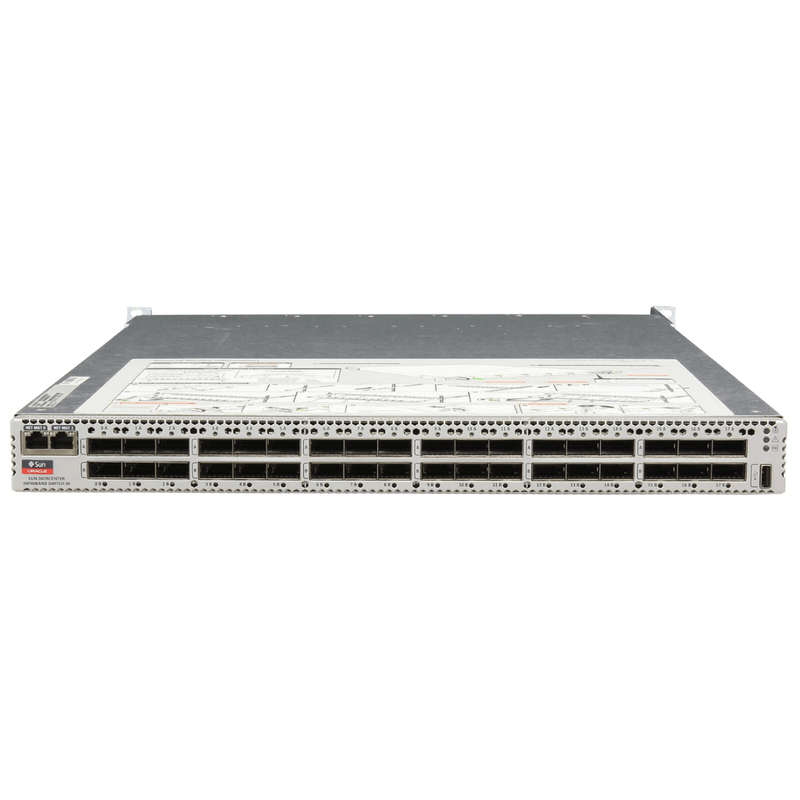

The refurbished Sun Oracle Datacenter InfiniBand Switch 36 delivers industry-leading low-latency, high-throughput connectivity for Oracle's server and storage clusters. Designed to meet the demanding performance needs of modern datacenters, this 1U switch provides 36 QSFP ports with support for QDR, DDR, and SDR InfiniBand speeds.
Ideal for scalable high-performance computing (HPC) and enterprise cloud environments, it supports up to 2.3Tbps bi-directional throughput and includes an embedded InfiniBand management module for seamless integration, monitoring, and management of complex fabric topologies.
Key Features & Benefits
36 x QSFP ports supporting QDR/DDR/SDR InfiniBand for flexible high-speed connectivity
Up to 2.3 Tbps bidirectional throughput and 100ns latency for ultra-fast data transfers
Integrated subnet manager with support for traffic isolation, QoS, and virtual clusters
Redundant hot-swappable power supplies and fans ensure continuous availability
Advanced system monitoring via Sun ILOM and support for multiple protocols including SNMP, SSH, and IPMI
Rear-to-front airflow design suited for datacenter cooling optimization
Ideal for building scalable, high-performance Oracle server clusters or HPC fabrics
Ideal Uses
High-performance computing environments requiring ultra-low latency and high bandwidth
Oracle Sun server and storage clusters with InfiniBand interconnects
Enterprise datacenters needing flexible fabric configurations and redundant management
Research institutions or cloud providers with InfiniBand-based workload acceleration
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Form Factor: 1U Rackmount
Ports: 36 x QSFP (4x) InfiniBand ports
Data Rate: QDR (40Gbps), DDR, SDR compatible
Throughput: 2.3 Tbps bidirectional
Latency: 100 ns (QDR)
Management: ILOM, IPMIv1.5/2.0, SNMP v1/v2c/v3, SSH, HTTP/S
Virtual Lanes: 8 data lanes, 1 management lane
MTU: 4,096 bytes
Power Supply: Dual hot-swappable, 320W max
Cooling: Rear-to-front airflow with redundant fans
Dimensions (HxWxD): 44.5 x 445 x 609.6 mm
Weight: 11.4 kg
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch, Power Cable
