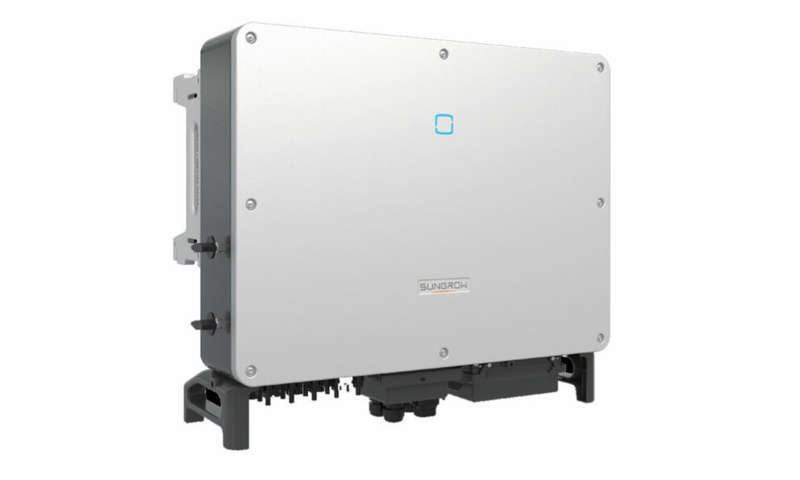

Sungrow offer a wide range of string inverters and central inverters designed for larger MW scale installations. The Sungrow 33kW Pv Inverter 1000v 3x MPPT next generation inverter has an impressive list of features that cements it as one of the most advanced inverters on the market.
| MODEL | SG33CX |
| INPUT(DC) | |
| Max. PV input voltage | 1100 V ** |
| Min. PV input voltage / Start-up input voltage | 200 V / 250 V |
| Nominal PV input voltage | 585 V |
| MPP voltage range | 200 1000 V |
| No. of independent MPP inputs | 3 |
| No. of PV strings per MPPT | 2 |
| Max. PV input current | 3 * 26 A |
| Max. DC short-circuit current | 3 * 40 A |
| OUTPUT(AC) | |
| AC output power | 33 kVA @45 , 400Vac / 36.3 kVA @ 40 ,400Vac 33 KVA @ 50 , 415Vac / 36.3 KVA @ 45 , 415Vac |
| Max. AC output current | 55.2 A |
| Nominal AC voltage | 3 / N / PE, 230 / 400 V |
| AC voltage range | 312 528 V |
| Nominal grid frequency / Grid frequency range | 50 Hz / 45 55 Hz, 60 Hz / 55 65 Hz |
| Harmonic (THD) | < 3 % (at nominal power) |
| DC current injection | < 0.5 % In |
| Power factor at nominal power / Adjustable power factor | > 0.99 / 0.8 leading 0.8 lagging |
| Feed-in phases / AC connection | 3 / 3 |
| EFFICIENCY | |
| Max. efficiency / European efficiency | 98.6 % / 98.3 % |
| PROTECTION AND FUNCTION | |
| DC reverse polarity protection | Yes |
| AC short circuit protection | Yes |
| Leakage current protection | Yes |
| Grid monitoring | Yes |
| Ground fault monitoring | Yes |
| DC switch | Yes |
| AC switch | No |
| PV string monitoring | Yes |
| Q at night function | Yes |
| PID recovery function | Yes |
| Arc fault circuit interrupter (AFCI) | Yes |
| Overvoltage protection | DC Type I + II / AC Type II |
| GENERAL DATA | |
| Dimensions (W*H*D) | 702*595*310mm |
| Weight | 50 kg |
| Isolation method | Transformerless |
| Degree of protection | IP66 |
| Night power consumption | 2 W |
| Operating ambient temperature range | -30 to 60 (> 45 derating) |
| Allowable relative humidity range (non-condensing) | 0 100 % |
| Cooling method | Smart forced air cooling |
| Max. operating altitude | 4000 m (> 3000 m derating) |
| Display | LED,Bluetooth+APP |
| Communication | RS485 / Optional: WLAN, Ethernet |
| DC connection type | MC4 (Max. 6 mm²) |
| AC connection type | OT or DT terminal (Max.70 mm²) |
| Compliance | IEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105:2018, VDE-AR-N 4110:2018, IEC 61000-6-3, EN 50549-1/2, AS/NZS 4777.2:2015, CEI 0-21 2019,CEI0-16 2019, VDE 0126-1-1/A1 VFR 2019, UTE C15-712-1:2013, DEWA, UNE 206007-1/RD 1699, UNE 217001, Israel certificate, G99 |
| Grid Support | Q at night function, LVRT, HVRT,active & reactive power control and power ramp rate control |
