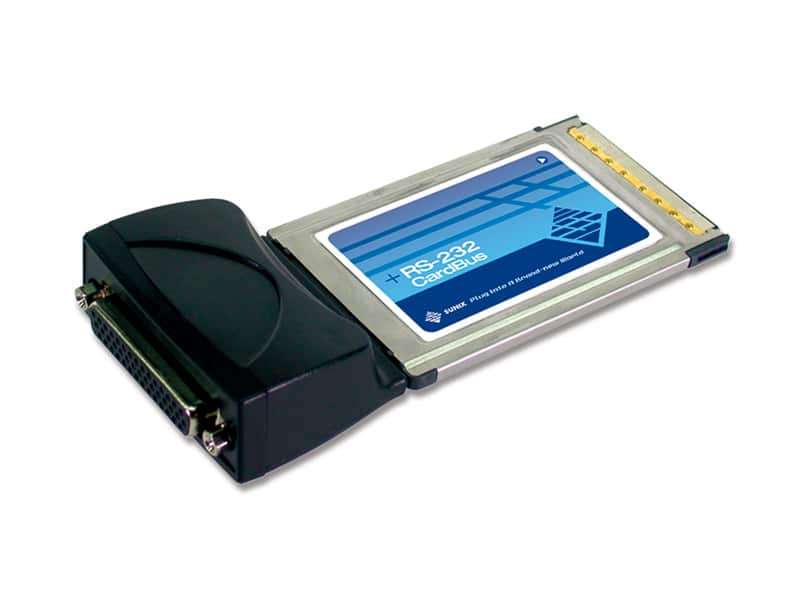

Sunix CBS4009 4-port RS-232 CardBus

Description

Serial Communication:

• Interface: RS-232
• No. of Port: 4-port
• FIFO: 32 byte (Hardware)
• Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
• Baud rate: 50 bps to 230.4 Kbps
• Data bit: 5,6,7,8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS (Hardware), XON/XOFF(Software)
• Protection: ±15KV Human Body Model (HBM), ±15KV IEC1000-4-2 Air Gap Discharge, ±8KV IEC1000-4-2 Contact Discharge

Driver Support:

• Microsoft Windows: 2000/XP/Vista (X86/X64), Embedded: XP Embedded, Server: NT/2003/2008 (X86/X64)
• Linux: Linux 2.x / 3.x / 4.x

Regulatory Approvals:

• Hardware: CE, FCC, VCCI, BSMI
• Software: Microsoft WHQL Window XP

Environment:

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Operating Humidity: 5% to 95% RH
• Storage Temperature: -20 to 85 °C (-4 to 185 °F)

Connection Cable:

• Cable: DB44 Female to 4-port DB9/DB25 Male t

Dimension (Unit = mm):

• PCB Dimension: 132(W) x 58(D) x 21(H)
