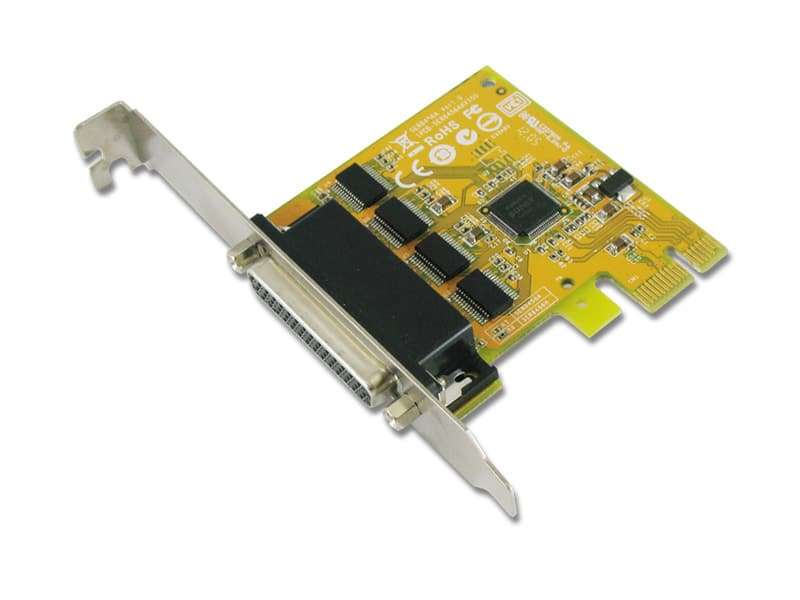

Sunix SER6456H 4-port RS-232 High Speed PCI Express Board

Experience Exceptional Connectivity with Sunix SER6456H 4-port RS-232 High Speed PCI Express Board

The Sunix SER6456H 4-port RS-232 High Speed PCI Express Board offers unparalleled value and affordability for all your serial communication needs. With advanced features and top-notch performance, this board is a must-have for anyone looking to enhance their connectivity options.

Specifications

General:

• Interface: RS-232
• Controller: SUNIX SUN2410 (16C950 UART Compatible)
• BUS: PCI Express Spec 2.0, Single-Lane (x1)
• IRQ & IO: Assigned by System

Serial Communication:

• Interface: RS-232
• No. of Port: 4-port
• FIFO: 128byte Hardware
• Baud rate: 50bps ~ 921.6Kbps
• Stop bit: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow Control: None, Xon/Xoff, RTS/CTS
• Protection: ±15KV ESD protection for each signal Human Body Model (HBM)
• PCB Connector: DB44 Female

Driver Support

Compatible with a wide range of operating systems including Windows, Linux, DOS, UNIX, and IBM OS/2, ensuring seamless integration with your existing setup.

Regulatory Approvals

Hardware certified with CE, FCC, VCCI, BSMI standards, and software approved by Microsoft WHQL for Windows systems.

Environment

Designed to operate in a temperature range of 0 to 60°C with humidity levels from 5 to 95% RH, making it suitable for diverse environments.

Dimension

Compact PCB dimension of 65 x 69 mm with a standard bracket size of 121 mm, ensuring a perfect fit in any system setup.

Get your hands on the Sunix SER6456H 4-port RS-232 High Speed PCI Express Board now before it's gone!
