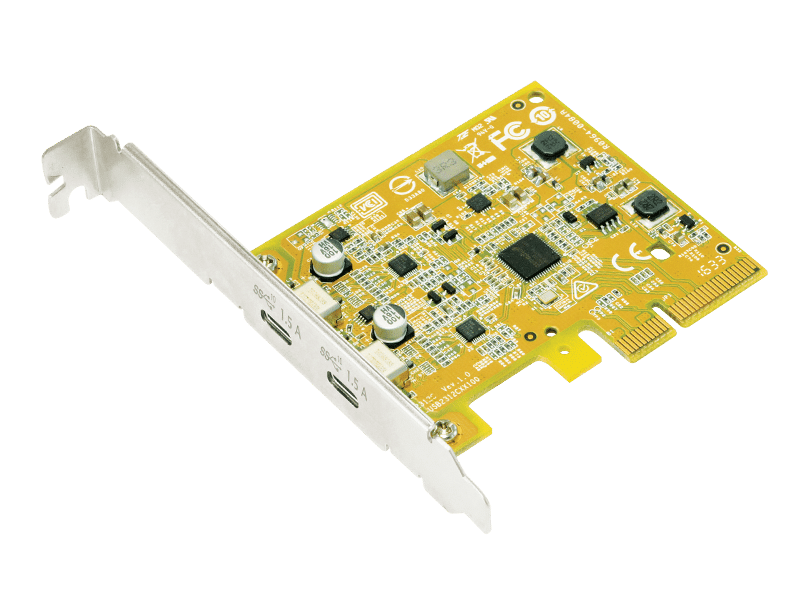

Sunix USB 3.1 Enhanced SuperSpeed+ 10G 2 ports PCI Express Host Card with Type-C Receptacle

Sunix USB 3.1 Enhanced SuperSpeed+ 10G 2 ports PCI Express Host Card with Type-C Receptacle

Upgrade your computer's USB capabilities with the Sunix USB 3.1 Enhanced SuperSpeed+ 10G 2 ports PCI Express Host Card. With lightning-fast data transfer speeds and advanced features, this host card is a must-have for any tech enthusiast.

Features and Benefits:

• SuperSpeed+ 10Gbps for instant file transfers
• Supports a wide range of USB standards for maximum compatibility
• Two USB ports for seamless connectivity
• USB Type-C port for future-proofing your setup
• Over current protection to keep your devices safe

Don't miss out on this amazing product! Limited availability due to high demand. Add the Sunix USB 3.1 Enhanced SuperSpeed+ 10G 2 ports PCI Express Host Card to your cart now and supercharge your USB experience.

Specs:

Hardware

• BUS: PCI Express Revision 2.0 & 3.0, Dual-Lane (x2)
• Controller: PCI Express USB 3.1 Host controller, Asmedia ASM3142
• USB Standard: eXtensible Host Controller Interface (xHCI) Rev1.1
• IRQ & IO: Assigned by System

USB Communication

• Interface: Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1
• Speed: SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)
• No. of Port: 2-port
• PCB Connector: USB 3.1 USB Type-C port (Downstream Facing Port)
• Protection: ±15KV IEC61000-4-2 Air Gap Discharge, ±4KV IEC61000-4-2 Contact Discharge

Power

• Source: PCI Express bus power
• Output Capacity: USB Type-C Port : +5VDC / 1.5A
• Power Consumption: 1.1 W @ 3.3V (board only without power output to USB device)

Driver Support

• Windows: Windows 7 (X86/X64), Windows 8.x / 10 (X86/X64)/ 11(Windows in-box driver)
• Linux: Linux 4.6 or later

Environment

• Operation Temperature: 0 to 60°C (32 to 140°F)
• Operation Humidity: 5 to 95% RH
• Storage Temperature: -20 to 70°C (-4 to 158°F)

Regulatory Approvals

• EMC: CE, FCC, VCCI, BSMI
• Green: RoHS, CRoHS, WEEE

Physical Characteristics

• PCB Dimension: 80 x 68.5 mm
• Bracket: Standard 120 mm (Low Profile 80mm)
• Bracket Space: 1
