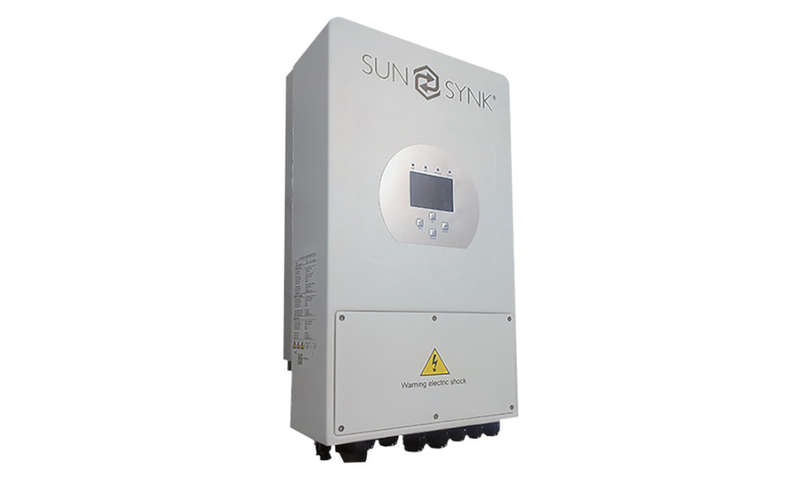

The Sunsynk Three-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those 'parity' targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
INTERACTIVE
Easy and simple to understand LCD display;
Supporting Wi-Fi or GSM monitoring;
Visual power flow screen;
Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker;
Smart settable 3-stage MPPT charging for optimised battery performance;
Auxiliary load function;
Parallel (coming soon) / multi-inverter function: grid-tied and off-grid
COMPATIBLE
Compatible with mains electrical grid voltages or power generators;
Compatible with wind turbines;
230V/400V Three-phase Pure Sinewave Inverter;
Self-consumption and feed-in to the grid;
Auto restart while AC is recovering;
Maximum charging/discharging current of 190A (8kW), 210A (10kW), and 240A (12kW);
DC and AC couple to retrofit existing solar system;
Compatible with a 48V low-voltage battery;
CONFIGURABLE
Fully programmable controller;
Programmable supply priority for battery or grid;
Programmable multiple operation modes: on-grid/off-grid & UPS;
Configurable battery charging current/voltage based on applications by LCD setting;
Configurable AC / solar / generator charger priority by LCD setting;
6 time periods for battery charging/discharging;
SECURE
Overload/over-temperature/short-circuit protection;
Smart battery charger design for optimised battery protection;
Limiting function installed to prevent excess power overflow to grid;
Isolation transformer design;
APPLICATIONS
Marine (vessel power management);
Power shedding (home/office/factory);
UPS (fuel-saving systems);
Remote locations with solar and wind generators;
Building sites;
Telecommunication
