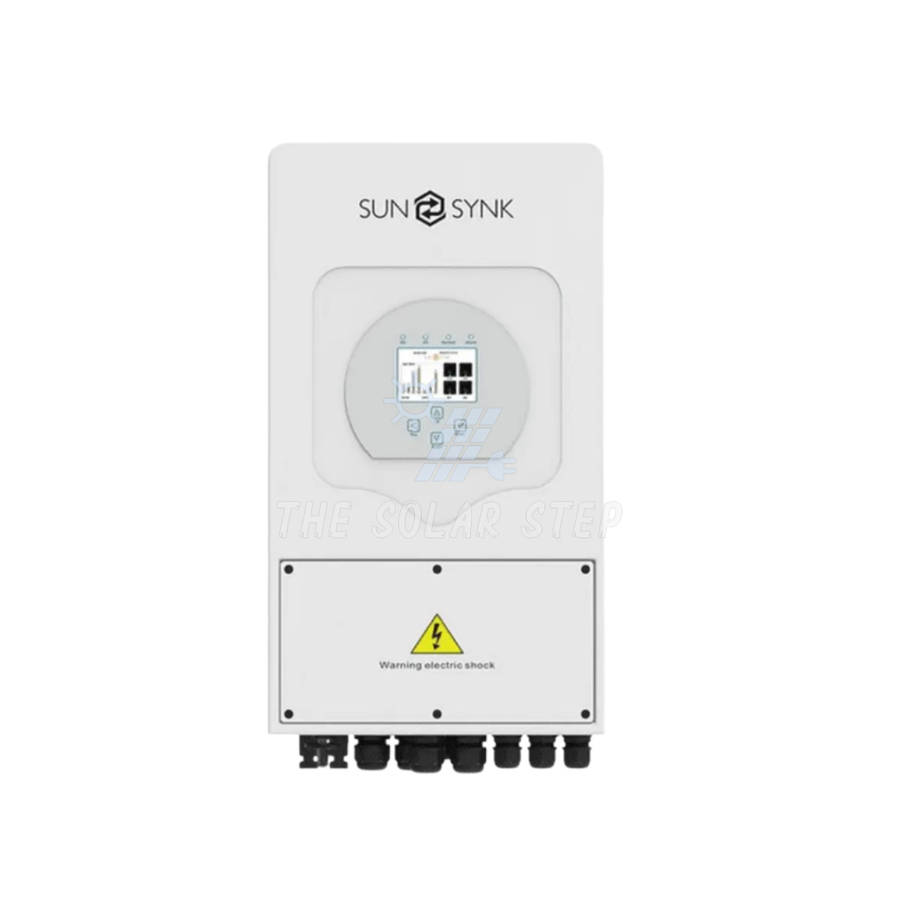

Sunsynk 16KVA Hybrid Inverter Single Phase LV

We have taken the Sunsynk Hybrid Inverter to the highest level. Our new Sunsynk MAX is the most powerful low-voltage inverter in the world, achieving a maximum output power of 16kW and battery charge current of 275A.
This power management tool allows the user to hit those 'parity' targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.

SINGLE PHASE 16kW SUNSYNK Hybrid Inverter Pure Sine Wave, MPPT, Wi-Fi, and Parallel Functionality

Description:

• Wi-Fi and GSM Monitoring: Supports remote monitoring via Wi-Fi or GSM, allowing for real-time tracking and system adjustments from anywhere.
• Visual Power Flow Screen: Provides clear insights into energy flow and system performance, making it easy to track solar energy generation and consumption.
• Parallel and Multi-Inverter Function: Capable of parallel connection with up to 16 units, supporting both grid-tied and off-grid configurations for large-scale power systems.
• Broad Compatibility: Works with main electrical grid voltages and power generators, enabling seamless integration with existing power sources.
• Self-Consumption and Grid Feed-In: Supports both self-consumption and feed-in to the grid for sustainable energy management.
• Automatic Restart and Earth Bond Feature: Ensures system stability with auto-restart functionality and earth bonding via relay for safety.
• Fully Programmable: Customizable supply priority for battery or grid, with adjustable charging parameters and operation modes (on-grid, off-grid, UPS).
• Enhanced Protection: Includes overload, over-temperature, and short-circuit protection, along with smart battery charger design for optimal battery life.
• Power Limiting Function: Prevents excess power from flowing into the grid, ensuring system efficiency and safety.
• Touch LCD Display: A colourful touch screen with IP65 protection for durability and ease of use in harsh conditions.
• Flexible Integration: DC-coupling and AC-coupling support for retrofitting existing solar systems and scaling your setup.
• High Charging/Discharging Current: Max charging current of 275A and max discharging current of 300A for robust energy storage solutions.
• Energy Storage from Diesel Generators: Capable of storing energy from a diesel generator for backup power.

Battery Input Data:

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range: 43V 60V
• Max Charging Current: 275A
• Max Discharging Current: 300A
• Charging Curve: 3 stages / Equalisation
• External Temperature Sensor: Yes
• Li-Ion Battery Charging Strategy: Self-adaptation to BMS

PV String Input Data:

• Max DC Input Power: 18,000W
• Max PV Input Voltage: 450V
• MPPT Range: 250V 450V
• Start-up Voltage: 150V
• PV Input Current: 22A + 22A
• Max PV Isc: 26A + 26A
• MPPT / Strings per MPPT: 3/2

AC Output Data:

• Max On-Grid AC Power: 16,000W
• Max Off-Grid AC Power: 13,000W
• Peak Power (Off-Grid): 2x rated power for 10 seconds
• AC Output Rated Current: 65A
• Max AC Current: 70A
• Max Continuous AC Passthrough: 200A
• Frequency Range: 45Hz 55Hz
• Voltage Range: 211V 264V
• Grid Type: Single-phase
• Current Harmonic Distortion: THD <3% (linear load <1.5%)

Efficiency:

• Max Efficiency: 97.6%
• Euro Efficiency: 97%
• MPPT Efficiency: 99.9%

Protection:

• Includes integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Overcurrent Protection, and Surge Protection.

Certifications & Standards:

• Compliant with VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05.
• Safety EMC / Standard: IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3.

General Data:

• Operating Temperature Range: -25°C to 55°C
• Cooling: Fan
• Noise: <30dB
• Communication with BMS: RS485, CAN
• Weight: 34.5kg
• Dimensions (mm): 422W x 702H x 281D
• Protection Degree: IP65
• Installation Style: Wall-mounted

Warranty:

• 5-Year Warranty
• Requires installation by a qualified electrical wireman or master electrician.
• Installation must comply with SANS 10142 standards, with a valid Certificate of Compliance (COC) required for warranty validation.
