Sunsynk 5.5KVA Hybrid Inverter + 5.32kWh Sunsynk Lithium Battery / Off-Grid & Grid-Tied Solar System + WIFI
Product Description:

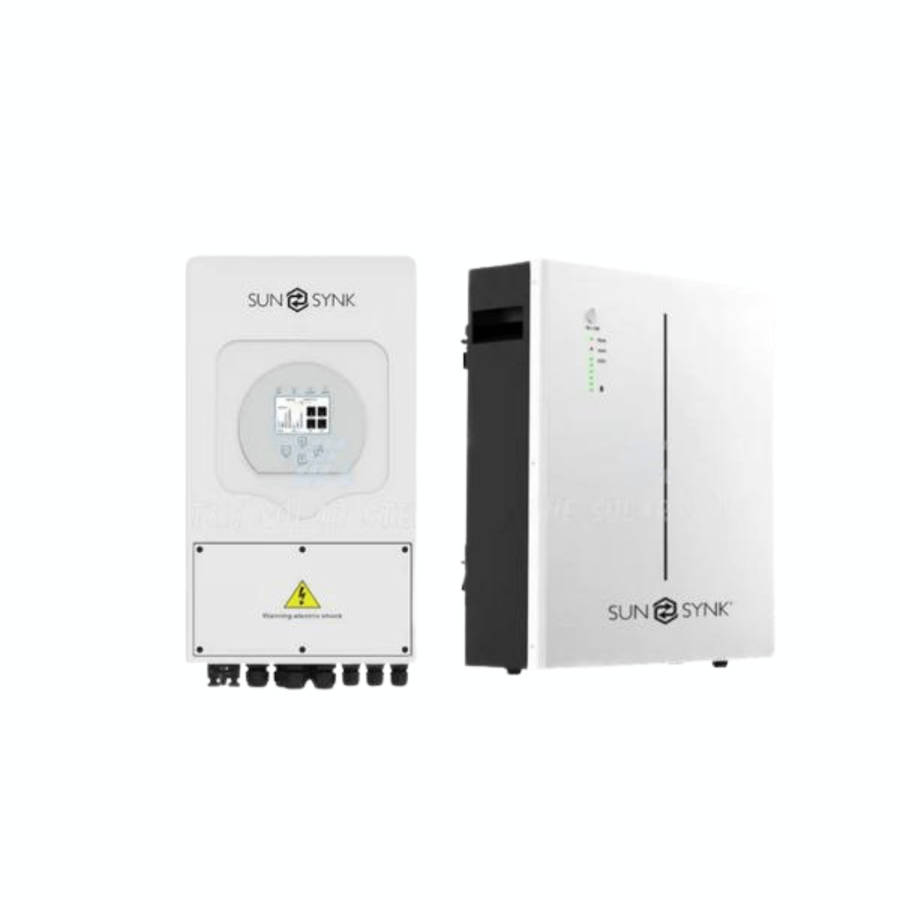

The Sunsynk 5.5KVA Hybrid Inverter, paired with a 5.32kWh Sunsynk Lithium Battery, provides a high-performance solar energy storage solution for residential and commercial applications. With advanced MPPT technology, a pure sine wave output, and seamless grid or off-grid operation, this system ensures maximum efficiency, energy savings, and uninterrupted power supply.
The Wi-Fi dongle allows for remote system monitoring, providing real-time insights into power consumption and energy generation. Whether you're looking for backup power, self-consumption optimization, or off-grid independence, this system is an ideal energy solution.
Key Features:
Sunsynk 5.5KVA Hybrid Inverter Features:
- Pure Sine Wave Output Stable power for sensitive electronics.
- Dual MPPT (Maximum Power Point Tracking) Technology Ensures 97.6% efficiency for optimized solar power generation.
- High Power Factor 1.0 Maximizes energy conversion.
- Battery Compatibility:
- Supports Lithium Iron Phosphate (LiFePO4) and Lead-Acid batteries.
- Auto Battery Management System (BMS) communication via RS485/CAN.
- Multiple Operating Modes:
- Grid-Tied Mode Self-consumption with excess power feed-in.
- Off-Grid Mode Operates independently using solar and battery storage.
- Backup Power Mode Instant switch-over during outages (<5ms transition time).
- Expandable Capacity:
- Parallel up to 16 inverters for higher power needs.
- Smart LCD Touchscreen & Remote Monitoring:
- Wi-Fi & GSM connectivity for real-time system monitoring via app.
- Visual Power Flow Display for easy management.
- Integrated Safety Protections:
- Anti-islanding, over-temperature, short circuit, and surge protection.
- Built-in lightning protection.
- Residual Current Monitoring for electrical safety.
- Wide PV Input Range:
- Max PV Input Power: 6,500W
- PV Voltage Range: 100V - 500V DC
- MPPT Tracking Range: 125V - 425V DC
Technical Specifications:
Sunsynk 5.5KVA Hybrid Inverter:
- Product Type: Hybrid Inverter
- IP Rating: IP65 (Weatherproof)
- Nominal Power Output: 5500W / 5.5KVA
- Battery Voltage Range: 40V - 60V
- Max Battery Charge/Discharge Current: 120A
- AC Input Voltage: 220V - 240V AC
- AC Input Frequency: 50/60Hz
- Surge Power: 2X Rated Power (10 seconds)
- Efficiency: Max 97.6% | Euro Efficiency 96.5%
- Cooling System: Smart Fan-Cooling
- Noise Level: <30dB
- Parallel Connection: Yes (Up to 16 Units)
- Weight: 20.5 kg
- Dimensions: 580 x 330 x 208 mm
- Warranty: 10 Years
Sunsynk 5.32kWh Lithium Battery Specifications:
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Total Energy Storage: 5.32kWh
- Depth of Discharge (DOD): 100%
- Max Continuous Charge/Discharge Rate: 50A (Recommended), 100A (Max)
- Cycle Life: 6,000+ cycles at 80% DOD
- Parallel Expansion: Supports up to 15 batteries for increased storage.
- Inverter Compatibility: Works with Sunsynk, Victron, Kodak (Axpert), Deye, LuxPower, Growatt.
- Installation Options: Wall-mounted or Rack-mounted
- Remote Monitoring: Optional Hubble Cloudlink for real-time battery performance tracking.
- Battery Warranty: 10 Years
What's Included in the Package:
- 1x Sunsynk 5.5KVA Hybrid Inverter (Pure Sine Wave, MPPT 100A, Parallel Ready)
- 1x Sunsynk 5.32kWh Lithium Battery (51.2V 100Ah LiFePO4)
- 1x Wi-Fi Dongle for Remote Monitoring
- 1x User Manual
- 1x Set of Battery Cables & Mounts
- 1x Ethernet Communication Cable
- 1x Wall Mount Bracket
- 1x Warranty Card
Installation & Warranty Guidelines:
- Installation Requirement: Must be installed by a qualified electrician.
- Certificate of Compliance (COC): Required for warranty validation.
- Warranty Policy:
- Inverter Warranty: 10 Years
- Battery Warranty: 10 Years (Covers 80% capacity or 6,000 cycles, whichever comes first).
- Installation Warranty: COC and professional installation proof required.
- Warranty Claims:
- Must include installation photos, valid COC, and proof of installation by a qualified professional.
- Improper use, electrical surges, or damage due to poor installation will void the warranty.
Ideal Applications:
Home & Business Solar Systems Ideal for grid-tied, off-grid, and hybrid energy setups.
Load Shedding & Backup Power Provides uninterrupted power during outages.
Renewable Energy Storage Optimizes solar energy utilization for cost savings.
Smart Energy Management Monitor & optimize energy use for maximum efficiency.
Why Choose This Solar...
