LUXPOWER SNA5000 WPV 5KW 48V

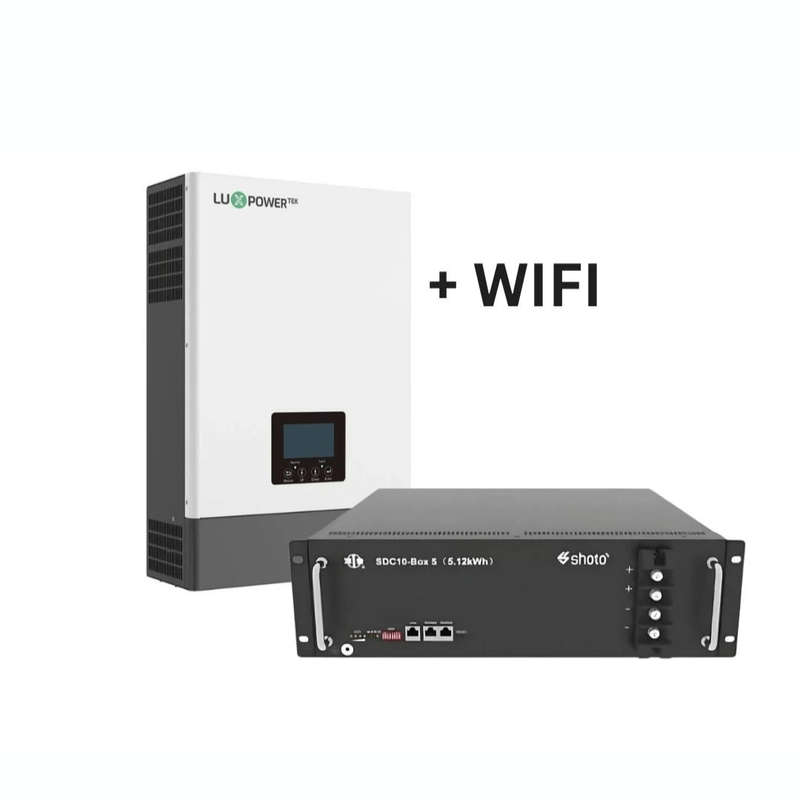

LuxPower 5KVA / 5000W Hybrid Inverter + 5.12kWh SHOTO Lithium Battery / Smart Off-Grid & Backup Solar Power Solution
Product Description:
The LuxPower SNA5000 WPV 5KW Hybrid Inverter, paired with the 5.12kWh SHOTO Lithium Battery, delivers a highly efficient and intelligent off-grid power solution for homes and small businesses. Designed with dual MPPT controllers, advanced battery management, and Wi-Fi connectivity, this system ensures maximum solar energy utilization, seamless energy backup, and long-term reliability.
Ideal for off-grid, hybrid, and backup power applications, this system provides clean energy, reduces electricity costs, and enhances energy independence.
Key Features:
LuxPower 5KVA / 5000W Hybrid Inverter (SNA5000 WPV):
- Pure Sine Wave Output: Provides stable and clean power for sensitive electronics.
- Dual MPPT (Maximum Power Point Tracking) Controllers:
- Wide PV Input Voltage Range: 100V - 385V DC
- Max PV Input Power: 6,000W
- Max PV Open Circuit Voltage: 480V DC
- MPPT Efficiency: >98%
- Battery-Optional Design:
- Operates with or without a battery, offering flexibility and cost savings.
- Smart Energy Management:
- Supports solar, battery, and grid power modes for optimized energy use.
- Independent generator interface for additional power backup.
- Scalable System:
- Parallel up to 10 inverters for increased power output.
- Remote Monitoring & Control:
- Wi-Fi & GPRS connectivity for real-time tracking via a mobile app.
- Flexible Power Supply:
- Supports unbalanced three-phase operation.
- Broad Battery Compatibility:
- Compatible with leading lithium battery brands including BYD, Dyness, Hubble, PylonTech, Shoto, and more.
Technical Specifications:
LuxPower 5KVA / 5000W Hybrid Inverter (SNA5000 WPV):
- Inverter Type: Hybrid Off-Grid
- Rated Power Output: 5,000W / 5KVA
- Surge Power: 10,000VA
- Waveform: Pure Sine Wave
- Efficiency (Peak): >98%
- Battery Voltage: 48V DC
- Battery Compatibility: Lithium-Ion & Lead-Acid
- AC Voltage Regulation: 230V / 240V AC
- AC Input Voltage Range: 110V - 280V AC
- AC Charger Current: 60A
- Transfer Time: 10ms
- Solar Charge Controller:
- Max PV Input Power: 6,000W
- MPPT Voltage Range: 100V - 385V DC
- Max PV Open Circuit Voltage: 480V DC
- Max Solar Charge Current: 100A
- Parallel Capability: Supports up to 10 units
- Monitoring & Communication: Wi-Fi & GPRS included
- Protection Rating: IP20 (Indoor Use Only)
- Size: 330 x 504 x 135 mm
- Weight: 14 kg
- Warranty: 2 Years
SHOTO 5.12kWh Lithium Battery (51.2V 100Ah) Features:
- High-Capacity Energy Storage: 5.12kWh capacity with 90% depth of discharge (DOD).
- Long Cycle Life: 5,000+ charge cycles for 10+ years lifespan.
- Scalable System: Can be expanded with up to 16 battery units.
- Rack-Mount & Wall-Mount Design: Space-saving installation options.
- Smart Battery Management System (BMS):
- Monitors voltage, current, and temperature for safety.
- Prevents overcharging, over-discharging, and overheating.
- Broad Compatibility: Works with Growatt, Goodwe, Victron, Deye, LuxPower, and more.
Technical Specifications:
SHOTO 5.12kWh Lithium Battery (51.2V 100Ah):
- Battery Type: Lithium-Ion (LiFePO4)
- Model Number : (SDC10-Box 5)
- Nominal Voltage: 51.2V
- Total Energy Capacity: 5.12kWh
- Usable Capacity: 4.6kWh
- Depth of Discharge (DOD): 90%
- Cycle Life: 5,000 cycles @ 25°C
- Nominal Capacity: 100Ah
- Charge Voltage: 57.6V
- Discharge Voltage: 48V
- Max Continuous Charge/Discharge Current: 75A
- Operating Temperature: -20°C to 55°C
- Installation: Rack-Mount or Wall-Mount
- Communication Protocol: CAN / RS485
- Battery Warranty: 5 Years
What's Included in the Package:
1x LuxPower 5KVA / 5000W Hybrid Inverter (SNA5000 WPV) | Wi-Fi Enabled
1x SHOTO 5.12kWh Lithium Battery (51.2V 100Ah LiFePO4) | Rack-Mount
1x User Manual
1x Ethernet Communication Cable
Installation & Warranty Guidelines:
- Installation Requirement: Must be installed by a qualified electrician.
- Certificate of Compliance (COC): Required for warranty validation.
- Warranty Policy:
- Inverter Warranty: 2 Years
- Battery Warranty: 5 Years
- Installation Warranty: COC and professional installation proof required.
- Warranty Claims:
