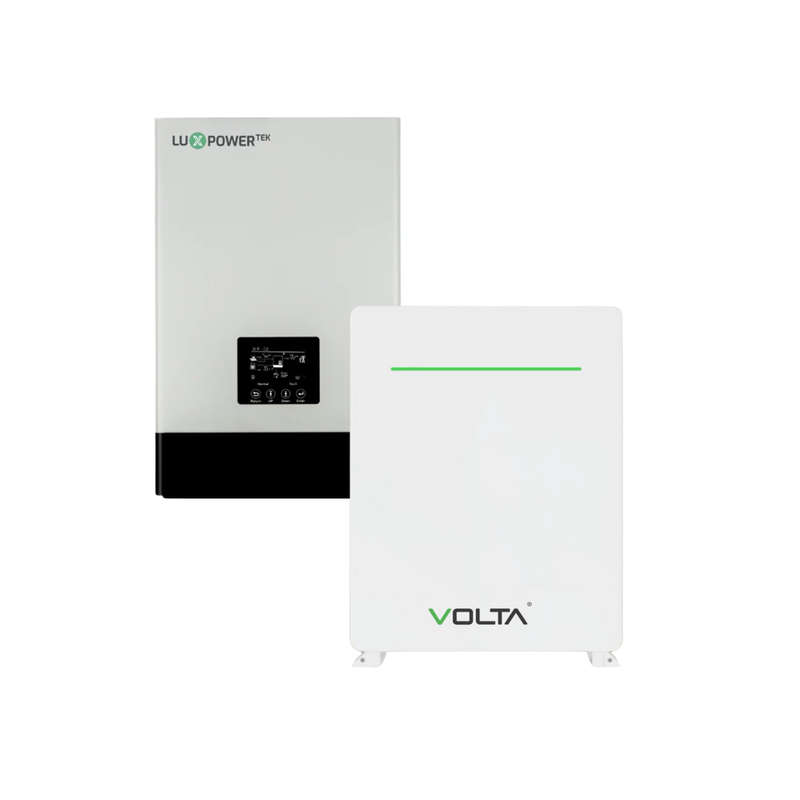

5KVA LuxPower Hybrid Inverter Load Shedding Combo + Volta Stage 1 NEW GEN Lithium Battery (5.12kWh)

LUXPOWER SNA5000 WPV 5KW 48V

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPTs and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries, and full off-site monitoring via an App it is hard to beat this unit at this price point.

Key Features

• Intelligent Off-Grid & Hybrid modes
• PV and AC Power can power loads simultaneously
• 2 x MPPTs with a wide input voltage range.
• BMS communication to most leading brands of Batteries (See List)
• Free monitoring via the app and remote upgrades.
• Single or unbalanced three phase
• Parallel up to 10 units.
• Independent generator interface.

PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A

What's in the box

1 x Inverter
1 x User Manual
1 x Wifi Dongle
