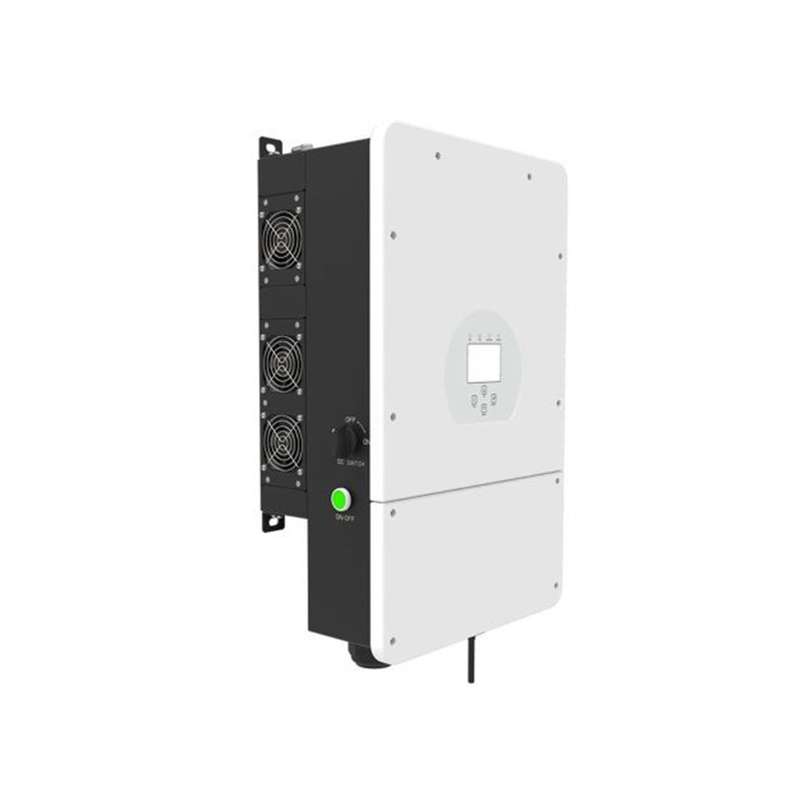

Sunsynk 8kW Single Phase Hybrid PV inverter
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
SS-1P-08K-H-LV
Bob Shop ID
603928314
The Sunsynk 8kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65 is a highly efficient power management tool that allows the user to hit those 'parity' targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.
Product Features
- Self consumption & feed-in to the grid
- Auto re-start while AC is recovering
- Programmable supply priority for battery or grid
- Programmable multiple operation modes; on-grid / off-grid & UPS
- Configurable battery charging current / voltage based on applications by LCD setting
- Configurable AC / solar / generator charger priority by LCD setting
- Compatible with mains voltage or generator power
- Overload / over-temperature / short-circuit protection
- Smart battery charger designer optimised battery protection
- Limit-function installed to prevent excess power overflow to grid
- Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
- Smart settable 3-stage MPPT charging for optimised battery performance
- Time of use function
- Smart load function
- Important: All solar products and power systems, and their components must be installed by appropriately qualified Installers to make sure that the products are safely installed and meet Local regulations and compliance
- 5 Years
Safety Features
- Grid Regulation: UL1741 ,IEEE1547, VDE-ARN 4105, VDE0126
- Safety Regulation: IEC62109-1&2, IEC62040-1
- Electromagnetic Compatibility (EMC) Standard: EN61000-6-1, EN61000-6-3, FCC 15 class B
Technical Specifications
| Colour: | White |
| Mounting Type: | Wall Mounted |
| Protection Type: |
|
| Battery Type: | Lead-acid or Li-Ion |
| Battery Voltage Range: | 40V-60V |
| Cooling Method: | Fan |
| Waveform: | Pure Sine Wave Inverter |
| Noise Level: | <30dB |
| Input Current (Max.): | 18A+9A |
| Grid Type: | Single Phase |
| Peak Power (Off Grid): | 2 Times Rated Power for 10 Seconds |
| Power Point Tracking Range (MPPT) (Max.): | 125V-425V |
| Start-up Voltage: | 150V |
| AC Current (Max.): | 33A |
| AC Output Power (Max.): | 8000W |
| DC Input Power (Max.): | 8800W |
| Charge Current (Max.): | 190A |
| Discharge Current (Max.): | 190A |
| Charging Curve: | 3-Stage / Equalisation |
| Frequency Range: | 50, 230 Vac (Single Phase) |
| PV Input Voltage (Max.): | 500V |
| Height: | 680mm |
| Width: | 420mm |
| Depth: | 233mm |
| Operating Temperature: | -25~60C, >45 Derating |
| IP Rating: | IP65 |
| Weight: | 32kg |
Technical Documents
| Technical Document: | Download |
